millisKanner

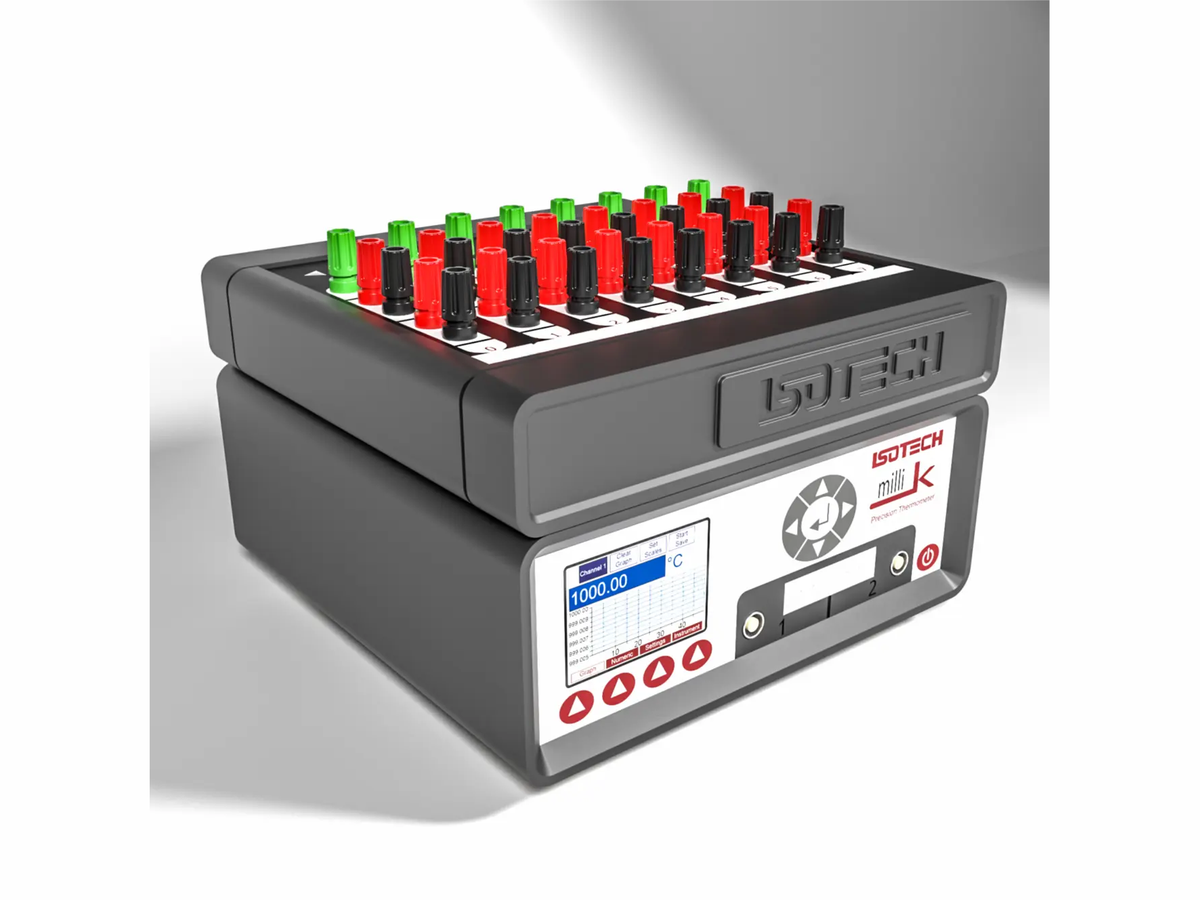

millisKanner Channel Expander

The millisKanner channel expander has eight input channels, and each can be configured individually for SPRT, PRT, Thermistor or Thermocouple input. This gives ultimate flexibility with no need for separate devices for resistance or thermocouple inputs. A maximum of four devices can be added to the milliK providing 33 sensor inputs as well as the 4 – 20mA Process Input.

Request a quoteDownload the datasheet

millisKanner Channel Expander

Features

  • Expands milliK to a maximum of 33 Channels
  • Supports SPRTs, PRTs, Thermistors and Thermocouples
  • Universal Inputs for Flexibility
millisKanner Channel Expander

Description

With no loss of accuracy and total flexibility a milliK system can be configured to suit a wide range of reference thermometers and units under test.

This adaptable system saves on cost with no need for separate dedicated expansion modules and the flexibility maximises the usefulness of each channel. A solid state design avoids mechanical relays and provides high reliability. The inputs are isolated with galvanic isolation between the contacts and the PSU and also from the control circuitry which allows for better measurements and lower noise.

The millisKanner is controlled from the milliK with plug and play operation. For use as a standalone switch for PRTs, the device has UP / DOWN touch buttons or can be operated via RS232. The temperature of the input thermocouple connectors can be read directly over RS232 to facilitate reference junction compensation.

millisKanner Channel Expander

Specifications

ModelmillisKanner
Channels8
Channel IndicationLED
Input ConnectorsTerminal Post, accepts 4mm plugs, spades and bare wires. Miniature Thermocouple Sockets
ControlAutomatic: Plug and Play from the milliK. Manual: UP / DOWN buttons or RS232.
Max devices per milliK4
Power5V DC at 100mA (mains power supply provided)
CJC SensorDigital
Size255 x 255 x 80mm
Weight2.3kg
