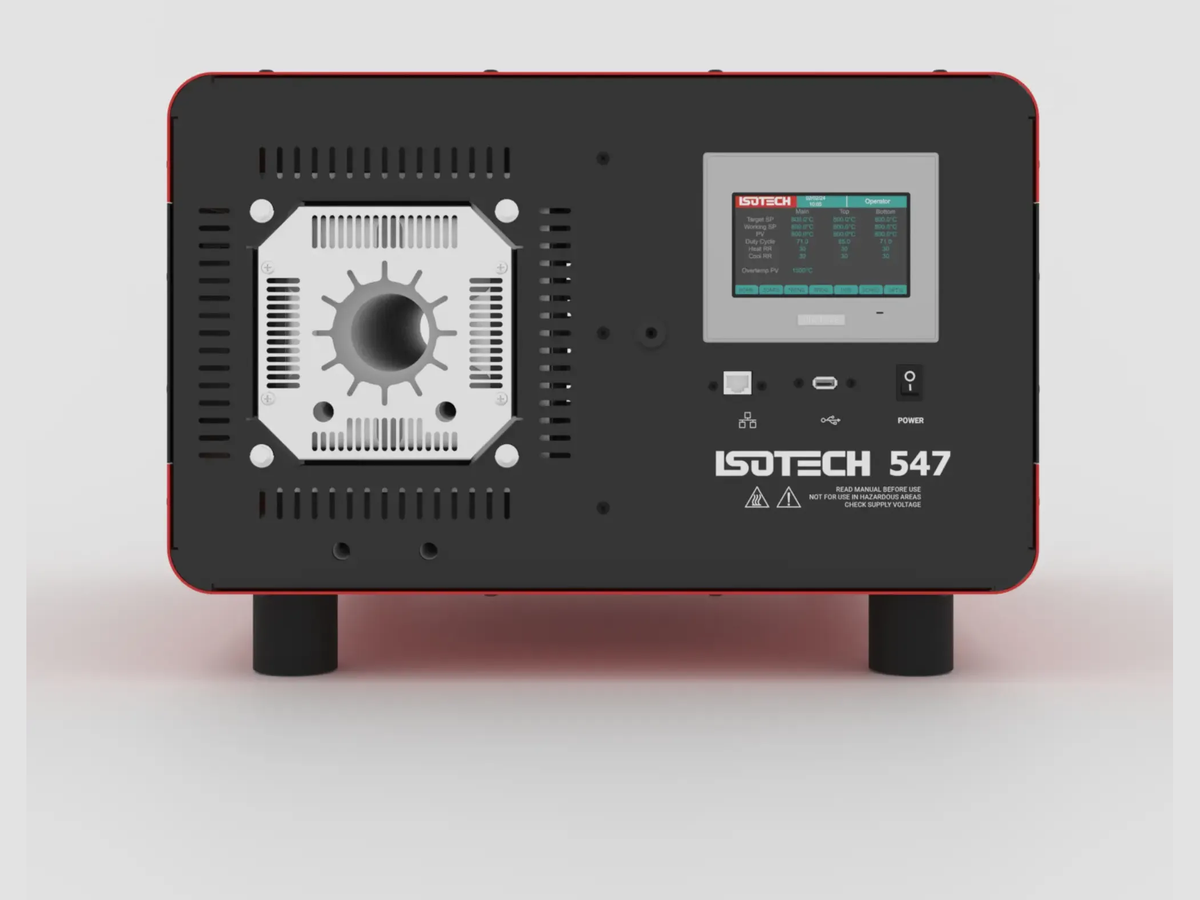

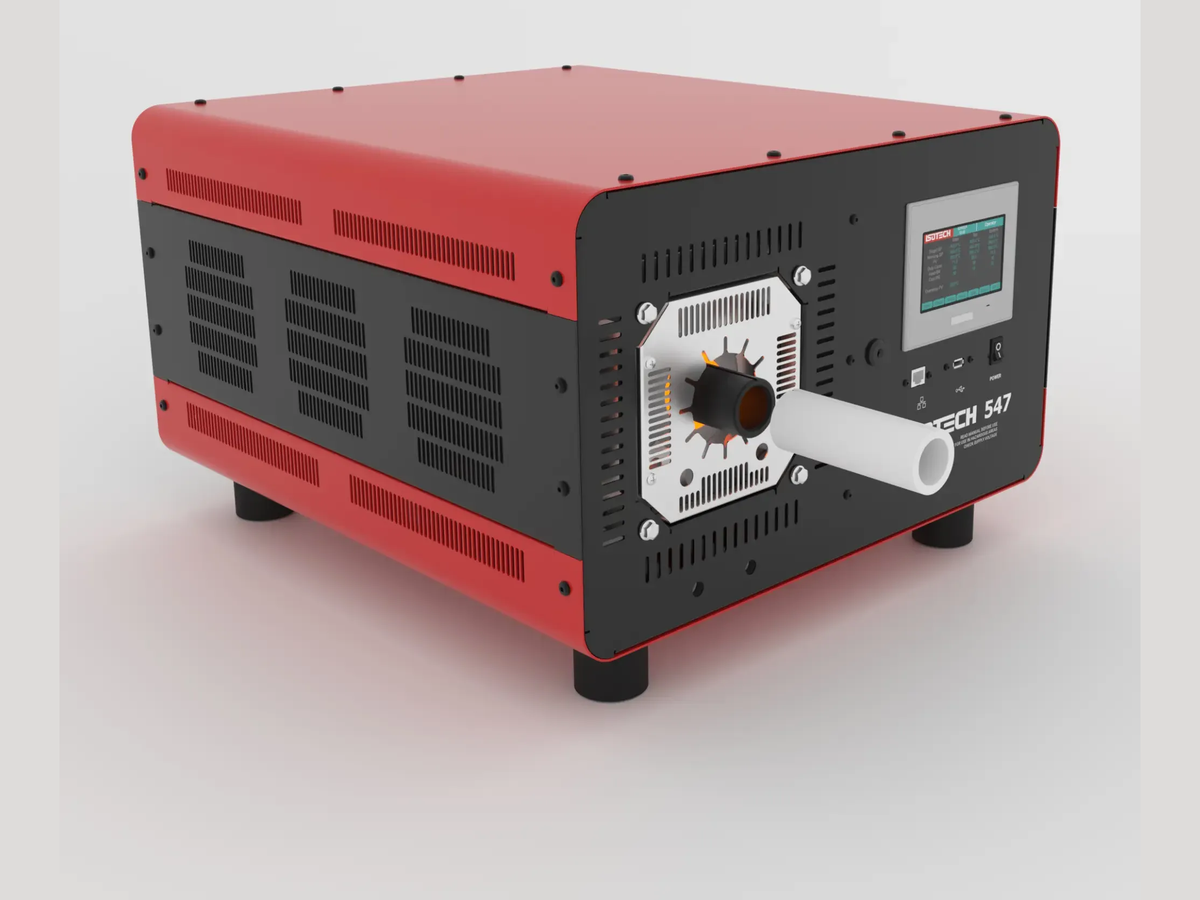

Model-547
The Model 547 is the professional solution for accurate and contamination-free temperature calibration, designed to meet the needs of professionals in a wide range of industries, from industrial to laboratory.
Request a quoteDownload the datasheet

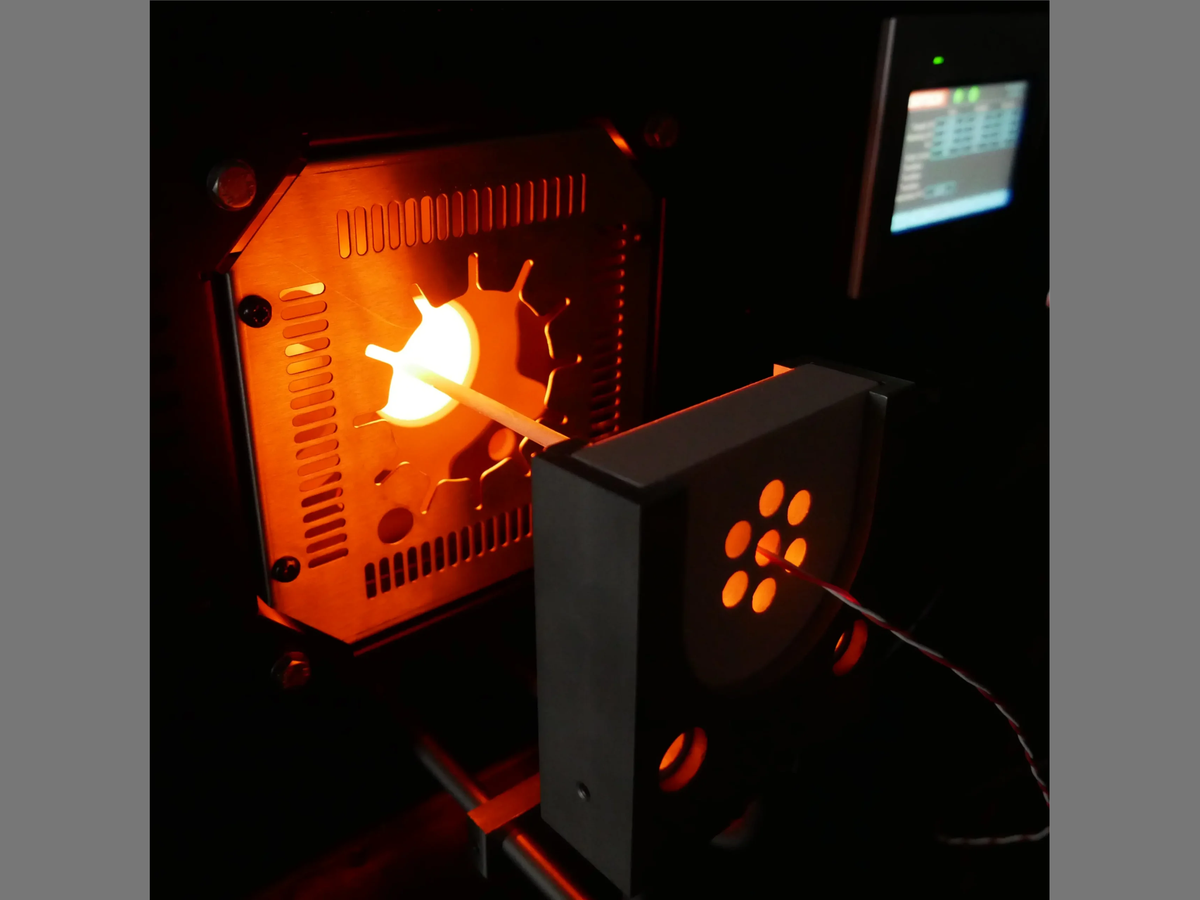

The furnace can be equipped with a blackbody target, making it ideal for calibrating infrared thermometers. For even higher accuracy, it also offers the option to use blackbody cells, ensuring ultimate precision and lowest calibration uncertainties.
The Model 547 is also designed to accommodate open-ended multi-zone thermocouples, making it an ideal choice for calibration professionals in the semiconductor industry.
With a focus on safety and convenience, the Model 547 has been “designed by metrologists for metrologists”.
When used in combination with our companion products for checking thermocouple homogeneity, laboratory standard thermocouples, cold/reference junction equipment, and software to automate thermocouple calibration, it is a complete solution for all your temperature calibration needs, that no other company can rival.
Invest in the Model 547 Thermocouple Calibration Furnace and experience the ultimate in temperature calibration accuracy and convenience.
| Temperature Range | 200°C to 1200°C |
|---|---|
| Stability | <0.08°C over the entire range |
| Uniformity | @200°C ±0.2°C @1200°C ±0.3°C |
| Display | 4.5″ Touchscreen |
| Display Resolution | 0.01° |
| Heating Time | 50°C to 1200°C in 45 minutes |
| Cooling Time | 1200°C to 300°C in 90 minutes |
| Calibration Volume | 46mm diameter x 450mm deep |
| Minimum Immersion | 180mm |
| Interface | Ethernet, Serial (RS485), USB Host |
| Power | 3kW |
| Dimensions | W510mm x H325mm x L660mm |
| Weight | 55kg |
