QuickCal-Blackbody
When the high accuracy of the Gemini R is not necessary this product offers a cost effective solution for the calibration and testing of infrared thermometers. The QuickCal Blackbody is ideal for rapid and portable checking of infrared thermometers.
Request a quoteDownload the datasheet

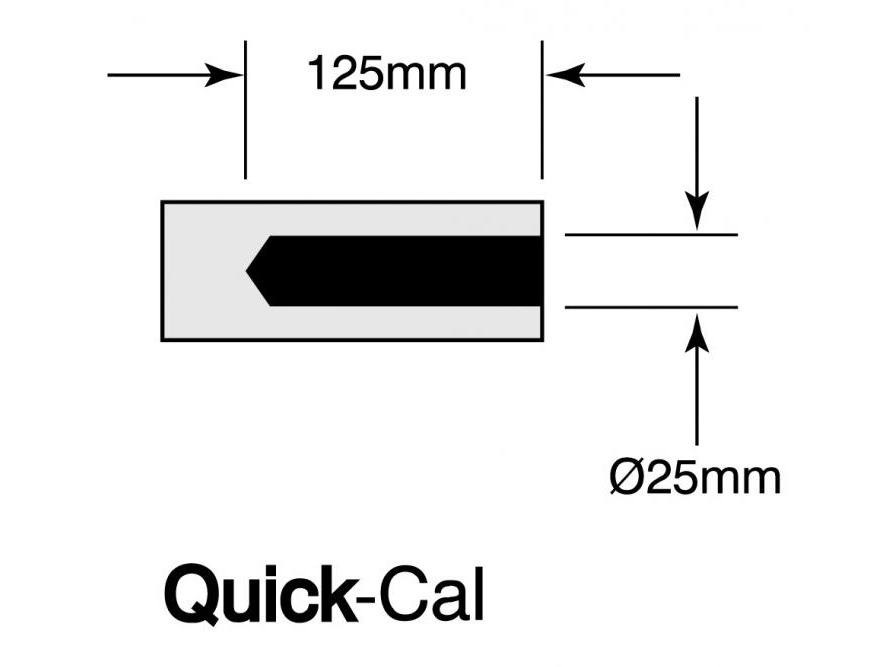

It features a cylindrical cavity 25mm diameter by 115mm deep.
| Model | 550 QuickCal BlackBody |
|---|---|
| Temperature Range | 30°C to 350°C |
| Display Resolution | 0.1°C |
| Heating Time | 9 minutes |
| Target Size | 25 x 115mm Cavity with end cone |
| Stability | ±0.2°C |
| Accuracy | ±0.5 |
| Emissivity | >0.99 Surface coating 0.98 – cavity gives overall emissivity of >0.99 |
| Power | 300 Watts |
| Voltage | 100-130 or 208-240 VAC |
| Dimensions | Height 65mm Width 152mm Depth 175mm |
| Weight | 1.5kg |
| How to order | Model 550-02 BlackBody Source. Please state voltage required. Optional Carry Case 931-22-71 |
