T&D RTR500BM
Data Collector for RTR-500/RTR500B Series Loggers with 4G Cellular Phone Network Capability
RTR-576
T&D RTR-576
For Measuring Temperature, Humidity and CO2 up to 9,999 ppm
Request a quoteDownload the datasheet
Overview
The RTR-500/RTR500B series allows you to mix and match an array of wireless radio communication loggers with various Base Units or Data Collectors to meet your needs. Logged data can be automatically sent via network or mobile communication to be saved in cloud storage or to a specified location.
The RTR-576 is a three-channel data logger designed to measure and record CO2 concentration, temperature and humidity.
External devices such as buzzers and lights can also be connected to the contact output terminal to provide instant on-site notification, signaling when ventilation may be needed.
Note: The RTR500B series is the new generation model of our RTR-500 series.
Main Specifications
| Channels | CO2 Concentration, Temperature, Humidity |
|---|---|
| Range | CO2: 0 to 9999ppm Temperature: 0 to 55°C Humidity: 10 to 95%RH |
| Comm Interfaces | USB, Short Range Wireless |
Special Features

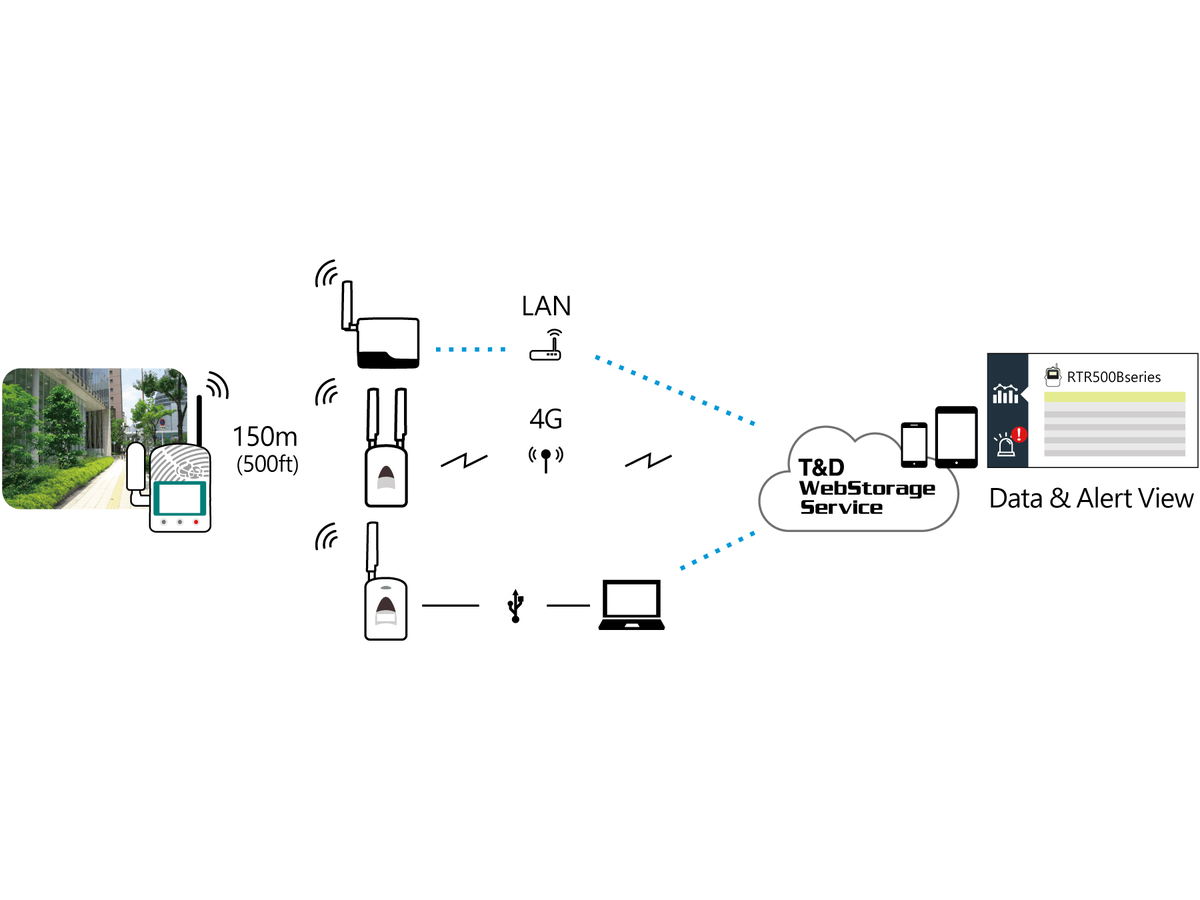

RTR-576 loggers have a wireless radio communication range with compatible base units of up to 150m (500ft).
Data can be transmitted from a logger to a base unit and then automatically uploaded to cloud storage or saved to a specified location. Data can also be checked on your PC screen or on site with one of our compatible data collectors.
RTR-576 is useful for measuring and managing CO2 in rooms and buildings from both near and far.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
RTR-576
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
