TR-76Ui-S
T&D TR-76Ui-S
For Measuring Temperature, Humidity and CO2 up to 9,999 ppm
Request a quoteDownload the datasheet
Overview
The TR-7Ui series, with a simple USB connection to your PC, provides an easy way to make detailed settings and download data. Basic settings and REC start/stop can also be done by simply pressing buttons on the units themselves.
TR-76Ui-S is a three-channel data logger designed to measure and record CO2 concentration, plus high precision temperature and humidity. The CO2 warning notification feature helps provide a standard for timing ventilation in classrooms and buildings. This model comes with a high precision temperature-humidity sensor, making it perfect for situations where strict temperature and humidity control is required in addition to the CO2 measurement.
Main Specifications
| Channels | CO2 Concentration, Temperature, Humidity |
|---|---|
| Range | CO2: 0 to 9999ppm Temperature: -25 to 70°C Humidity: 0 to 99%RH (-20°C~) |
| Comm Interfaces | USB, Serial |
Special Features

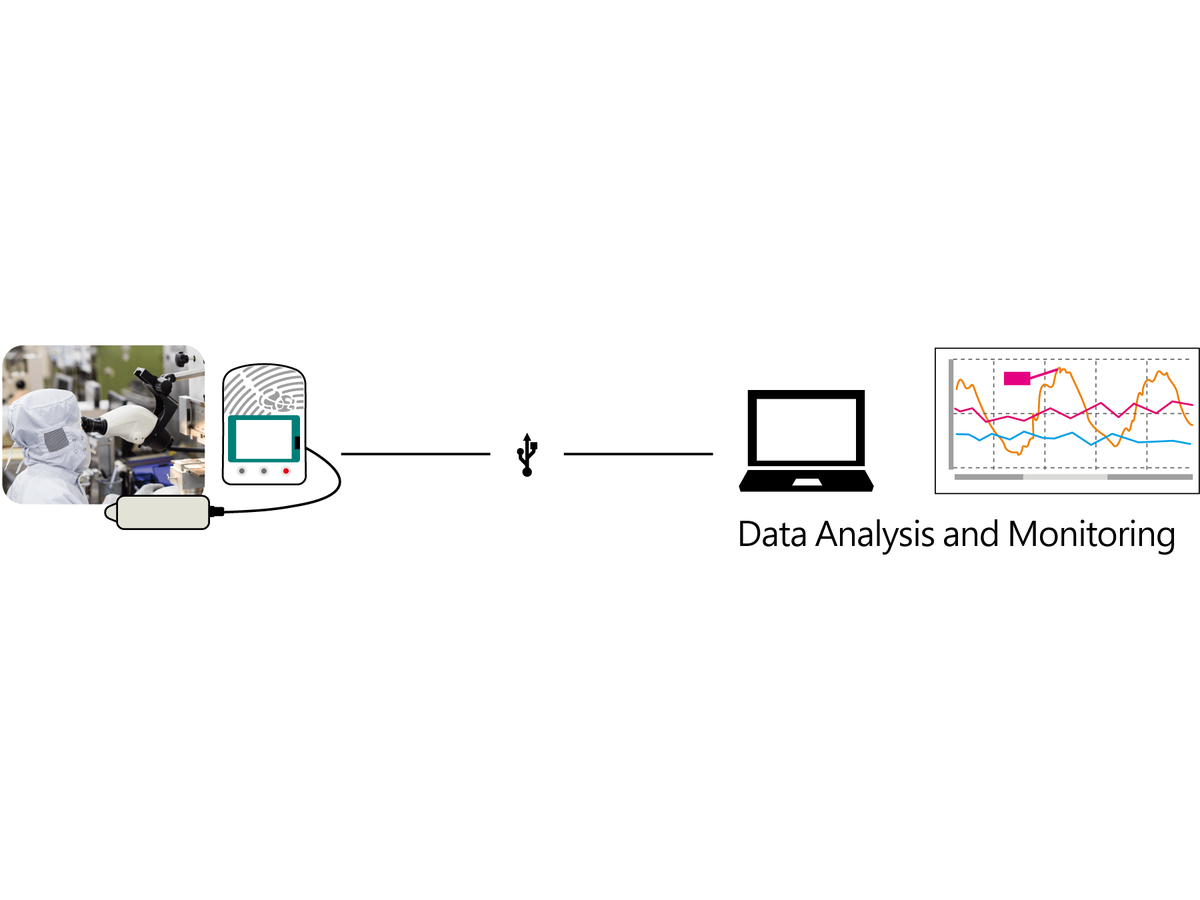

Simply place the TR-76Ui-S at the measurement site after starting recording. Recorded data can then be downloaded by connecting the logger to a PC with a USB cable and using our Windows software “CO2 Recorder for Windows”. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”. By connecting a logger to your PC, it is also possible to monitor current readings using our Windows software. External devices such as buzzers and lights can also be connected to provide instant on-site notification.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-76Ui-S
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments
High Precision Temperature-Humidity Sensor (SHA-3151)
This sensor is supplied with the '-S' type models and also available as an option for the regular type (without -S) models.
Temperature-Humidity Sensor (THA-3001)
This is our standard temperature-humidity sensor for use with the TR72A2, TR-72nw, RTR-574, RTR-576, TR-74Ui, and TR-76Ui.
Temperature-Humidity Sensor (THA-3151)
This is our standard temperature-humidity sensor for use with the TR72A2/72A2-S, TR-72nw/72nw-S, RTR-574/574-S, RTR-576/576-S, TR-74Ui/74Ui-S, and…
Alarm Connection Cable (AC0101)
Optional cable for connecting external devices such as buzzers and lights to provide alarm notification.
USB Mini-B Cable (US-15C)
This cable is supplied with the data loggers and data collection devices that are USB-compatible.
Serial Communication Cable (TR-07C)
This is an optional serial communication cable (Mini Serial ⇔ D-sub 9pin) for connecting a serial device to a PC.
