SPMK214L Oil

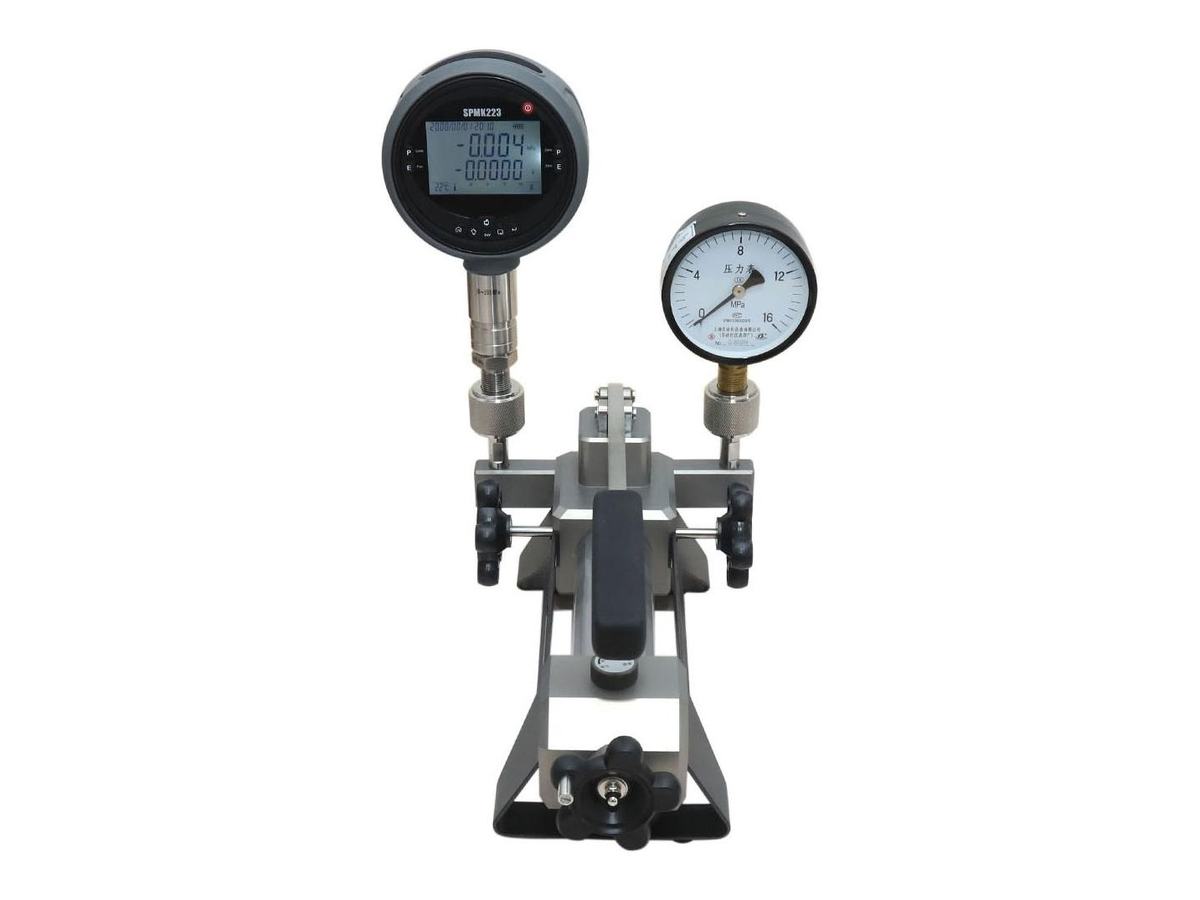

SPMK214L Hydraulic Pressure Test Pump (SPMK214L Oil)

SPMK214L pressure test pump is hydraulic pressure generator with hydraulic oil or distilled water media. It can generate pressure of 0 to 700bar (0-10,000psi). It is portable design which is suitable for both field and lab use. The special design structure makes it a perfect equipment for calibrating pressure gauges, pressure transmitters, pressure sensors, and other pressure instruments.

Request a quote

SPMK214L Hydraulic Pressure Test Pump (SPMK214L Oil)

Feature

  • Pressure range 0 to 700bar, 0-10,000psi
  • Perfect pressure stability
  • Hand tight quick connector, easy to connect the under tested device
  • Special structure makes easy to reach high pressure
  • Fine adjustment screw of 0.1kPa
  • Hard oxidation treatment, wear-resistant, scratch-resistant.
SPMK214L Hydraulic Pressure Test Pump (SPMK214L Oil)

Specifications

Mediahydraulic oil or distilled water
Pressure range0- 700bar, 0-10,000psi
ConnectionM20*1.5, 1/4NPT, 1/4BSP, 1/2NPT, 1/2BSP Female. Please confirm 1 or 2 thread type from above.
Dimension384*198*180mm
Weight4.7kg
AccessoriesUser’s manual, Plugs, O rings
PackageCarton box + Thicken foam (Aluminum or Trolley case are optional and cost extra)
ShippingBy air express
