SPMK990Y Oil 600bar

SPMK990Y Oil media Pressure Comparator (SPMK990Y Oil 600bar)

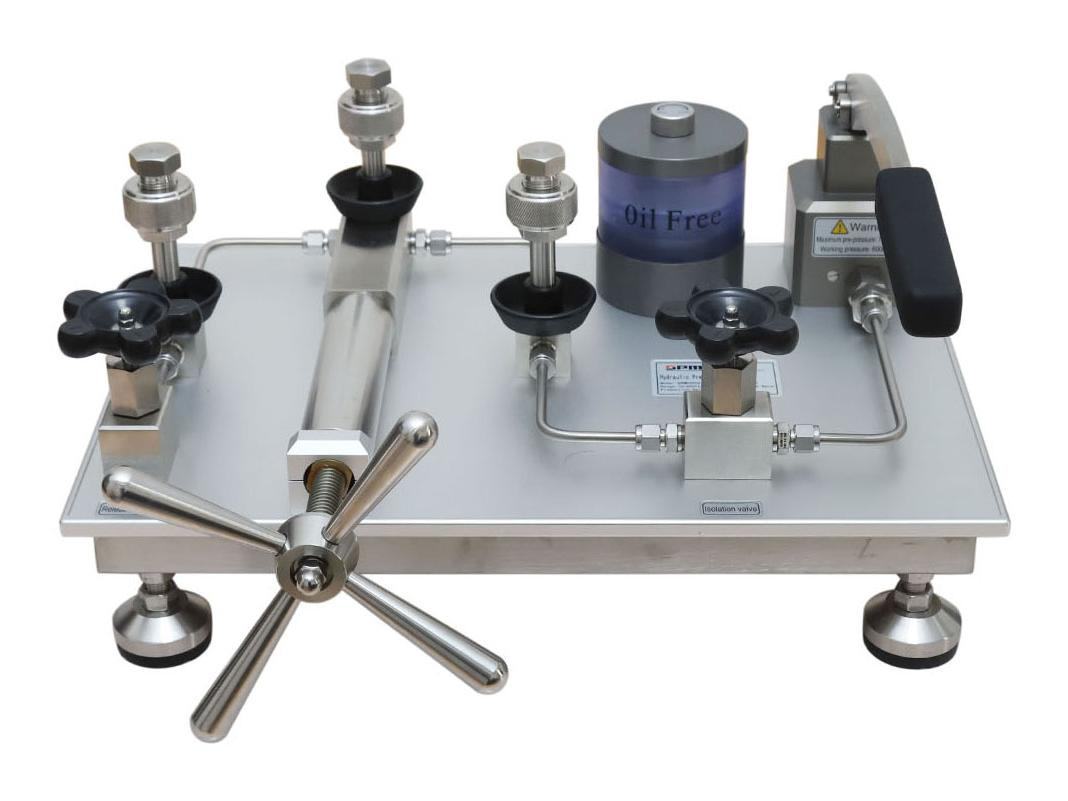

SPMK990Y pressure source is oil media desk-top pressure generator. The pressure range is 0-600bar (0-9,000psi) and 0-1000bar (0-15,000psi) two types. With special structure design, it can generate pressure smoothly and easily to 600bar and 1000bar. It is a perfect pressure calibration comparator for lab use.

Request a quote

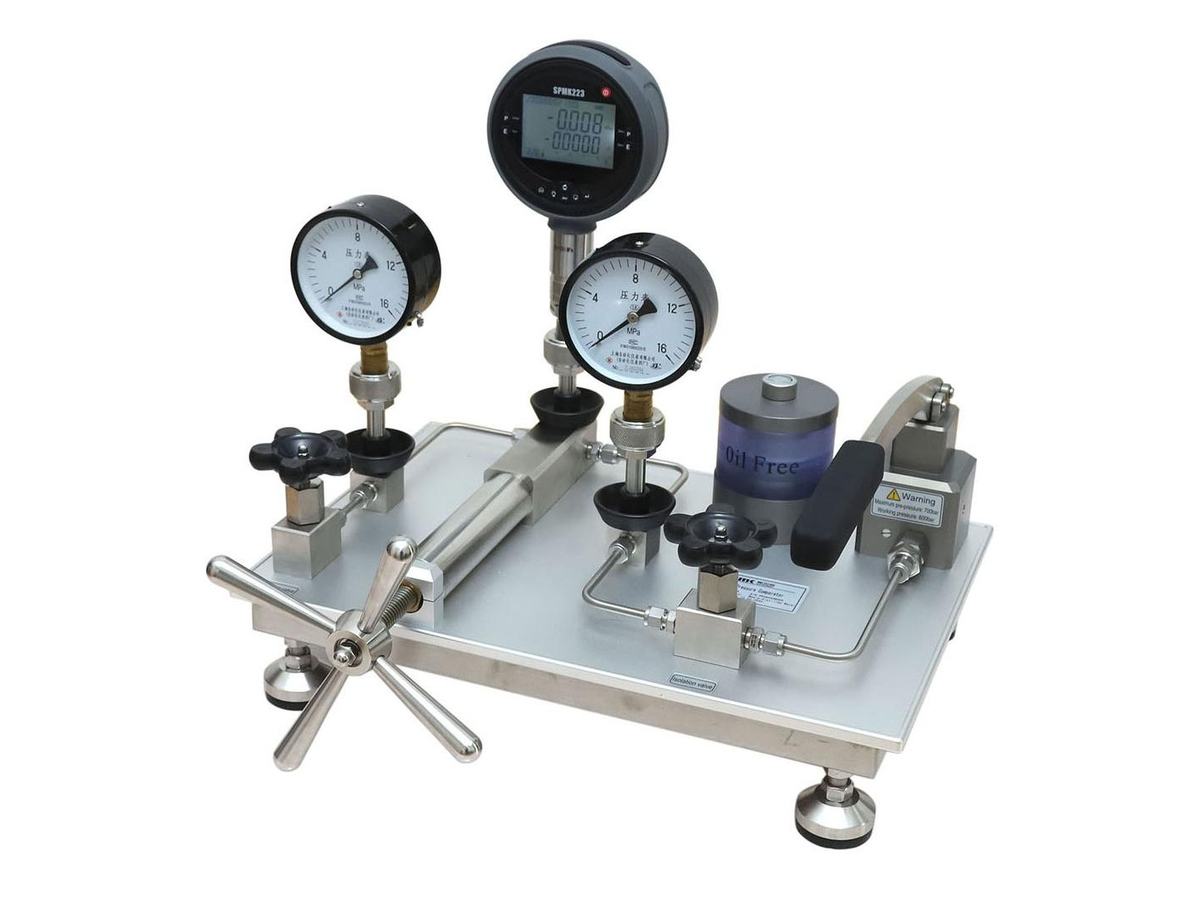

SPMK990Y Oil media Pressure Comparator (SPMK990Y Oil 600bar)
  • Oil media type, Perfect pressure stability

Feature

  • 0-600bar (0-9,000psi); 0-1000bar (0-15,000psi) two types
  • Water media type, Perfect pressure stability
  • Hand tight quick connector, easy to connect the under tested device
  • Special structure design makes easy to reach high pressure
  • Fine adjustment of 0.1kPa
SPMK990Y Oil media Pressure Comparator (SPMK990Y Oil 600bar)

Specifications

MediaHydraulic Oil
Pressure range0-600bar (0-9000psi); 0-1000bar (0-15,000psi) two types
ConnectionM20*1.5, 1/4NPT, 1/4BSP, 1/2NPT, 1/2BSP Female. Please confirm 1 or 2 thread type from above.
Dimension455*380*250mm
Weight17kg
AccessoriesUser’s manual, Plugs, O rings
PackageCarton box + Thicken foam (Trolley case are optional and cost extra)
ShippingBy air express
