SRIC-4
LogTag SRIC-4
Single-use Data Logger - ideal for cost-effective monitoring of temperature sensitive goods
Request a quoteDownload the datasheet

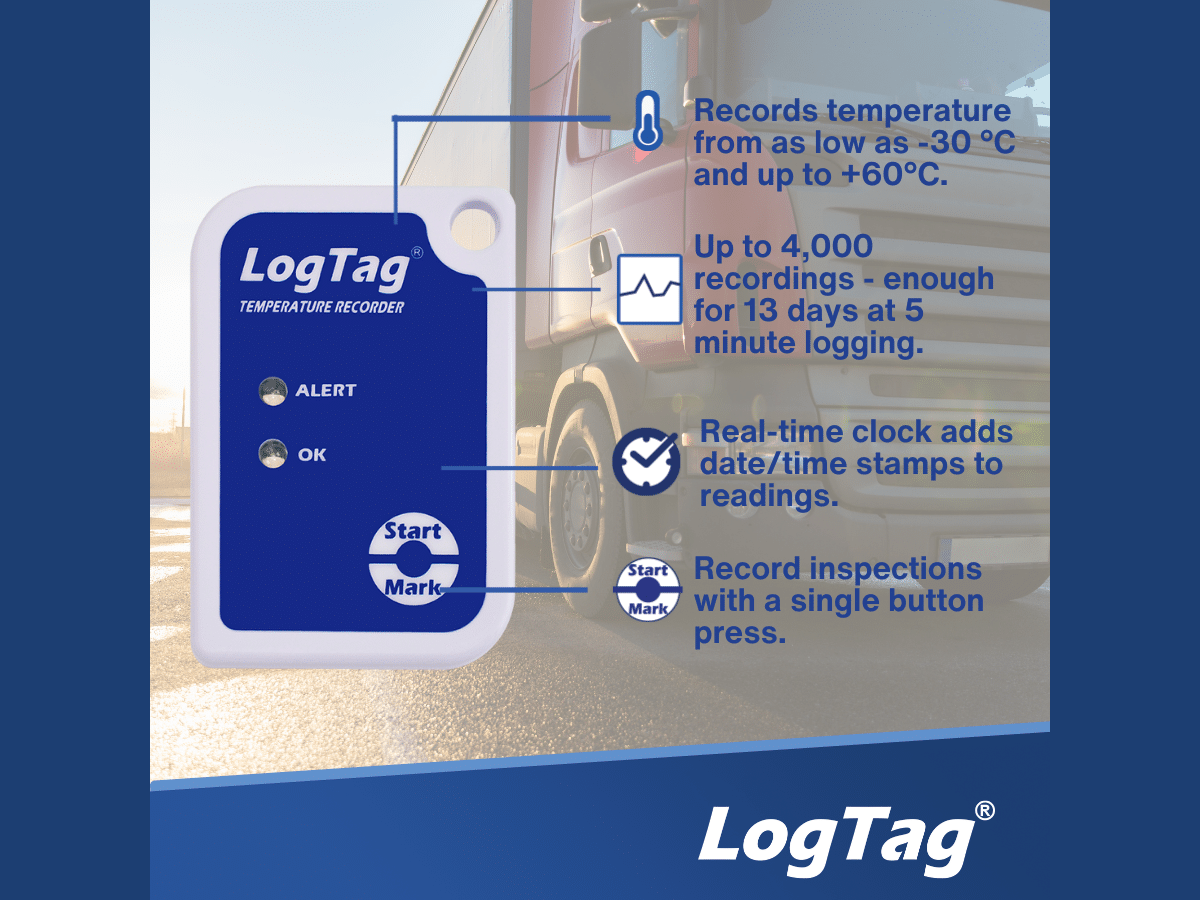

Highlights
- Single trip Logger for short or long haul transportation applications.
- Alert & OK indicators Indicate if readings are outside of preset limits and if still recording.
- Rapid Download! Takes only seconds to download recordings
- Thin flat case Fits easily into packaging and thin enough to be easily mailed “letter rate”.
- Real time clock Records time & temperature simultaneously
- 4000 reading memory capacity with up to 20 months battery life
Overview

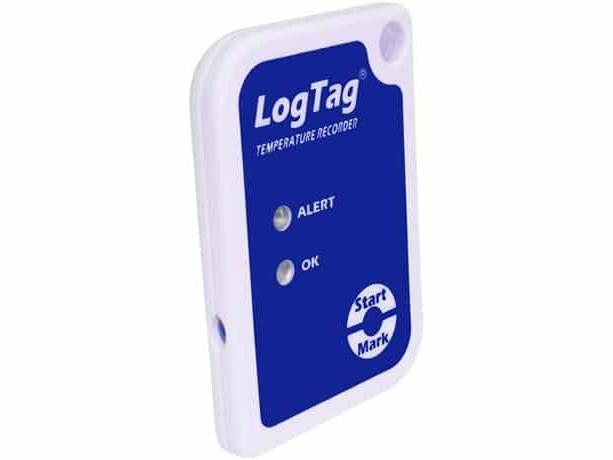

The LogTag® SRIC-4 is a single-trip temperature recorder developed specifically for monitoring temperature sensitive products in both short haul and long-distance transportation applications.
The SRIC-4 combines all the features of an advanced temperature recorder with a 4000 log memory and a 90 days operating life in a robust and inexpensive package.

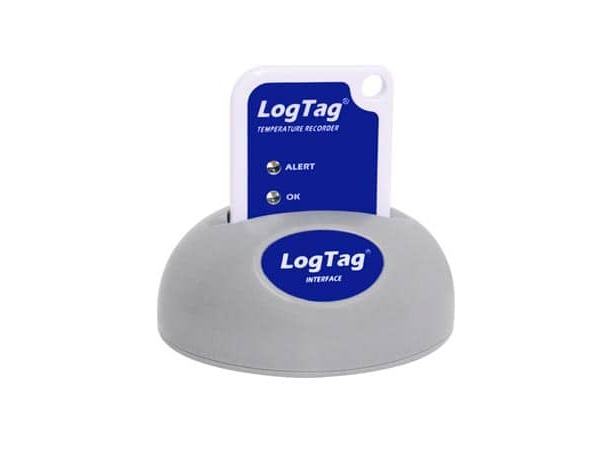

When used in conjunction with the standard LogTag® Interface Cradle and the freely available LogTag® Analyzer operating software, the SRIC-4 can be easily configured by the user for a wide range of recording and alert conditions.
Readings are downloaded using LogTag® Analyzer which provides facilities for displaying data in chart, table or statistical formats and allows electronic archiving, export or transmission of the data in support of sophisticated data management systems.
Red Alert indicator provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured.
Green OK indicator provides immediate visual confirmation, without access to a PC, that the unit is operating.
The SRIC-4 incorporates an external temperature sensor uniquely arranged in a recess in the case. This arrangement protects the sensor from physical damage while retaining the faster response time normally associated with remote sensors.
Please note: An interface is required for configuration and reporting
Technical Data
| Temperature Sensor Measurement range | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Recorder Operating Temperature Range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Storage Temperature Range | 0 °C to +40 °C (32 °F to +104 °F) |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C (±0.9 °F) for -5 °C to +30 °C (23 °F to 86 °F). ±0.8 °C (±1.5 °F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | <0.1 °C/F LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag® |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 3968 temperature readings. 13 days @ 5min logging, 41 days @ 15min logging |
| Sampling Interval | Configurable from 1 minute to 18 hours |
| Logging Start Options | Push button start or specific date & time |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Alarms | 1 configurable upper and 1 configurable lower alarms |
| Download Time | Typically less than 4 seconds for full memory (3968 readings), depending on computer or readout device used |
| Environmental | IP65 (roughly equivalent to NEMA 4) |
| Power source | CR2032 3V LiMnO2 Battery (Fixed) |
| Battery Life | 20 months storage life, followed by 90 days normal use |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | Interface Cradle |
| Software | LogTag® Analyzer |
| Size | 77 mm(H) x 54.5 mm(W) x 8.6 mm(T) |
| Weight | 28 g |
| Case Material | Polycarbonate |
| EN12830 | EN 12830:2018 - Temperature recorders for the transport, storage and distribution of temperature sensitive goods - Test, performance, suitability |
Gallery
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
SRIC-4
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments
Protective Enclosure

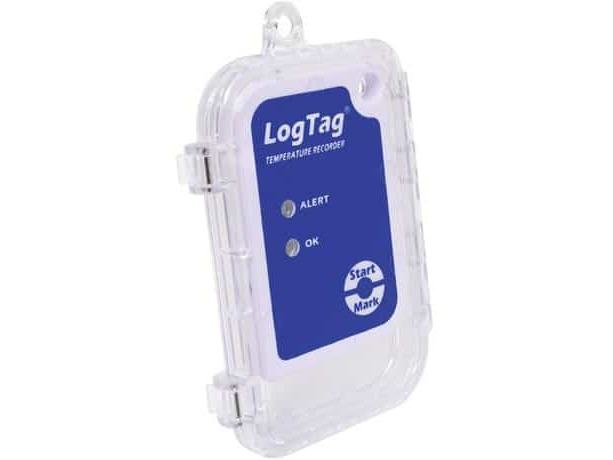

The LogTag® Protective Enclosure is specifically designed for LogTag® recorder products to allow use in harsh environments.
