TR-51i
T&D TR-51i
Compact Waterproof Temperature Logger with Internal Sensor and On-Face LED Alarm
Request a quoteDownload the datasheet
Overview
With dimensions of 62 x 47 x 19mm (2.4 x 1.8 x 0.75in) TR-5i series loggers may be small, but they are built to last. In addition to the LCD on the front panel, the built-in alarm LED makes warnings easily visible.
The TR-51i with its internal sensor has a IP67 waterproof rating and can be used in environments from -40℃ to 80℃. It is suitable for using in measuring actual temperatures of items stored in refrigerators and freezers.
Main Specifications
| Channels | Temperature 1ch (Internal) |
|---|---|
| Range | -40 to 80°C |
| Comm Interfaces | Optical |
| Waterproof Capacity | IP67 |
Special Features
Its IP67 waterproof rating makes it suitable for temperature monitoring in various storage and transportation environments.

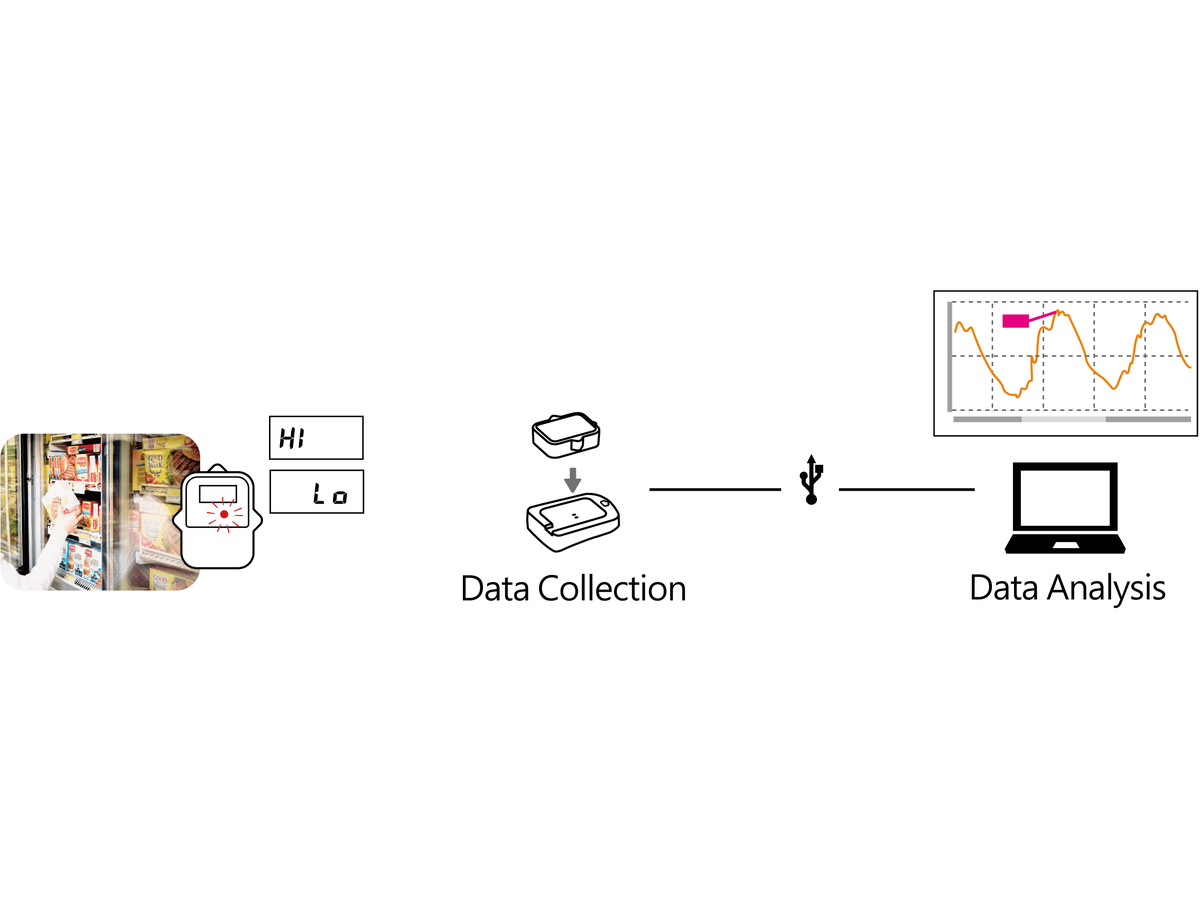

By connecting our Communication Port TR-50U2 to your PC via a USB cable, you can easily download data by placing the logger face down on the port. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software "T&D Graph".
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-51i
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
