TR-71nw
T&D TR-71nw
2-channel IoT temperature logger connectible via Ethernet and USB!
Request a quoteDownload the datasheet
Overview
The TR-71nw is a temperature logger with two available sensor connections and can measure from -60 to 155℃. The wide range of optional sensors provides increased measurement flexibility.
Functional buttons on the device allow you to make settings and start/stop recording. Use the Ethernet connection to auto-upload data to the cloud for anytime anywhere access and get warning notices. Connect to a PC with a USB cable to download recorded data, create reports and make setting changes.
It is perfect for not only home and office but research labs, hospitals and large institutions.
Main Specifications
| Channels | Temperature 2ch |
|---|---|
| Range | -40 to 110°C |
| Comm Interfaces | Wired LAN, USB |
| Waterproof Capacity | None |
Special Features

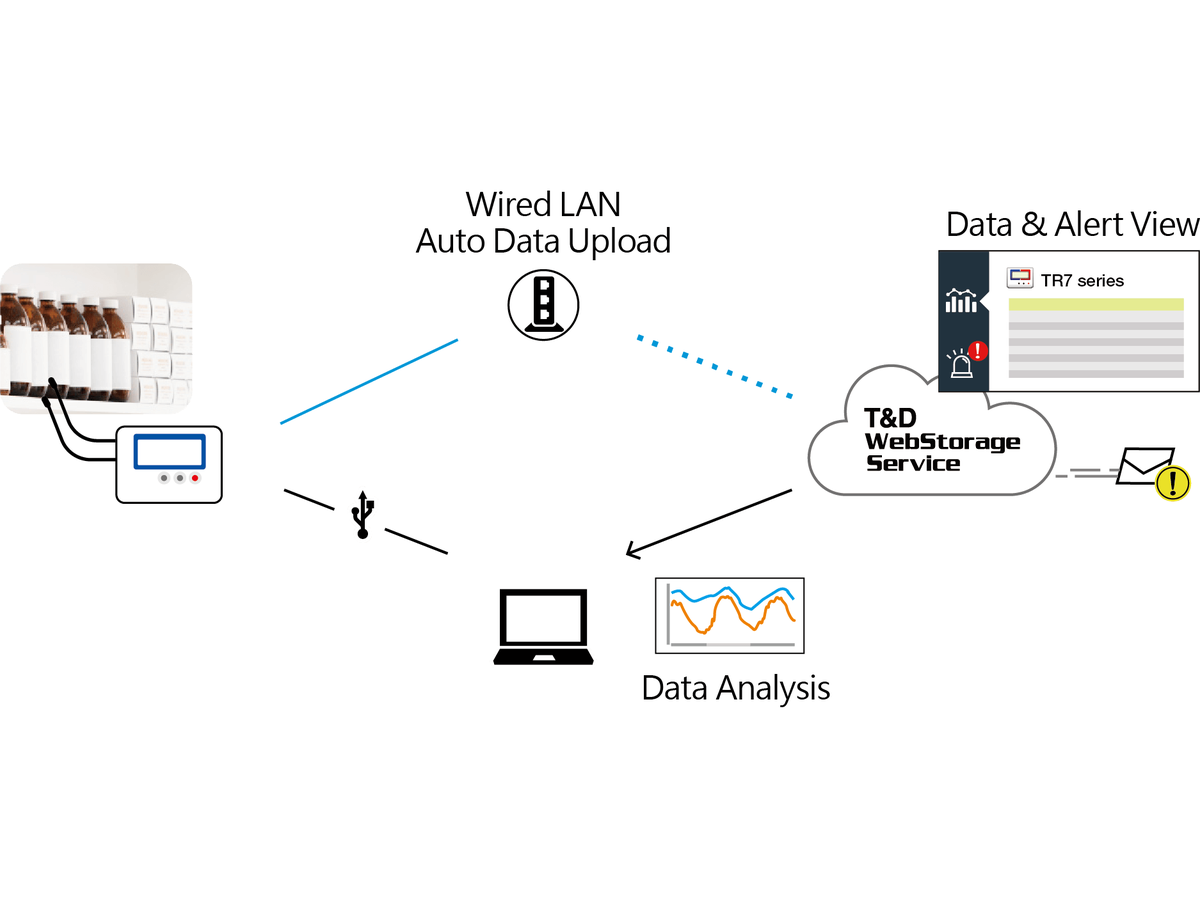

The TR-71nw uses a wired LAN connection to auto-upload recorded data and warning notifications to our free cloud-based "T&D WebStorage Service" or your Windows PC running the "T&D Data Server" software. Use our mobile app “T&D Thermo” to check data from your smartphone or tablet. To make settings from and download data via USB to a PC, use our Windows software “TR7 for Windows”. Our Windows software “T&D Graph” makes it easy to view and analyze data from your PC.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-71nw
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments
T&D TR71A2
Ultimate 2-channel IoT temperature loggers connectible via wireless LAN, Bluetooth and USB. Ideal for monitoring temperature of vaccines.
T&D TR-72nw-S
High precision 2-channel IoT temperature and humidity logger connectible via Ethernet and USB!
Sensor Extension Cable (TR-1C30)
Option recommended when you wish to extend the supplied sensor cable.
Temperature Sensor (Core Temperature) (TR-0506)
This is an optional stainless protection sensor with a pointed tip for the TR71A2, TR-71nw, and TR-73U.
Wall Attachment (TR-07K2)
This attachment is for use with the TR7 series, TR-73U, TR-74Ui/74Ui-S, and RTR-574/574-S.

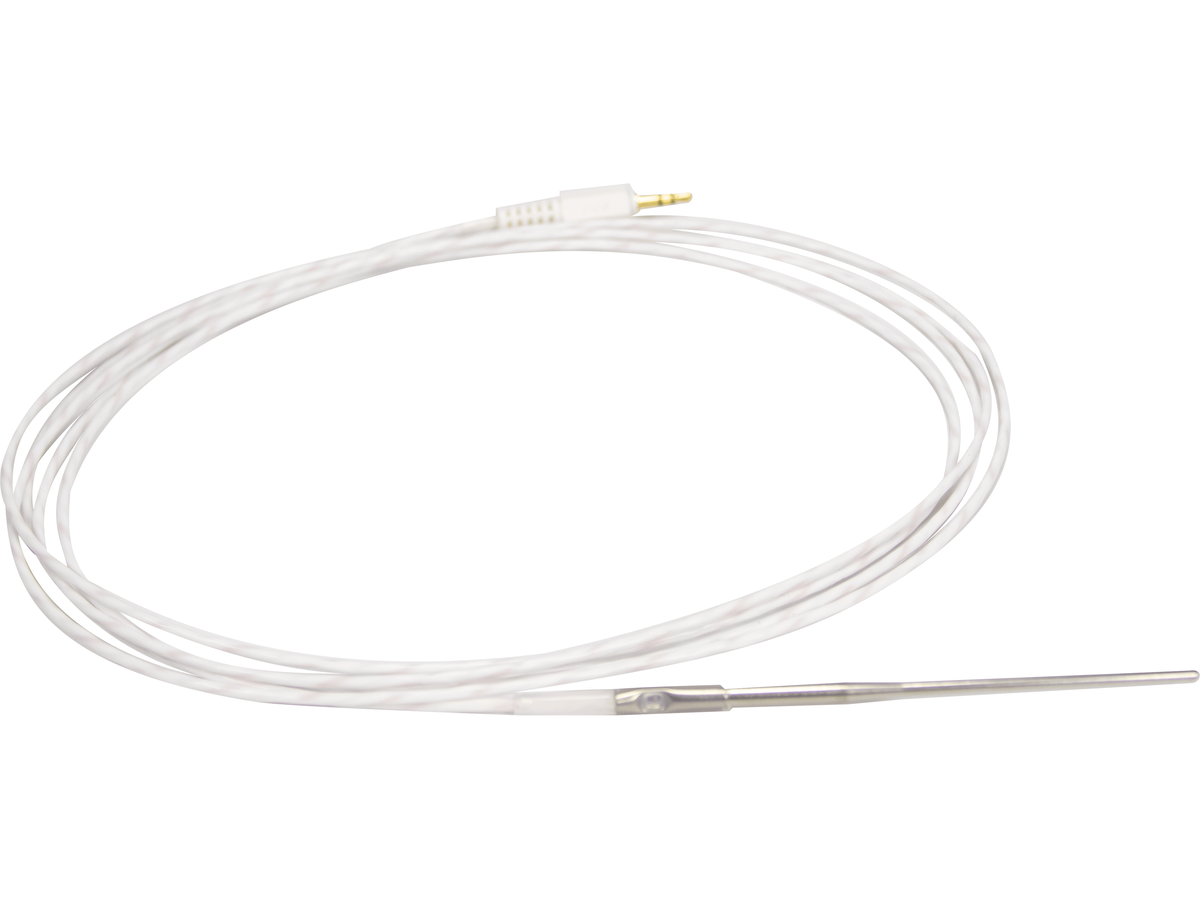

Temperature Sensor (TR-1320)
This is an optional stainless protection sensor for the TR71A2 and TR-71nw.
