TR-72nw-S
T&D TR-72nw-S
High precision 2-channel IoT temperature and humidity logger connectible via Ethernet and USB!
Request a quoteDownload the datasheet
Overview
The TR-72nw-S allows you to measure and record with high precision temperature from -25 to 70°C and humidity from 0 to 99%RH.
Functional buttons on the device allow you to make settings and start/stop recording. Use the Ethernet connection to auto-upload data to the cloud for anytime anywhere access and get warning notices. Connect to a PC with a USB cable to download recorded data, create reports and make setting changes.
It is perfect for situations where strict temperature and humidity control is required, such as when storing delicate items or in testing using constant temperature and humidity chambers.
Main Specifications
| Channels | Temperature 1ch, Humidity 1ch (External) |
|---|---|
| Range | Temperature: -25 to 70°C Humidity: 0 to 99%RH |
| Comm Interfaces | Wired LAN, USB |
| Waterproof Capacity | None |
Special Features

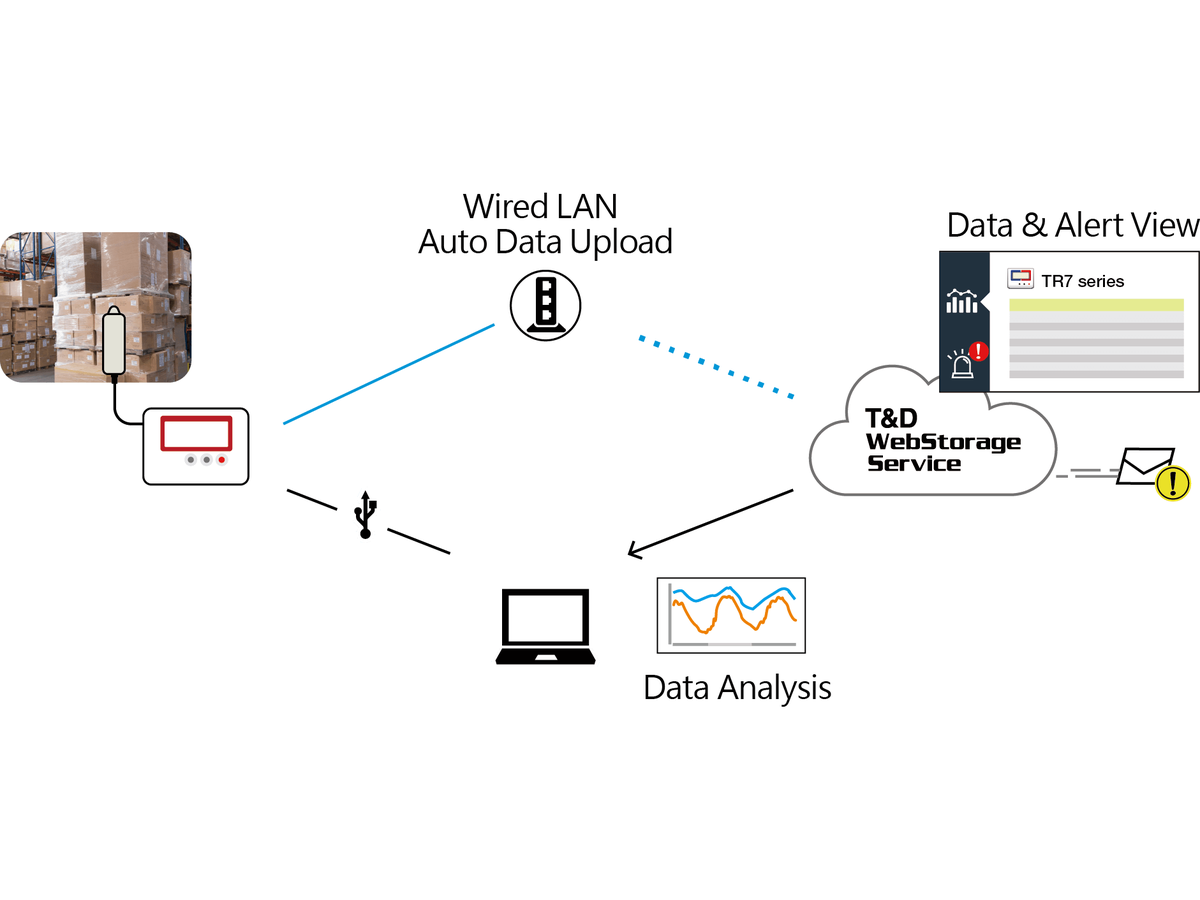

The TR-72nw-S uses a wired LAN connection to auto-upload recorded data and warning notifications to our free cloud-based "T&D WebStorage Service" or your Windows PC running the "T&D Data Server" software. Use our mobile app “T&D Thermo” to check data from your smartphone or tablet. To make settings from and download data via USB to a PC, use our Windows software “TR7 for Windows”. Our Windows software “T&D Graph” makes it easy to view and analyze data from your PC.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-72nw-S
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
