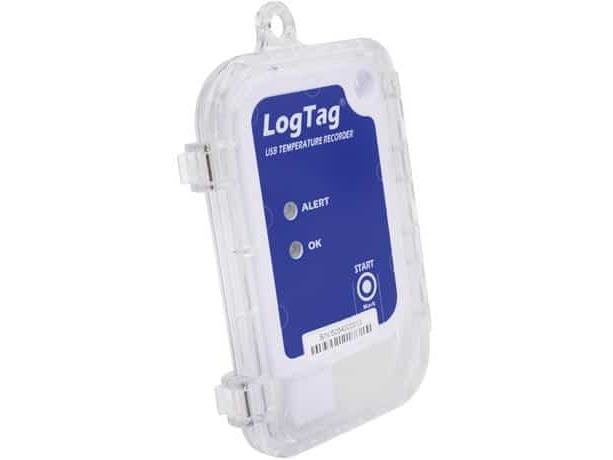

Protective Enclosure
The LogTag® Protective Enclosure is specifically designed for LogTag® recorder products to allow use in harsh environments.
USRIC-4

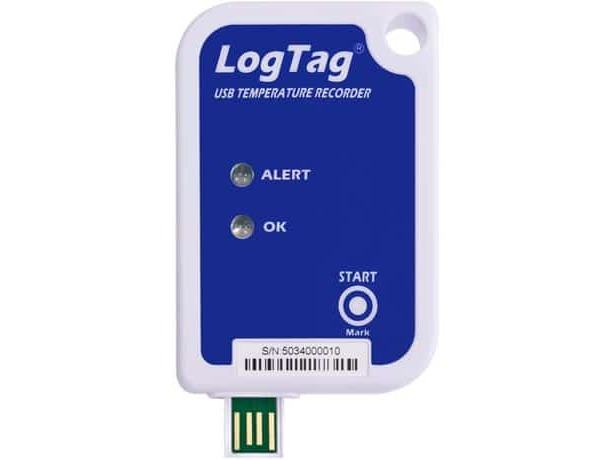

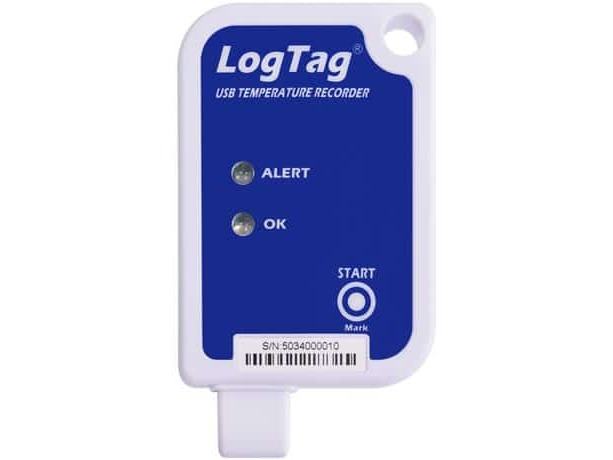

LogTag USRIC-4
Single-use USB Temperature Logger
Request a quoteDownload the datasheet

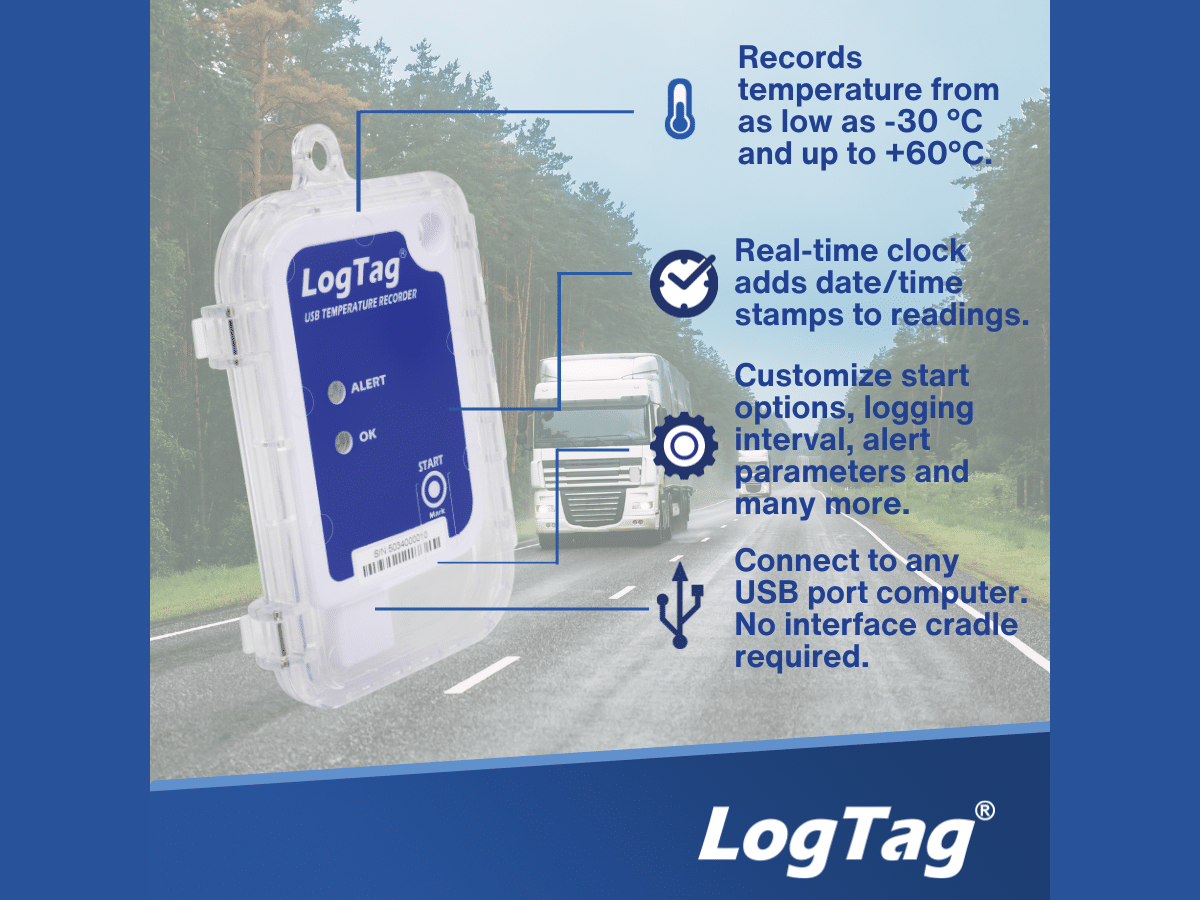

Highlights
- Integral USB connector - no separate Interface Cradle required.
- Up to 4,000 real time temperature recordings.
- Automatically generate a PDF report using the USRIC-4 PDF generator.
- A real time clock provides date/time stamps for each temperature reading.
- Customize start options, logging interval, alert parameters and many more.
Overview
The LogTag® USRIC-4 combines all the features of an advanced temperature recorder with 4000 log memory and a 6-month operating life in a robust and inexpensive package.
Readings are downloaded using LogTag Analyzer, which provides facilities for displaying data in chart, table or statistical formats and allows electronic archiving, export or transmission of the data in support of sophisticated data management systems.
Desinged as a Single-use, cost effective & reliable temperature recorder, the LogTag® USRIC-4 measures and stores real time temperature readings over a measurement range of -30 °C to +60 °C.
The USRIC-4 plugs directly into the computer USB for easy configuration by the user for a wide range of recording and alert conditions.
A red Alert indicator provides an immediate indication - without access to a PC - if any readings are outside the limits specified at the time the unit was configured. A green OK indicator provides immediate visual confirmation that the unit is operating.
Technical Data
| Product Model | USRIC-4 |
|---|---|
| Temperature Sensor Measurement range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Recorder Operating Temperature Range | -30 °C to +6 0°C (-22 °F to +140 °F) |
| Storage Temperature Range | 0 °C to +40 °C (32 °F to +104 °F) |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C (±0.9 °F) for -5 °C to +30 °C (23 °F to +86 °F). ±0.8 °C (±1.5 °F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | < 0.1 °C/F LogTag Analyzer currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 3937 temperature readings. 14 days @ 5min logging, 41 days @ 15min logging |
| Sampling Interval | Configurable from 1 minute to 18 hours |
| Logging Start Options | Push button start or specific date & time |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Alarms | 1 configurable upper and 1 configurable lower alarms |
| Download Time | Typically less than 4 seconds for full memory (3937 readings), depending on computer or readout device used |
| Environmental | IP64 with USB cap fitted |
| Power source | CR2032 3V LiMnO2 Battery (Fixed) |
| Battery Life | 2 years storage, followed by 6 months normal use |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25 °C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | LogTag® Analyzer 2.5 or higher |
| Size | 93 mm(H) x 54.5 mm(W) x 8.6 mm(T) including protective USB cap |
| Weight | 30 g |
| Case Material | Polycarbonate |
| EN12830 | EN 12830:2018 - Temperature recorders for the transport, storage and distribution of temperature sensitive goods - Test, performance, suitability |
