USRIC-8

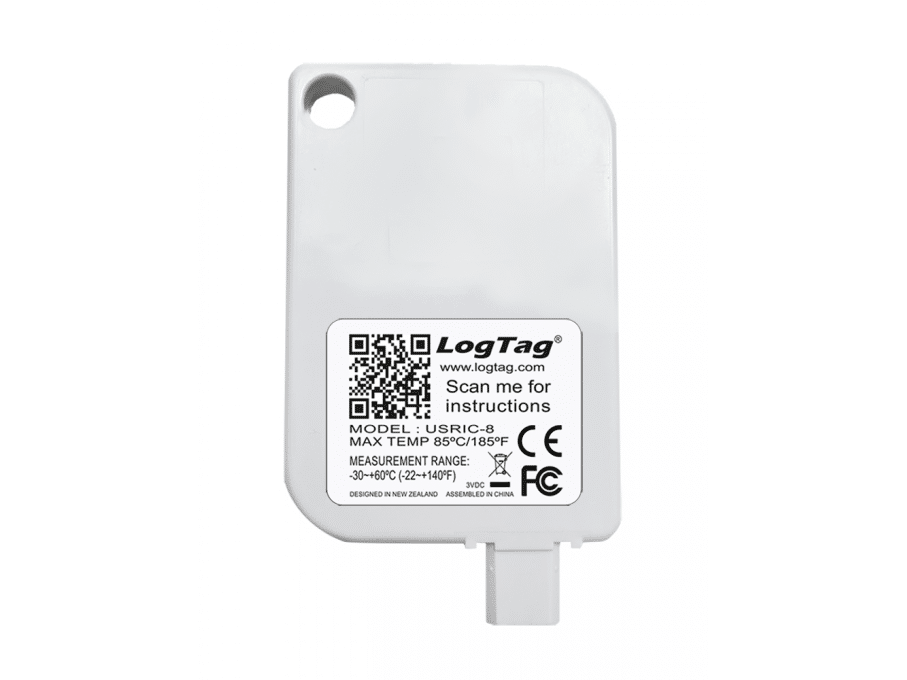

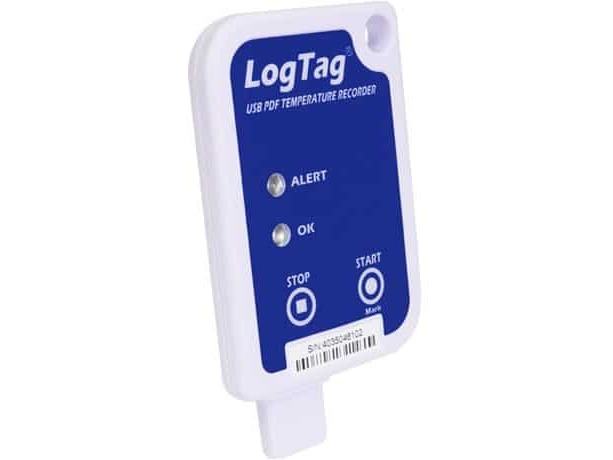

LogTag USRIC-8
Single-use USB PDF Logger
Request a quoteDownload the datasheet

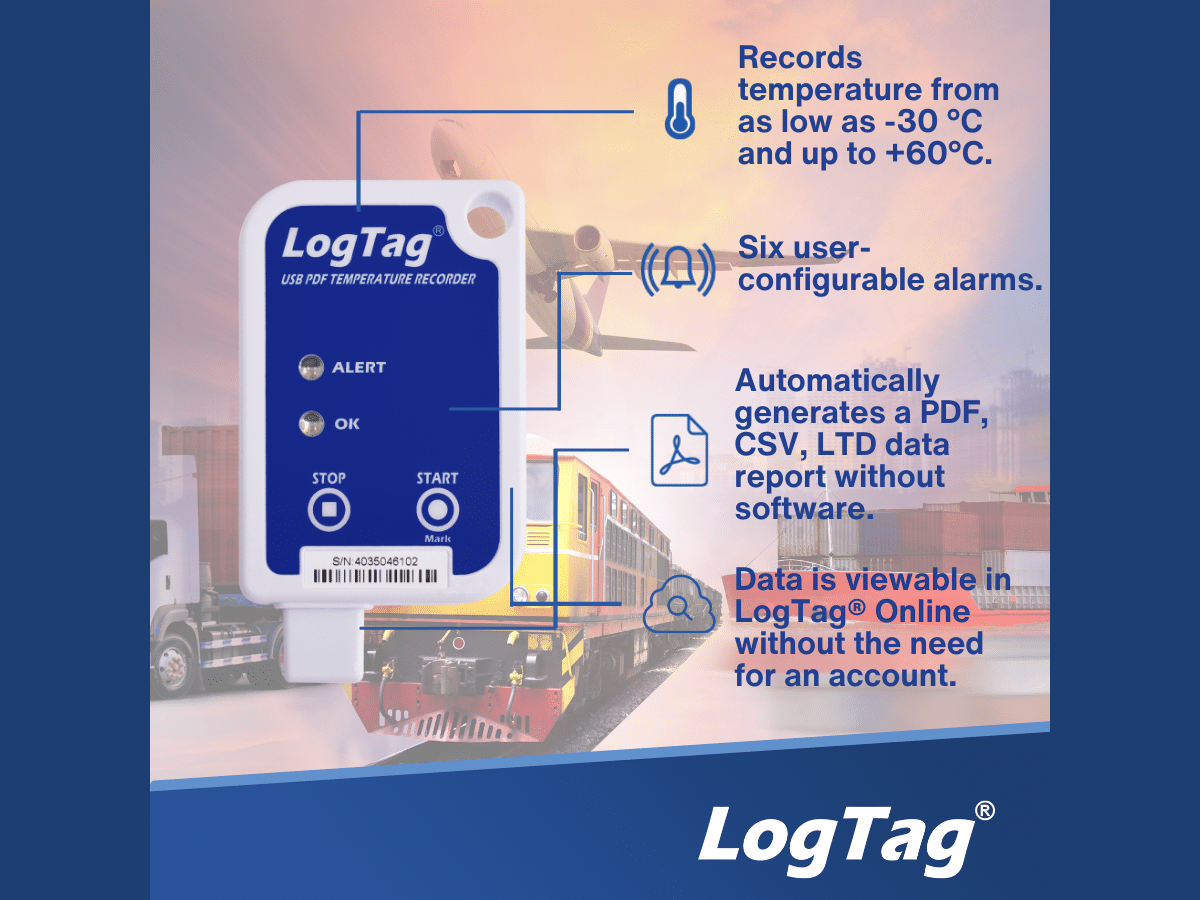

Highlights
- Integral USB connector - No separate Interface Cradle required
- Automatically generates a PDF report - No special software required
- Encrypted LTD file generated for a more detailed analysis
- User configurable - No need to buy a special logger for each trip
- Suitable for independent receivers, clinical trials & last-mile distribution
Overview
The LogTag® USRIC-8 PDF Temperature Recorder measures and stores up to 8,000 real time temperature readings over a measurement range of -30 °C to +60 °C.
Designed as a single-use, cost effective & reliable temperature recorder, the LogTag® USRIC-8, enclosed in a robust & durable polycarbonate case, automatically generates a fully detailed PDF report and provides the option to download the data using the freely available LogTag Analyzer software.
Using LogTag® Analyzer, the LogTag® USRIC-8 is easily set-up for a number of recording conditions.
Technical Data
| Product Model | USRIC-8 |
|---|---|
| Temperature Sensor Measurement range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Recorder Operating Temperature Range | -30 °C to +6 0°C (-22 °F to +140 °F) |
| Storage Temperature Range | 0 °C to +40 °C (32 °F to +104 °F) |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C (±0.9 °F) for -5 °C to +30 °C (23 °F to +86 °F). ±0.8 °C (±1.5 °F) or better for measurements in other areas of rated range. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | < 0.1 °C/F LogTag Analyzer currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 8,001 temperature readings. 27 days @ 5min logging, 80 days @ 15min logging |
| Sampling Interval | Configurable from 1 minute to 18 hours |
| Logging Start Options | Push button start or specific date & time |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Alarms | 6 user-configurable alarms |
| Download Time | Typically in less than 20 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag Analyzer (if configured) |
| Environmental | IEC 60529: IP64 with USB cap fitted |
| Power source | CR2032 3V LiMnO2 Battery (Fixed) |
| Battery Life | 2 years storage, followed by 6 months normal use |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 2.5 or higher, LogTag Xpress, LogTag Online |
| Size | 93 mm(H) x 54.5 mm(W) x 8.6 mm(T) including protective USB cap |
| Weight | 31 g |
| Case Material | Polycarbonate |
| EN12830 | EN 12830:2018 - Temperature recorders for the transport, storage and distribution of temperature sensitive goods - Test, performance, suitability |
