USRID-16 WHO
LogTag USRID-16W
WHO Compliant Vaccine Monitoring
Request a quoteDownload the datasheet
Highlights
- Pre-Qualified compliant to WHO PQS specification E006/070 Temperature monitoring devices
- Stores 40 days of temperature recordings data, factory set with a 5 minute logging interval.
- Display showing temperature and alarm status of up to three alarms.
- Automatic generation of a PDF, CSV, LTD report without special software.
Overview
Data logger with integral USB connector. The LogTag® WHO compliant USRID-16WC and USRID-16WA/B satisfy the growing need for a cost effective and reliable single-use temperature recorder with built-in USB and display. They are ideally suited for vaccine transportation, pharmaceutical transportation as well as in laboratories and medical centres & healthcare.
The display shows alarm status of up to 3 alarms set at WHO requirements. It plugs directly into the computer USB for easy data download.
Upon download, it automatically generates a fully detailed PDF report with the option to download the data using the freely available LogTag® Analyzer software for a more detailed analysis.

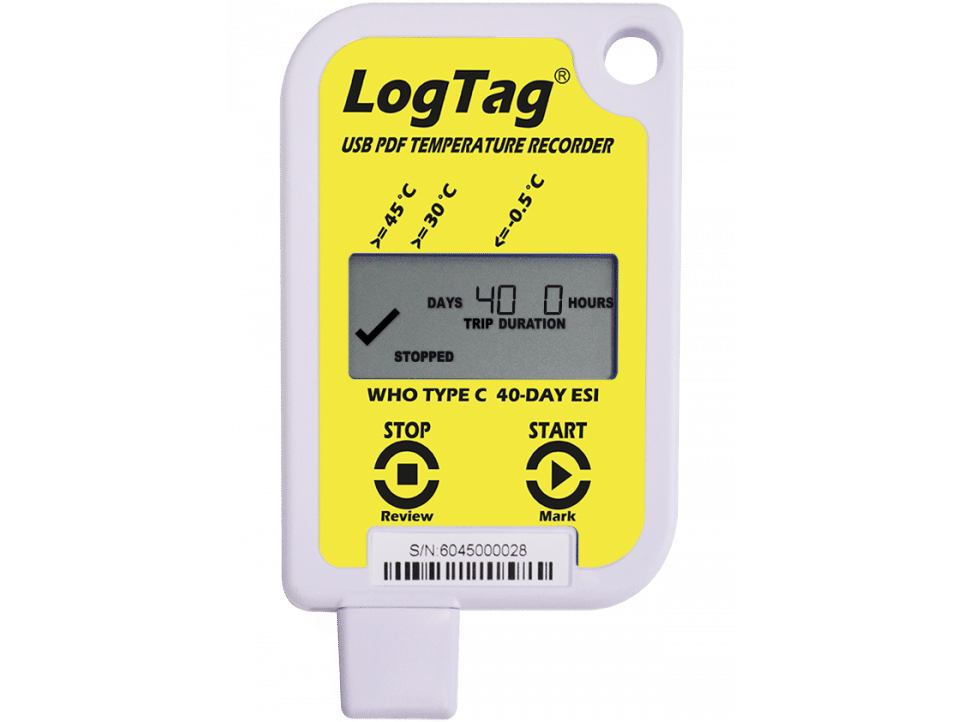

USRID-16WC
WHO Type 1 alarm configuration for freeze sensitive vaccines:
DTP, DT
TT, Td
HepB, IPV, HPV
Liquid Hib and combination vaccines
Pneumo (other than Prevenar)

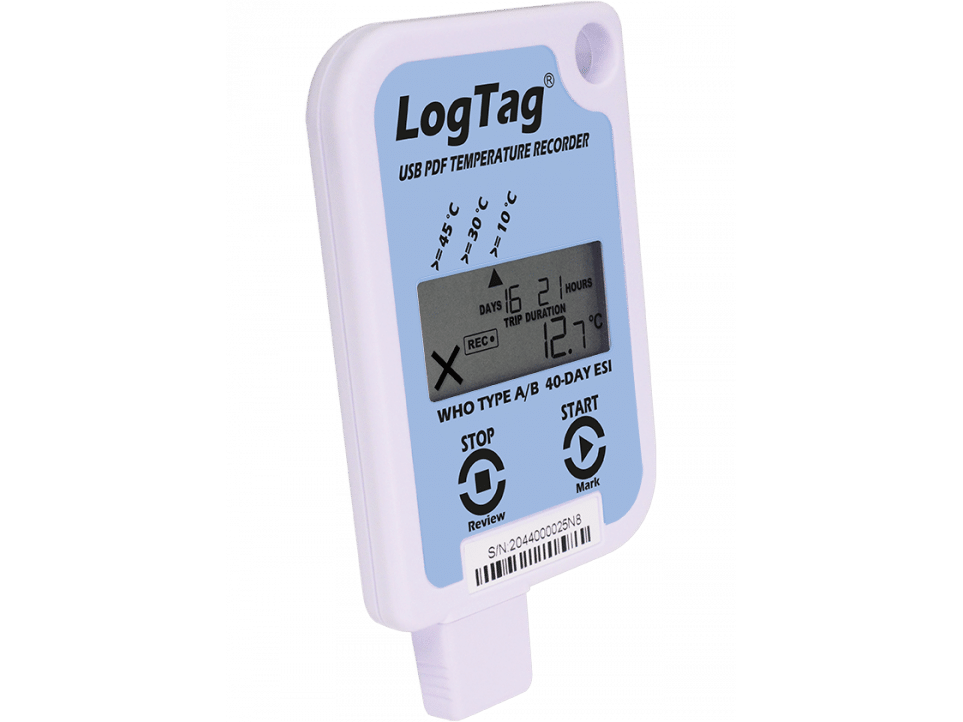

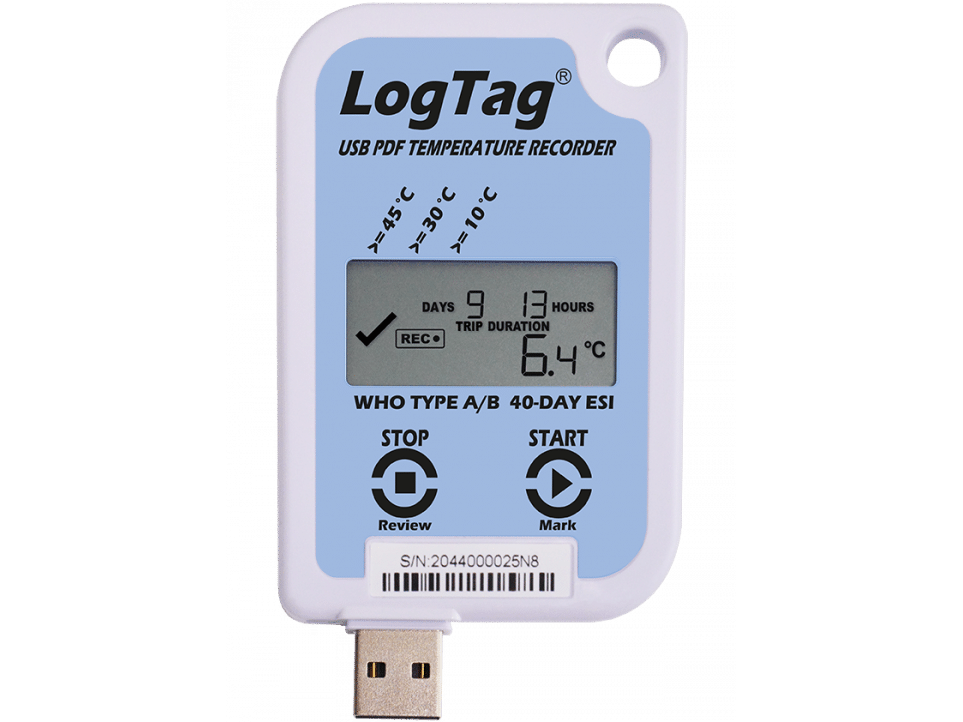

USRID-16WA/B
WHO Type 2 alarm configuration suitable for the international shipment of:
BCG, lyophilized Hib, OPV
Measles, MR, MMR, Rabies,
Meningitis (polysaccharide)
Yellow fever vaccines
Rotavirus (other than rotateq)
Technical Data
| Product Model | USRID-16W |
|---|---|
| Temperature Sensor Measurement range | -30 °C to +60 °C |
| Recorder Operating Temperature Range | -30 °C to +60 °C |
| Storage Temperature Range | -30 °C to +55 °C with device de-activated |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C for -5 °C to +30 °C; Better than ±0.8 °C or better for -30 °C to +60 °C; Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | Better than 0.1 °C between -20 °C to +55 °C; LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 11,520 temperature readings (40 days at 5 minute logging) |
| Sampling Interval | Factory set at 5 minutes (non-changeable) |
| Logging Start Options | Push button start |
| Alarms | 3 alarms set at WHO requirements |
| Download Time | Typically with full memory in less than 20 seconds from time of insertion to availability of PDF report; Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer 3 |
| Environmental | Ingress rating: IP65 with USB cap fitted Shock and Vibration: Unit shall pass a relevant level of shock and vibration based on the requirements of the Indicator specification E006/ TR07.3 Environmental resistance: Labels and plastics shall be resistant to a range of chemicals and UV, including rubbing alcohol and petrol fuel |
| Power source | CR2032 3V LiMnO2 Battery (Non-Replaceable) |
| Battery Life | Minimum storage life of 18 months before ‘start’; Monitoring period: 40 days Minimum accessibility (display) period of 6 months after ‘stopped’ |
| Real Time Clock | Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day); Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag Analyzer 3 or higher |
| Size | 93 mm(H) x 54.5 mm(W) x 8.6 mm(T) including protective USB cap |
| Weight | 39g |
| Case Material | Polycarbonate |
| Logging Stop Options | Push button stop Stop after the logger has completed 11,520 temperature readings (40 days at 5 minute logging) |
