VAXTAG +

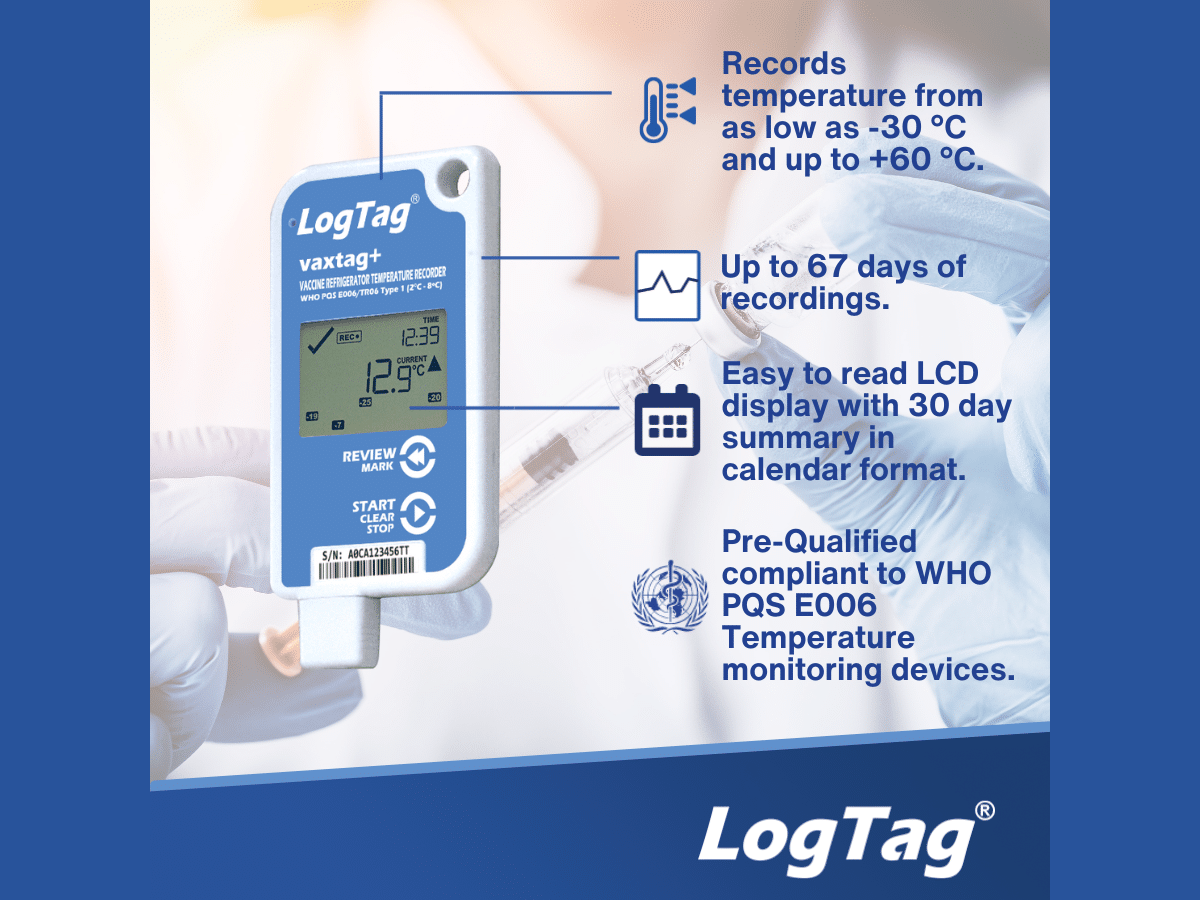

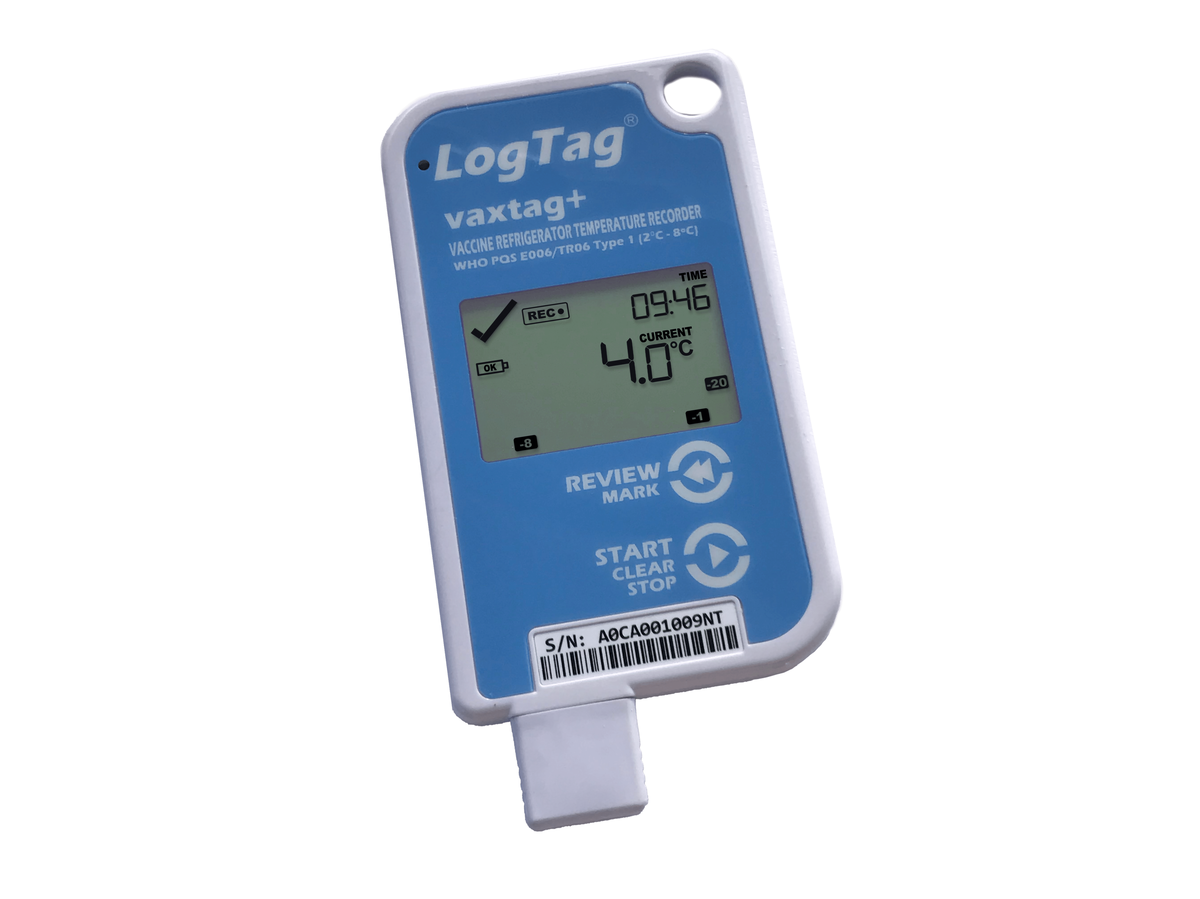

Temperature USB Data Logger & WHO PQS Pre-qualified
Request a quoteDownload the datasheet

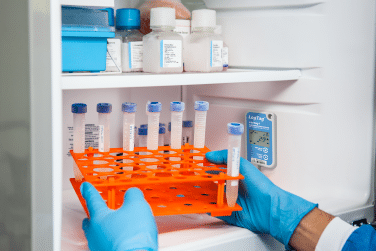

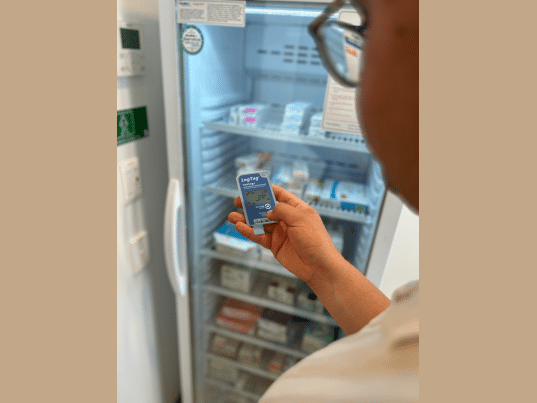

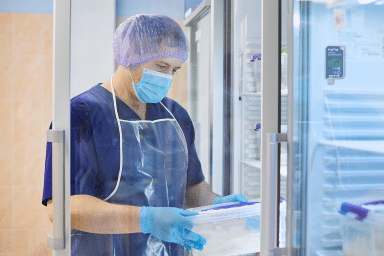

The device may also be used as a secondary back-up device in cold rooms. The product features a display together with a data logging function storing up to 16,129 temperature readings. Statistical temperature and duration readings for up to 30 days can be reviewed on the display.
Details of any violations can be checked directly by inspecting the statistics history on the recorder’s display or in more detail by downloading the logged data.Logged data can be downloaded via a standard LogTag® Interface to the free companion software LogTag Analyzer which provides facilities for displaying data in chart, table or statistical formats and allows electronic archiving, export or transmission of the data in support of sophisticated data management systems.
The device is preconfigured with the following alarm settings:
• Low alarm: Exposure to -0.5 °C or below for 60 minutes.
• High alarm: Exposure to +8 °C or above for 10 hours.
A visual alarm trigger is displayed if one or more of the configured alarm trigger conditions have been met.
Details of any violations can be checked directly by inspecting the statistics history on the recorder’s display or in more detail by downloading the logged.
| Product Model | VaxTag+ |
|---|---|
| Temperature Sensor Measurement range | -30 °C to +60 °C |
| Recorder Operating Temperature Range | -30 °C to +65 °C |
| Storage Temperature Range | -30 °C to +55 °C |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C for -20 °C to +40 °C; Better than ±0.7 °C for -30 °C to -20 °C; Better than ±0.7 °C for +40 °C to +60 °C |
| Rated Temperature Reading Resolution | 0.1 °C across entire range |
| Recording Capacity | 16,065 real time temperature values, giving 67 days @ 6 min logging |
| Sampling Interval | Factory preset to 6 minutes |
| Logging Start Options | Push button start with 30-minute start delay |
| Download Time | Typically with full memory (16,065 readings) less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag Analyzer (if configured) |
| Environmental | IEC 60529: IP65 with USB cap fitted |
| Power source | CR2450 3V Li-MnO2 UN38.3 approved coin cell, non-rechargeable, non-replaceable |
| Battery Life | Typically 2 years of operation with normal use (6 minute logging, statistics reviewed on the display no more than once daily for no longer than 30 seconds each time, download data monthly) provided recorder is kept within the storage temperature range when not in use, and the product is not stored for more than 2 years prior to first use. |
| Connection Interface | USB 2.0 |
| Size | 107 mm(H) x 54.5 mm (W) x 8.6 mm (T) including USB cap |
| Weight | 46.8 g |
| Case Material | Polycarbonate |
The LogTag® Protective Enclosure is specifically designed for LogTag® recorder products to allow use in harsh environments.
For all current LogTag® models excluding indicators and UTRED30/UTREL30 loggers
