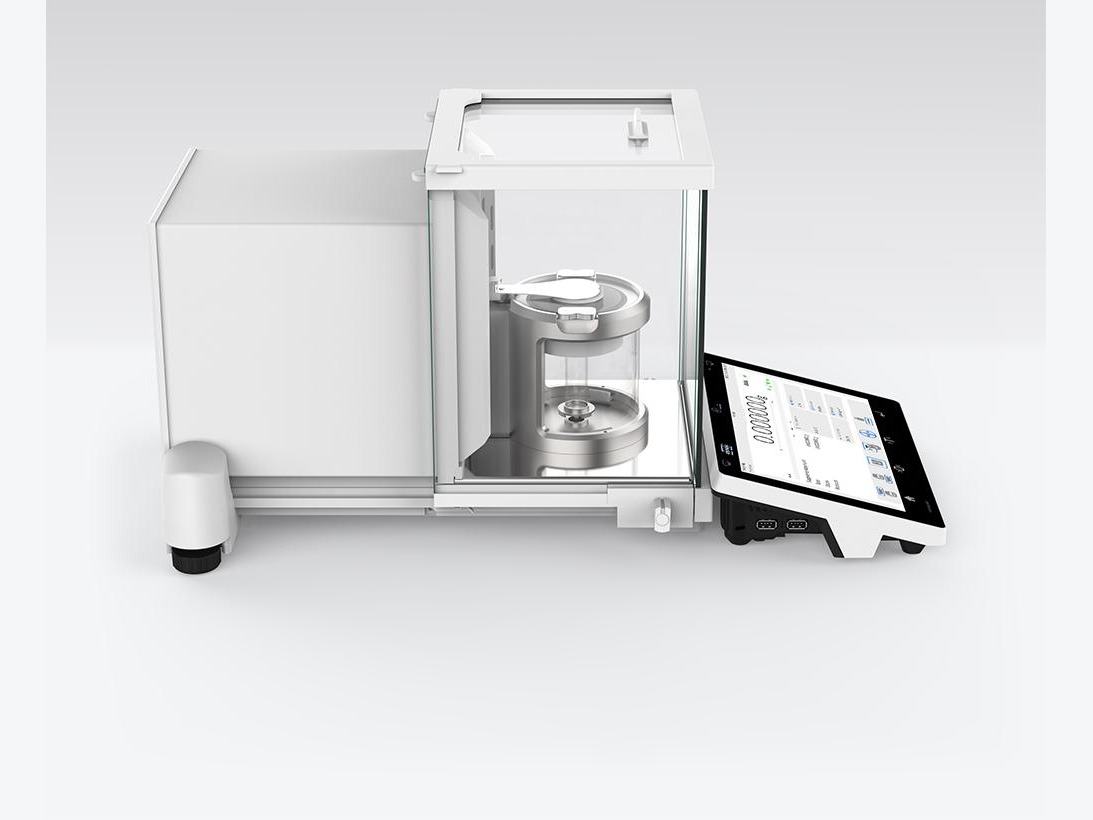

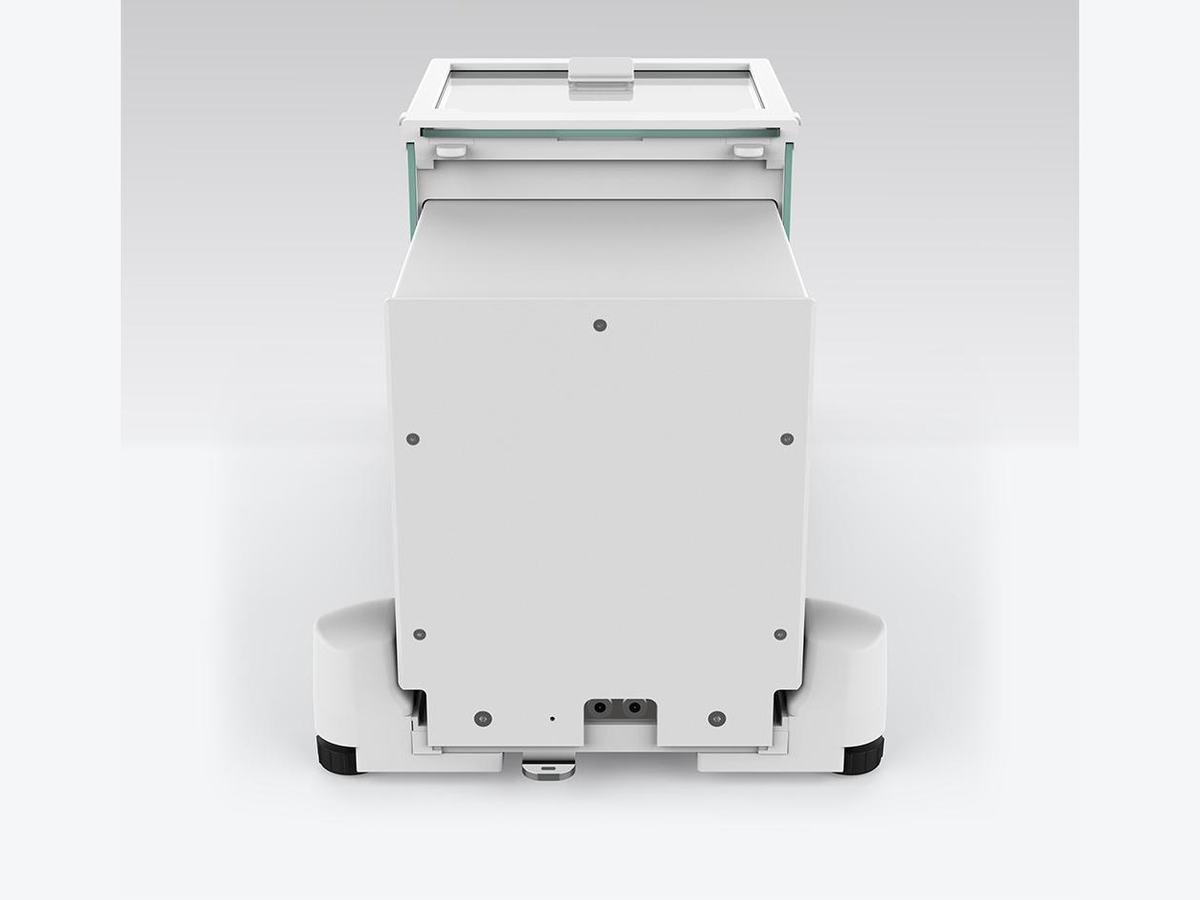

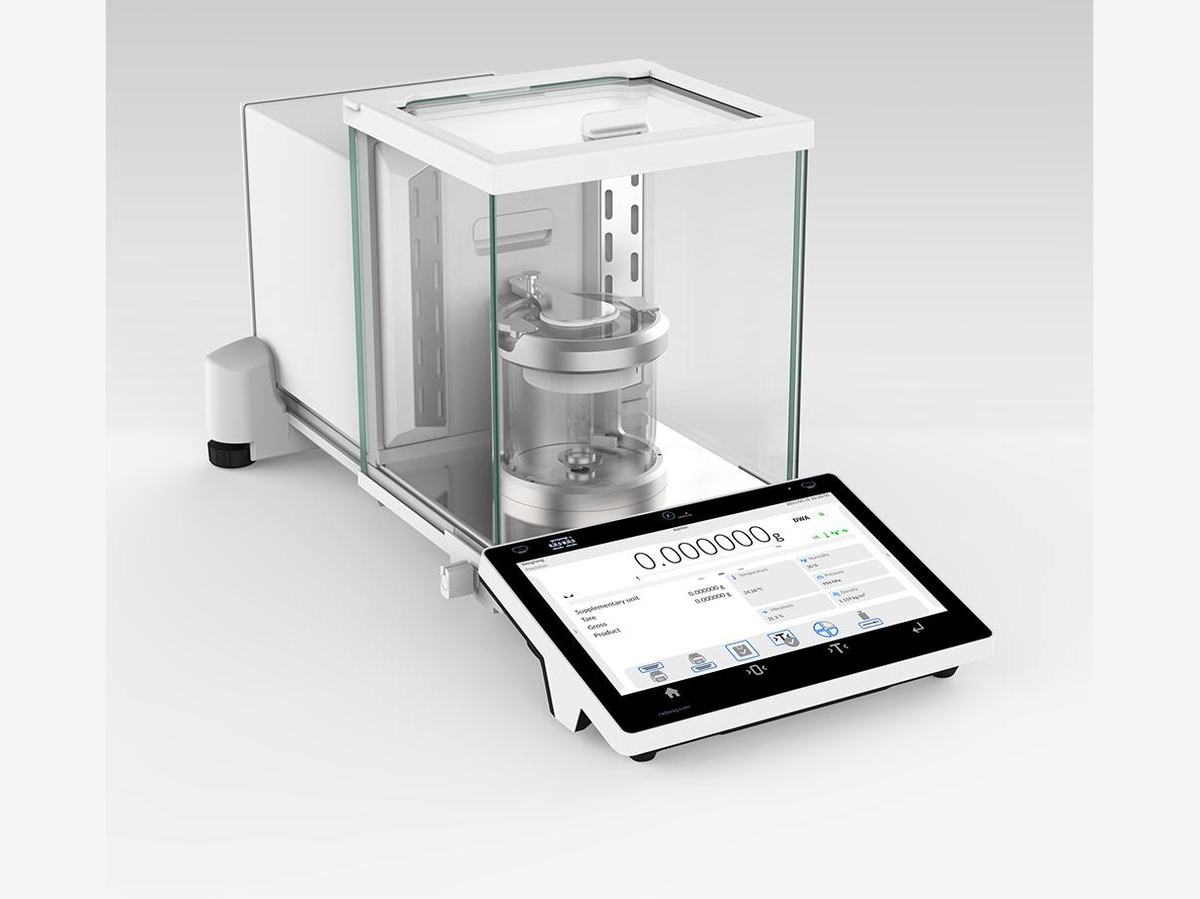

XA 21.5Y.M.A.P Microbalance

Overview

XA 21.5Y.M.A.P Microbalance for Pipettes Calibration

XA 5Y.M.A.P Microbalances are designed to calibrate single-channel pipettes from 0.5 µl. Pipette calibration means checking whether the pipette draws as much as it should, and thus whether the measurement result is within the permissible error. XA 5Y.M.A.P Microbalances have the same features as the XA 5Y.M.A Microbalances, but since they are dedicated to pipette calibration, they are additionally equipped with an automatic pipette calibration adapter, including a pipette calibration adapter, an evaporation ring and a glass vessel (we have listed all the components of the calibration adapter below, next to the datasheet).

Fully Antistatic Weighing Chamber

The XA 5Y.M.A.P Microbalances has a built-in antistatic ionizer and an automatically opened weighing chamber. The built-in antistatic ionizer neutralizes the electrostatic charge of the sample during each weighing procedure, that is, each time the chamber is opened. The automatically opened weighing chamber is controlled by gestures, i.e. non-contact.

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Functions

Autotest

Diagnostic function aiming at metrological parameters determination (repeatability), the parameters are determined for the actual conditions of use. When speaking of repeatability it may be also used for weighing time optimization. Autotest is operated in an automatic mode thus operator’s time is saved.

Percent Weighing

Percent Weighing function is used for comparision of measured products with mass standard. Mass of a mass standard may be a numeric value taken from a database or it may be determined through a measurement process. Each measured product is compared to mass standard, mass of which is presumed as a model 100% ideal mass. For products weighing less than the mass standard, obtained results are lower than 100%, for products weighing more, the obtained results are greatly exceeded.

Pipettes Calibration

Function verifying correctness of piston pipettes functioning, the verification is performed via gravimetric measurement of the excreted liquid. Pipettes calibration may be either a stand-alone module or it may be operated

Air density correction

Function performing correction of mass measurement indication, wherein the air density is taken into account. It is used in balances with reading unit < 0,01 mg.

Automatic sliding door

Automatic side panes opened via touch-free IR sensors.

Moveable range

Dual range analytical balances can be equipped with much more precise measuring range but only in very limited part of max capacity and only from zero load. A new technology introduced by RADWAG allows for moving this limited range till max capacity of the balance is reached. Such solution has been named as: Moveable range.

ALIBI Memory

"ALIBI" memory enables saving and storing up to 100000 measurements. Measurements are saved automatically upon each pressing of the key. There is no need for any additional operations or changing settings.
The following data related with the measurements is saved: measurement date; measurement time; result (mass); tare value; operator carrying out the measurement (logged in); product name.
The software saves the measurement in a so called loop, i.e. when the measurement no. 100001 is saved, the measurement 1 gets automatically deleted from the memory.
Measurements saved to balance memory cannot be deleted.
You can preview and print out the data saved to the ALIBI database.

Wi-Fi ®

Thanks to wireless communication between the computer and a balance, it is possible to use a balance inside a laminar flow hood and a fume cupboard.

PIPETTES Extended Module (5Y)

PIPETTES Extended Module is designed for checking and calibrating single-channel pipettes according to ISO 8655.

We have implemented the module in the 5Y terminal as an optional feature that you can activate. If you choose to do so, you will receive a lifetime license.

The PIPETTES Extended Module creates its own web page (works together with the Web Editor application) and is based on the PIPETTES software. The Web Editor is used to manage databases, edit pipette calibration orders and generate reports on calibration with the use of a web browser.
