ET244

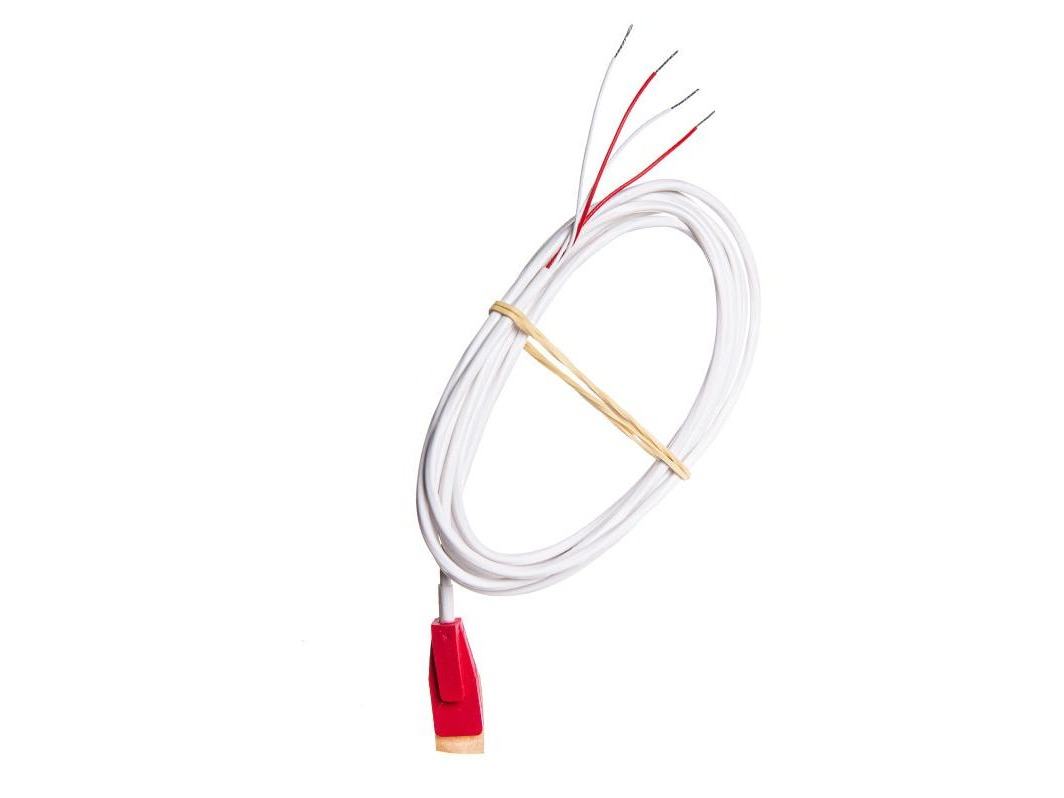

Self-adhesive temperature sensor (ET244)

ET244 surface temperature sensor is designed for measuring temperature on flat or slightly curved surfaces. The sensing element is encapsulated in a flexible protection cap made of silicone rubber. The sensor is fixed on the surface with adhesive acrylic film.

Request a quoteDownload the datasheet

Self-adhesive temperature sensor (ET244)

Features

  • Operating range -40...+150 °C
  • Pt100, Pt1000, Nickel RTD or NTC thermistor
  • Flexible silicone rubber sensor protection
Self-adhesive temperature sensor (ET244)

Description

Due to its small size and ease of use, the device is an excellent solution for HVAC applications.

ET244 sensor is available with a variety of options for sensing element and cable.

Technical Data

Sensing element optionsPt100 or Pt1000 EN60751 class F0.15 or F0.3; Ni1000 or Ni1000 DIN43760 or LG curve; Customer specified NTC thermistor,; curves A, B, C, D, F or as specified; R tolerance @ 25 °C - P ± 1%, Q ± 2%, R ± 5%; β tolerance - X ± 0,2%, Y ± 0,5%, Z ± 1,0%
Sensor protection patchflexible silicone rubber; dimensions 30×12×4 mm; protection class IP67; bottom attached acrylic adhesive film
Cable options3 or 4 wires; PVC (-V), silicone (-S) or fluoroplast (-F) insulation; length N = 1, 2, 5, 10 m

Configure the instrument

Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
