Low-Temperature-Furnace

Low Temperature Furnace

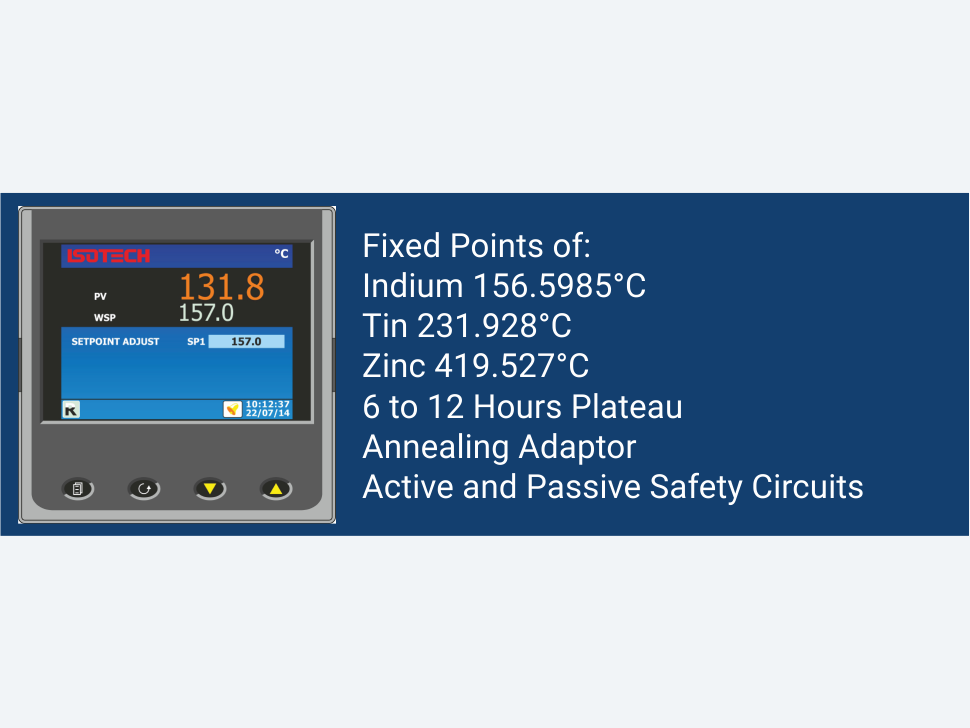

The Isotech Low Temperature Fixed Point Furnace is designed specifically to realize and maintain the freeze plateaux of Isotech Indium, Tin and Zinc Fixed Point Cells, for calibration of thermometers on the International Temperature Scale of 1990.

Request a quoteDownload the datasheet

Low Temperature Furnace

Features

  • Single Zone
  • Aluminium Alloy Block
  • 6 to 12 Hour Plateau
Low Temperature Furnace

Description

  • Affordable Single Zone Furnace
  • Simple Operation
  • For Indium, Tin and Zinc Cells

The Low Temperature Furnace is a single-zone furnace. The recommended procedure for establishing a freeze plateau requires operator attention until the plateau is realized. Following that, the Model 17701 Furnace will maintain the plateau, essentially automatically, for a period of 10 to 12 hours.

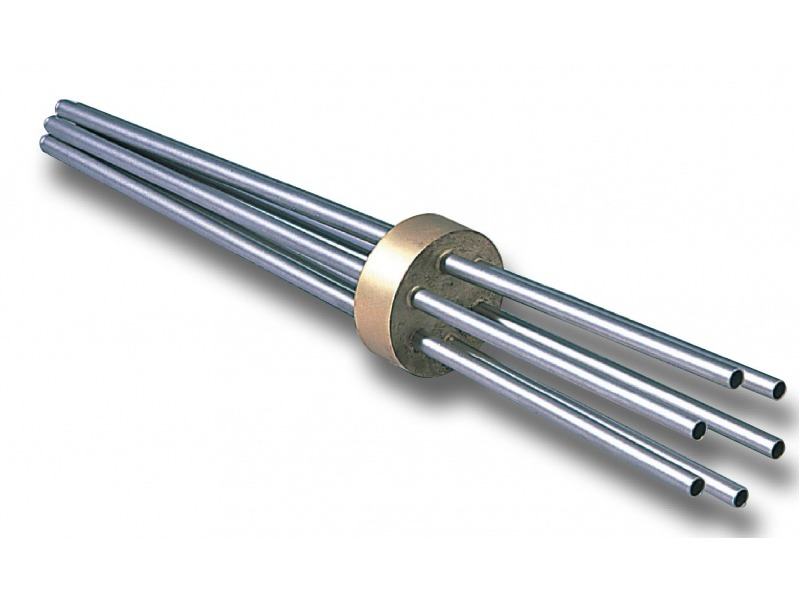

The furnace core, into which the freeze-point cell is inserted, is of aluminium alloy, which provides a very low thermal gradient along the core length. The main furnace heater is of the parallel-tube design as used at NIST. A pre-warming tube is provided.

Two entirely independent over-temperature safety devices are included. A dedicated (on-off) over temperature control circuit provides active safety. A fusible link in the main power circuit provides passive safety.

Low Temperature Furnace

The Low Temperature Furnace is completely self-contained, castor mounted and requires no external supplies (except power).

New Features

From our own ongoing experience and customer feedback we have updated the Isotech Furnace Range to deliver the same proven performance and advanced features but with a number of convenience upgrades to make your life easier.

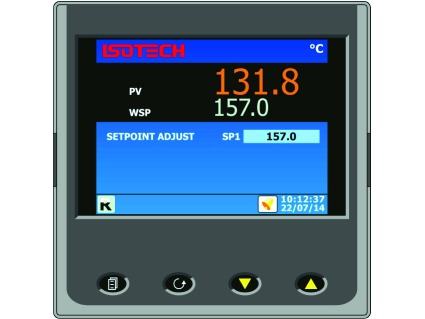

The controllers have now been relocated to the top for easier operation, we now include an SPRT Stand and Cable Tidies to keep your standards safe and Accessory Pods to keep the
furnace tops free from clutter. Our furnaces are programmable to automatically melt and freeze cells and feature both USB and Ethernet interfaces with bright crystal clear displays.

Low Temperature Furnace

Specifications

ModelITL-M-17701
Temperature Range50°C to 500°C
Uncertainty< 1mK (with cells)
Control0.1°C resolution
CommunicationsIncluded as standard
Power1.5kW, 108-130 or 208-240Vac, 50/60Hz
Core Size54.7mm x 420mm
DimensionsHeight 960mm, Width 600mm, Depth 690mm, Weight 115kg
Accessories411-01-11 Annealing Adaptor, 824-01-00 Fan Assembly
How to orderITL-M-17701 Low temperature furnace. Please specify voltage required
