Model-1600-NCJ
The Isothermal range of Thermocouple Standards are the result of many years development. The type R and S standards will cover the range from 0°C to 1600°C.
Request a quoteDownload the datasheet
The measuring assembly comprises a 7mm x 300mm or 600mm gas tight 99.7% recrystallised alumina sheath inside which is a 2.5mm diameter twin bore tube holding the thermocouple.
The inner 2.5mm assembly is removable since some calibration laboratories will only accept fine bore tubed thermocouples and some applications require fine bore tubing.
The covered noble metal thermocouple wire connects the measuring sheath to the reference sheath which is a 4.5mm x 250mm stainless steel sheath suitable for referencing in a 0°C reference system. Two thermo electrically free multistrand copper wires (teflon coated) connect the thermocouple to the voltage measuring device.
The thermocouple material is continuous from the hot or measuring junction to the cold, or referencing junction.
| Model | 1600 |
|---|---|
| Hot Sheath Temperature Range | 0°C to 1600°C (R or S) |
| Emf vs Temperature | According to relevant documents |
| Response Time | 5 minutes |
| Hot Junction Dimensions | See diagram |
| Immersion | 100mm min |
| Case Dimensions | Height 65mm, Width 710mm, Depth 165mm, Gross Weight 900g |
| Feature | Removeable inner assembly |
| Feature | The standard thermocouple described can only be supplied in the following noble metal combinations: |
| “ | Type R: Platinum vs Platinum 13% Rhodium, Type S: Platinum vs Platinum 10% Rhodium |
| How to order | Model 1600 Type R/300, Model 1600 Type R/600, Model 1600 Type S/300, Model 1600 Type S/600 |

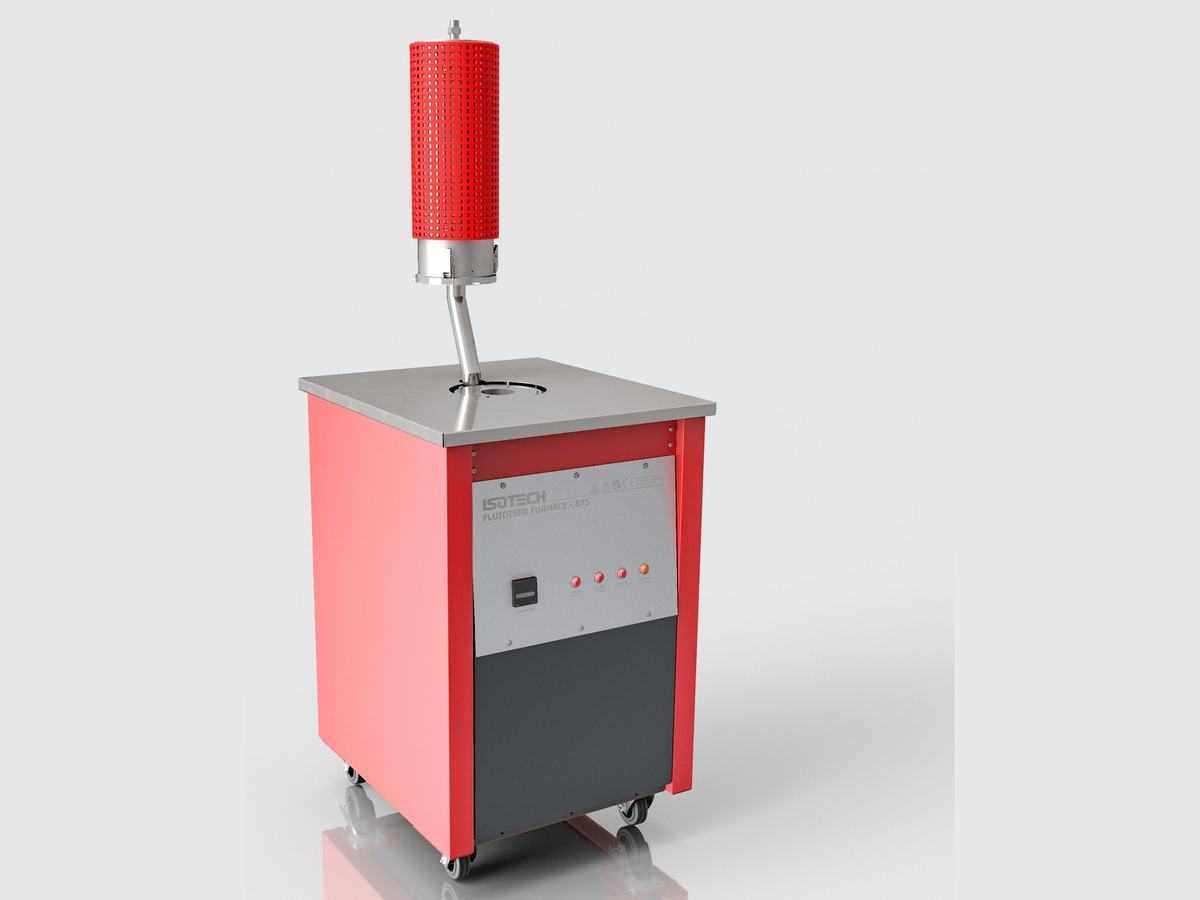

The Isotech Model 875 Fluidised Calibration Bath is a high-precision solution for thermometer calibration across a broad temperature range. It…

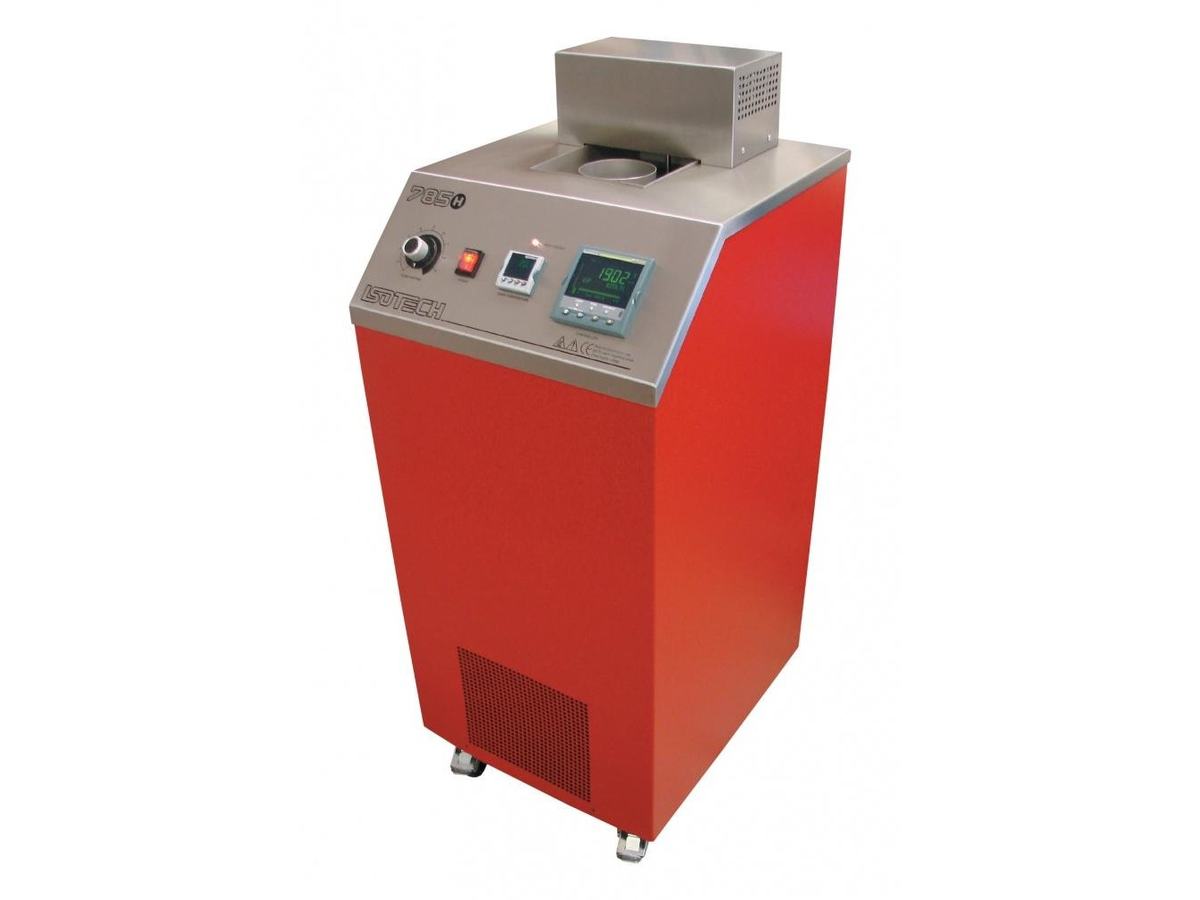

Isotech calibration baths employ sophisticated designs to ensure calibration to the smallest of uncertainties. In 1986 Isotech purchased the…
When we considered low temperature comparison calibration, we had to take into account Health and Safety considerations, both of the liquids used in…

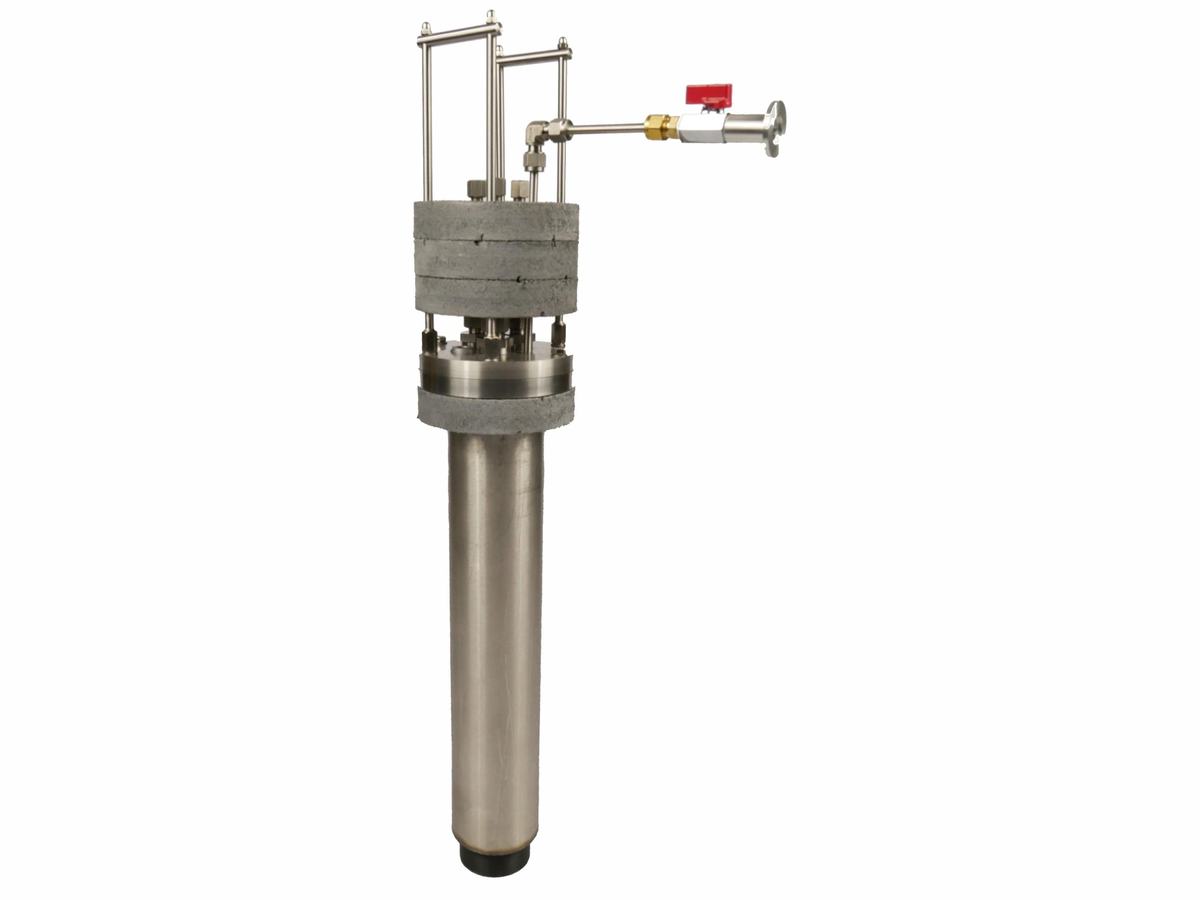

Isotech Nitrogen Boiling Point Apparatus is designed specifically to realise and maintain the liquid/vapour equilibrium (boiling point) of nitrogen…
This economically-priced Standard Platinum Resistance Thermometer, Model 909, is the workhorse of calibration laboratories all over the world. During…

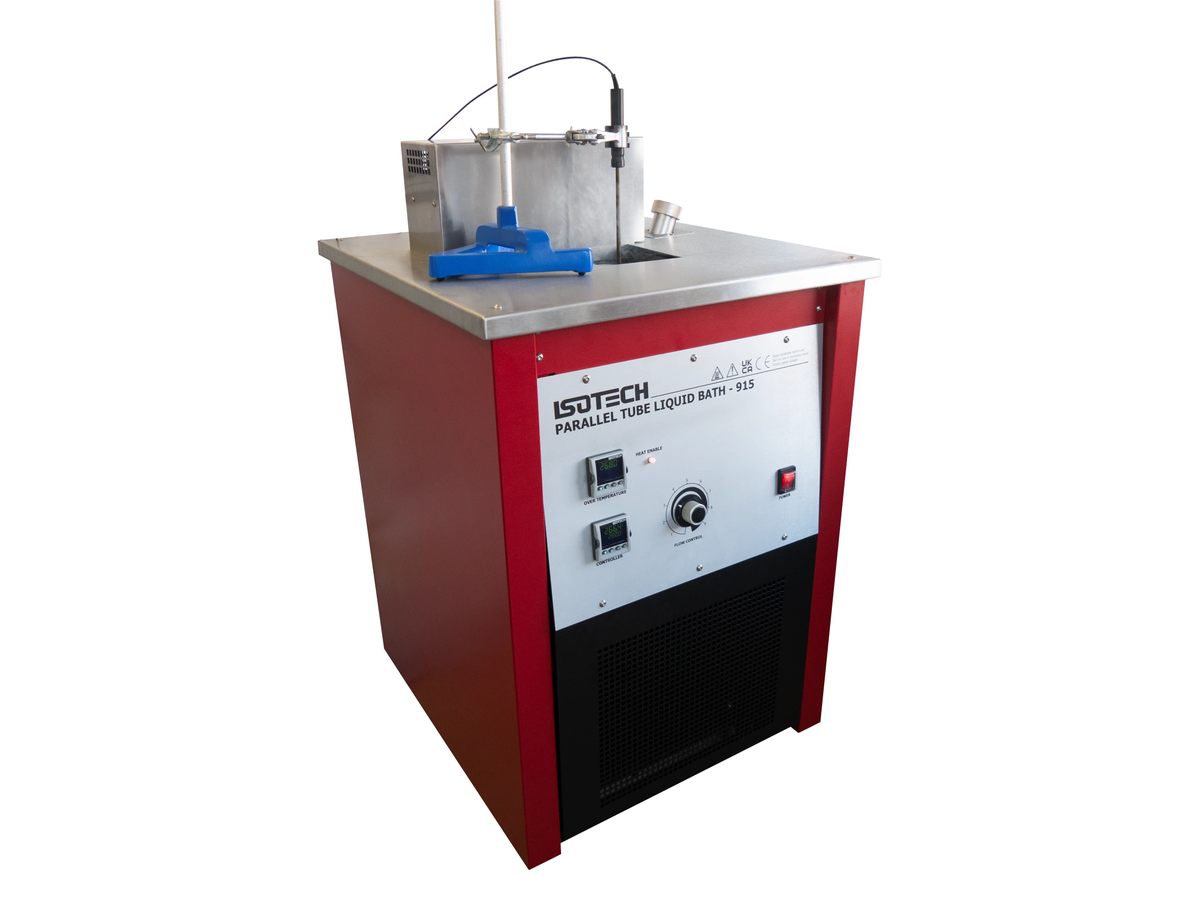

Precision calibration of thermometers calls for the use of stirred liquid calibration baths. The Hydra models set new standards in terms of price to…
