SPRT-909

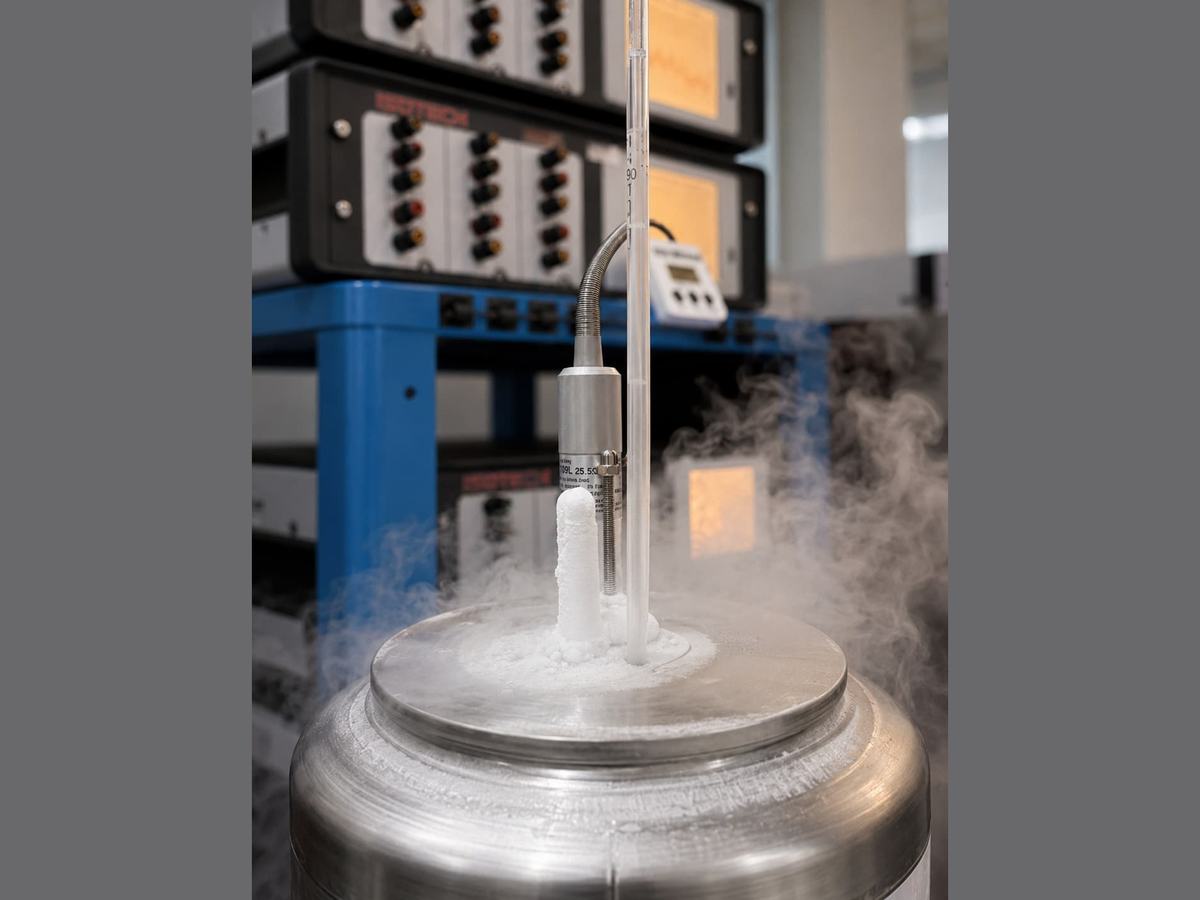

Isotech Model 909 SPRT

This economically-priced Standard Platinum Resistance Thermometer, Model 909, is the workhorse of calibration laboratories all over the world. During 2007 we reviewed our range of SPRTs and now have new models in the 909 family, the 909L and 909H. The wide temperature ranges and economic pricing make this thermometer ideal for the secondary laboratory. For smaller uncertainties to suit the Primary Laboratory refer to the Model 670 SPRTs.

Request a quoteDownload the datasheet

Isotech Model 909 SPRT

Features

  • Three Stem Lengths
  • Wide Operating Range
  • Proven Design
Isotech Model 909 SPRT

Description

The resistance element is of pure platinum, coiled and mounted in a strain free construction. The former is of pure alumina material and all parts have been pre-aged to eliminate contamination and strain. All joints are welded to minimize resistance changes. The leads are brought to a handle assembly where they are connected to a low loss cable, 2M long and screened.

The 909Q has a quartz sheath while the 909L and 909H have metal sheaths. Whilst metal sheathed thermometers appear more robust than the quartz glass models it should be noted that ALL SPRTs are fragile devices and must be handled with care.

Three thermometer lengths are available, standard length 480mm, extra length 550mm or maximum length 600mm.

Quartz glass thermometers have the advantage that the internal components are visible and can be inspected and continue to be our recommended models. The low temperature models have excellent immersion characteristics and a significant cost saving when compared to the higher temperature models.

The Model 909 is supplied with a calibration certificate giving RTPW and Wga. Alternatively we can provide a complete UKAS calibration certificate, see table opposite. For transportation and storage the Model 909 is supplied in its own attractive carrying case.

Specifications

Model909
RTPW25.5Ω 100Ω
Nominal Resistance25.5Ω at 0°C 100Ω
Recommended max. current mA1 0.5
Nominal Sensitivity0.1Ω/°C 0.4Ω/ °C
Resistance RatioWga>1.11807 as required by ITS-90
Self-heating1mK / 25 microwatts
StabilityDepends upon temperature range of use. Typical annual stability, see the table on the next page.
Internal Leads4 wire-platinum
External LeadsSilver-plated multi-strand wires in a low-loss insulation cable terminating in gold-plated terminals.
How to orderModel 909 specify model, resistance and length. State with UKAS Calibration or without UKAS Calibration. At fixed points or by comparison.

Documents

  • Model-798O

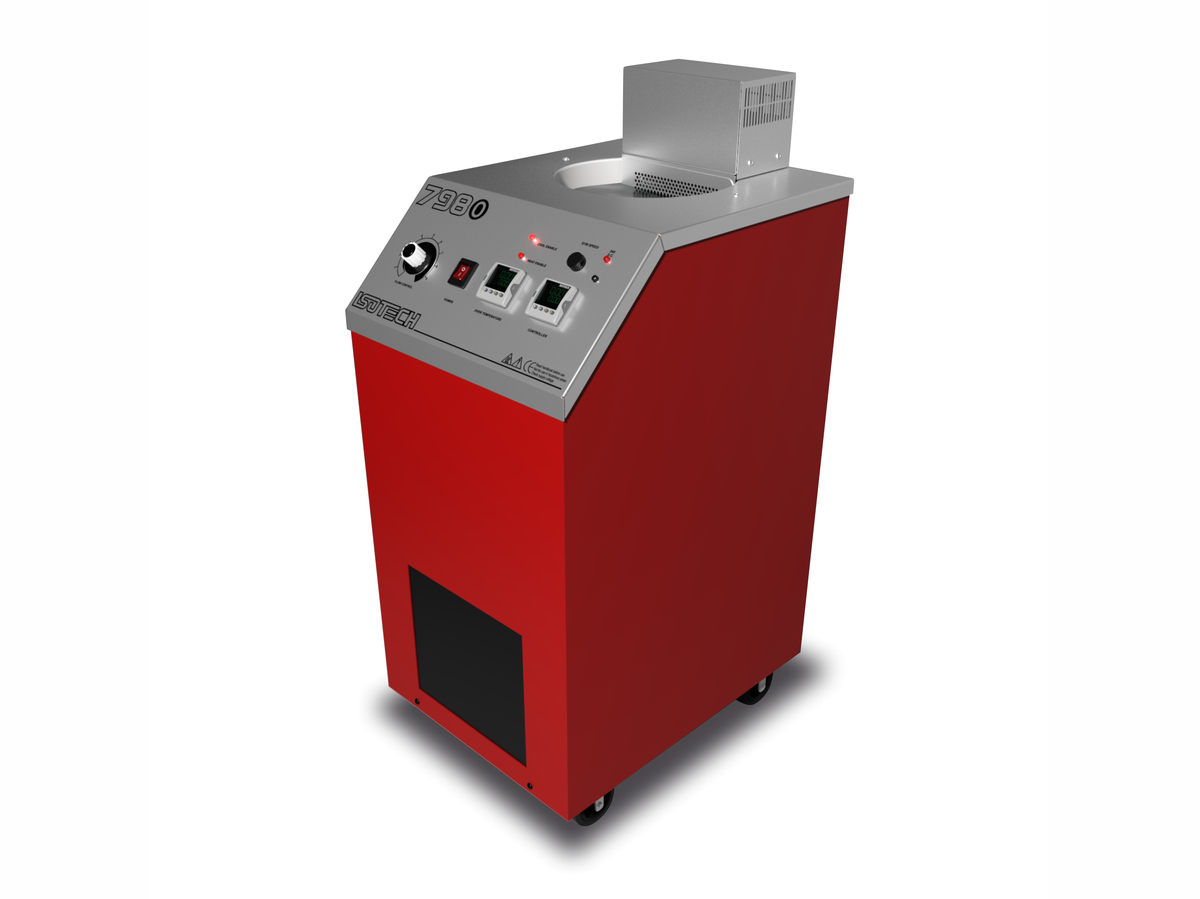

    798O Large Volume Stirred Liquid Bath

    The Isotech 798O Stirred Liquid Bath is an evolution in precision calibration that builds upon the legacy of the Isotech 798 series. This comparison…

  • Model-1600-NCJ

    Standard Thermocouple Model 1600 NCJ

    The Isothermal range of Thermocouple Standards are the result of many years development. The type R and S standards will cover the range from 0°C to…

  • Model-820

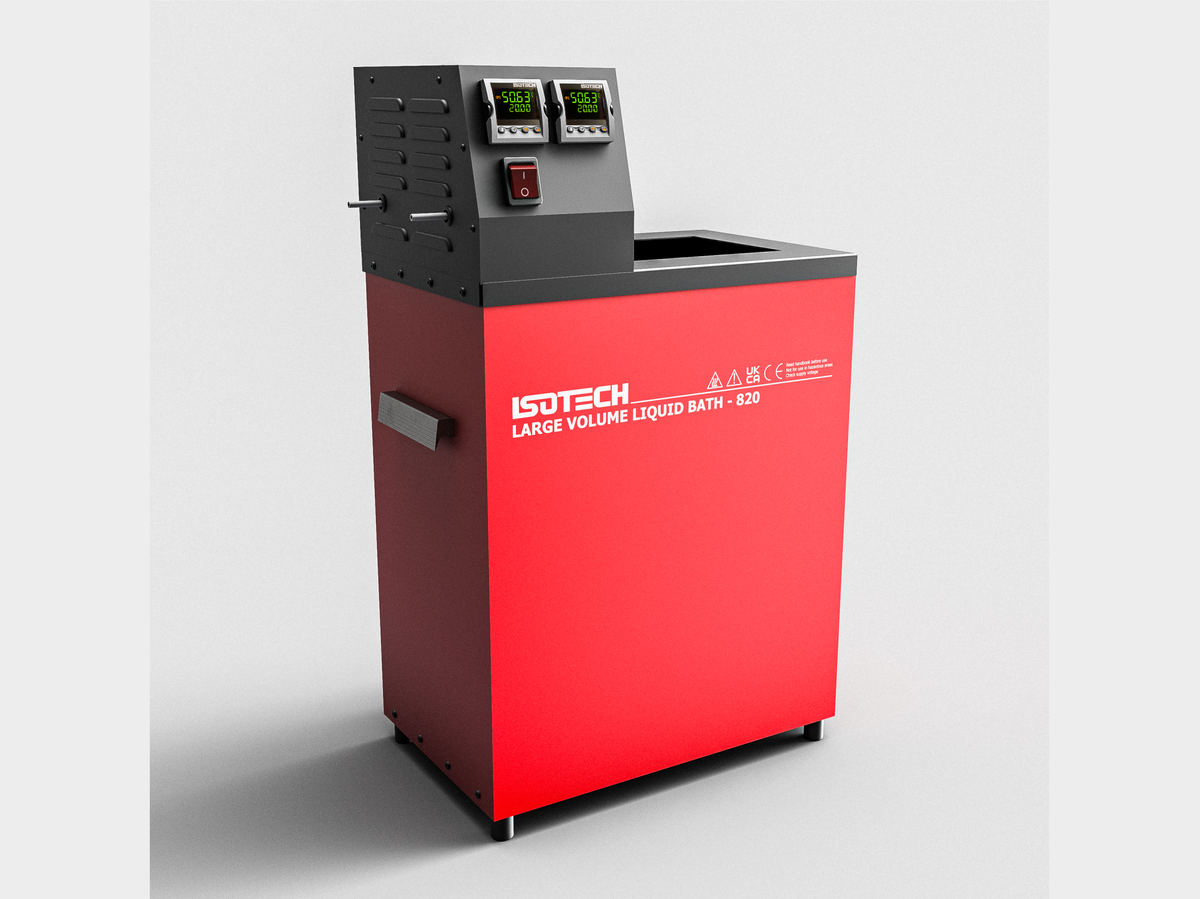

    Large Volume Liquid Bath Model 820

    If you have a large number of sensors to calibrate then this economically priced stirred liquid bath is the solution.

  • Model-18205

    Nitrogen Boiling Point Apparatus Model 18205

    Isotech Nitrogen Boiling Point Apparatus is designed specifically to realise and maintain the liquid/vapour equilibrium (boiling point) of nitrogen…

  • Hydra-798-Series

    Hydra Model 798

    Precision calibration of thermometers calls for the use of stirred liquid calibration baths. The Hydra models set new standards in terms of price to…

  • Saturn-877

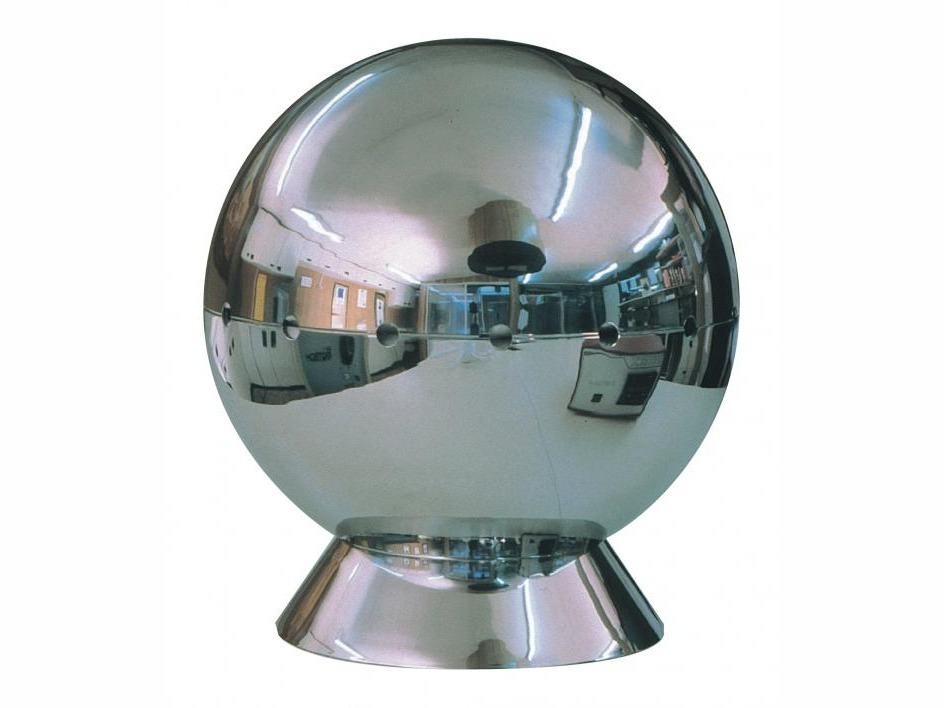

    Saturn Model 877
