Model-820

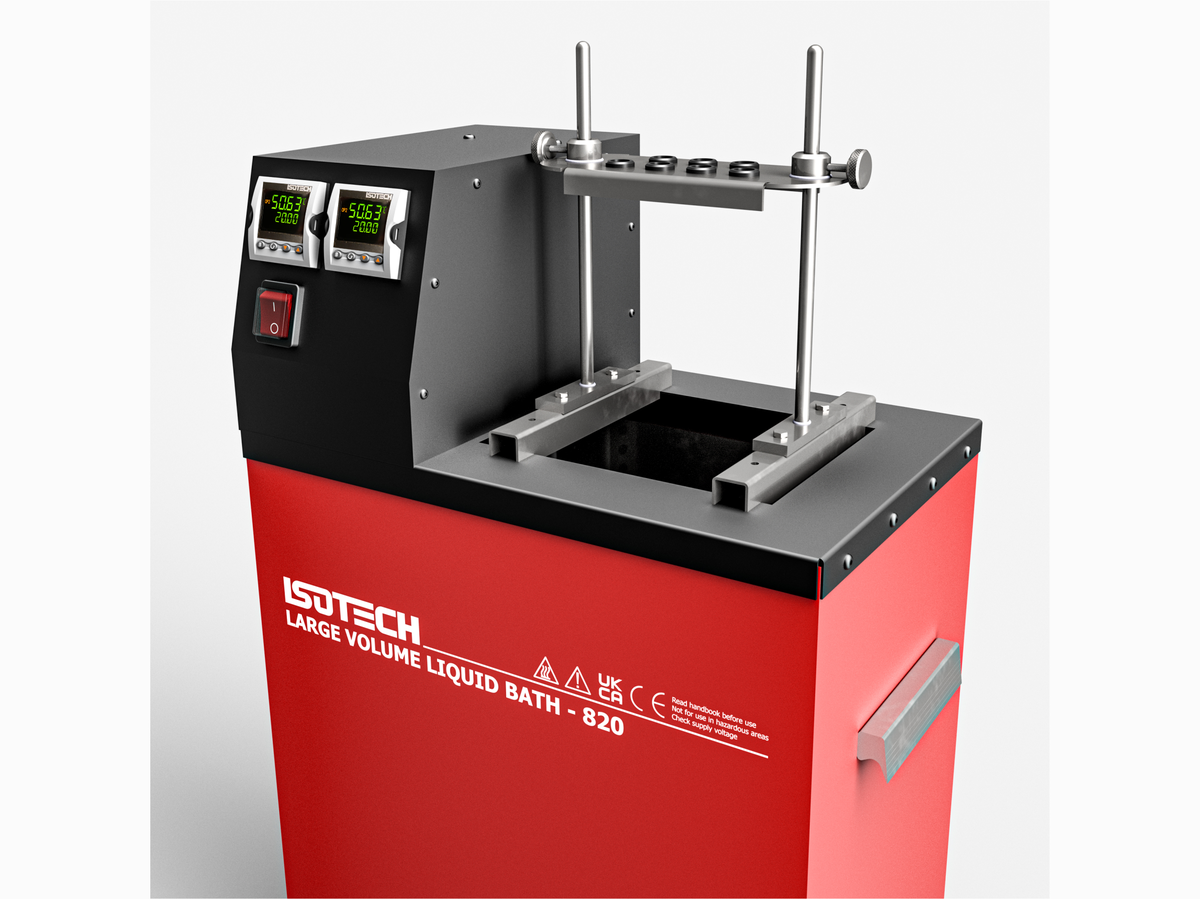

Large Volume Liquid Bath Model 820
If you have a large number of sensors to calibrate then this economically priced stirred liquid bath is the solution.
Request a quoteDownload the datasheet
Features
- Large volume for calibration of a number of sensors,
- Good comparison accuracy ±0.01°C
Description
The 820 bath has been introduced to provide a liquid calibration bath with a large volume. This is to allow the bath to be used with many temperature probes simultaneously immersed in the bath or with accessories. It may also be used to maintain standard resistors at a constant temperature.
The liquid in the bath is heated to the set temperature and circulated by a propeller system.

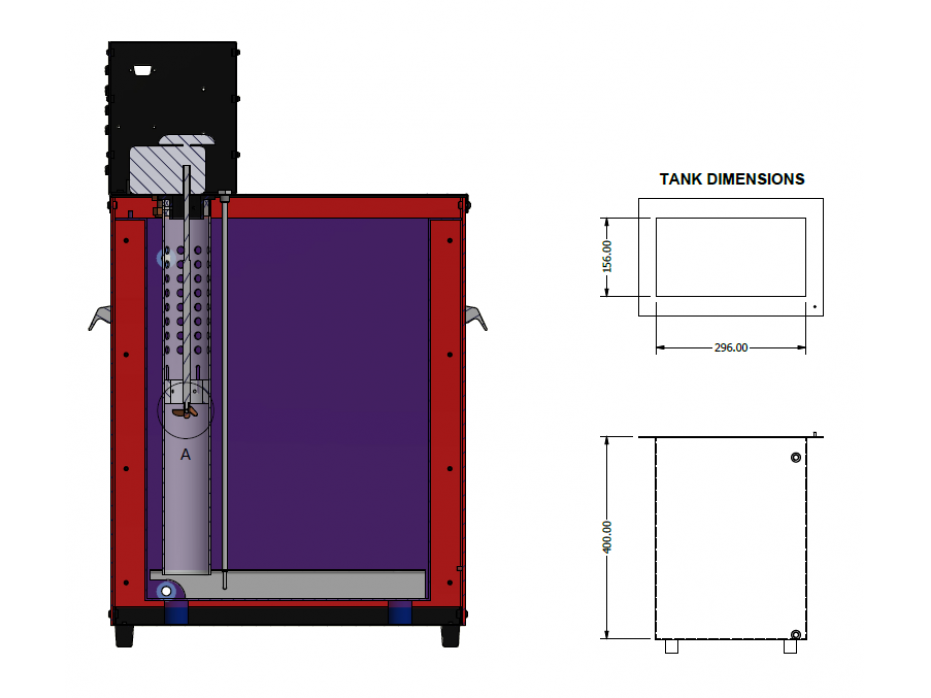

The Aquarium is of robust construction and the liquid is contained in a stainless steel insulated enclosure which has a calibration volume 185mm long x 140mm wide x 300mm deep.
Refer to ‘Liquid Selection Guide’ on page 73 for information on liquids and important Health and Safety Information.
Specifications
| Model | 820 |
|---|---|
| Temperature Range | 30°C to 200°C |
| Volume | 185 x 140 x 300mm (15 litres) |
| Absolute Stability | ±0.003°C (direct in water, 50°C), ±0.020°C (direct in VH Oil, 200°C) |
| Uniformity | 0.005°C – between corners at 100°C depth |
| Heating time | 50°C to 200°C < 145 minutes (VH Oil) |
| Communications | Includes serial interface, PC Cable and Software. |
| Dimensions | Width 240mm, Depth 378mm, Height 645mm overall. |
| Weight | 17kgs |
| Safety | Compliant to CE Regulations |
| Power | 1kW 108-130 or 208-240Vac 50/60Hz |

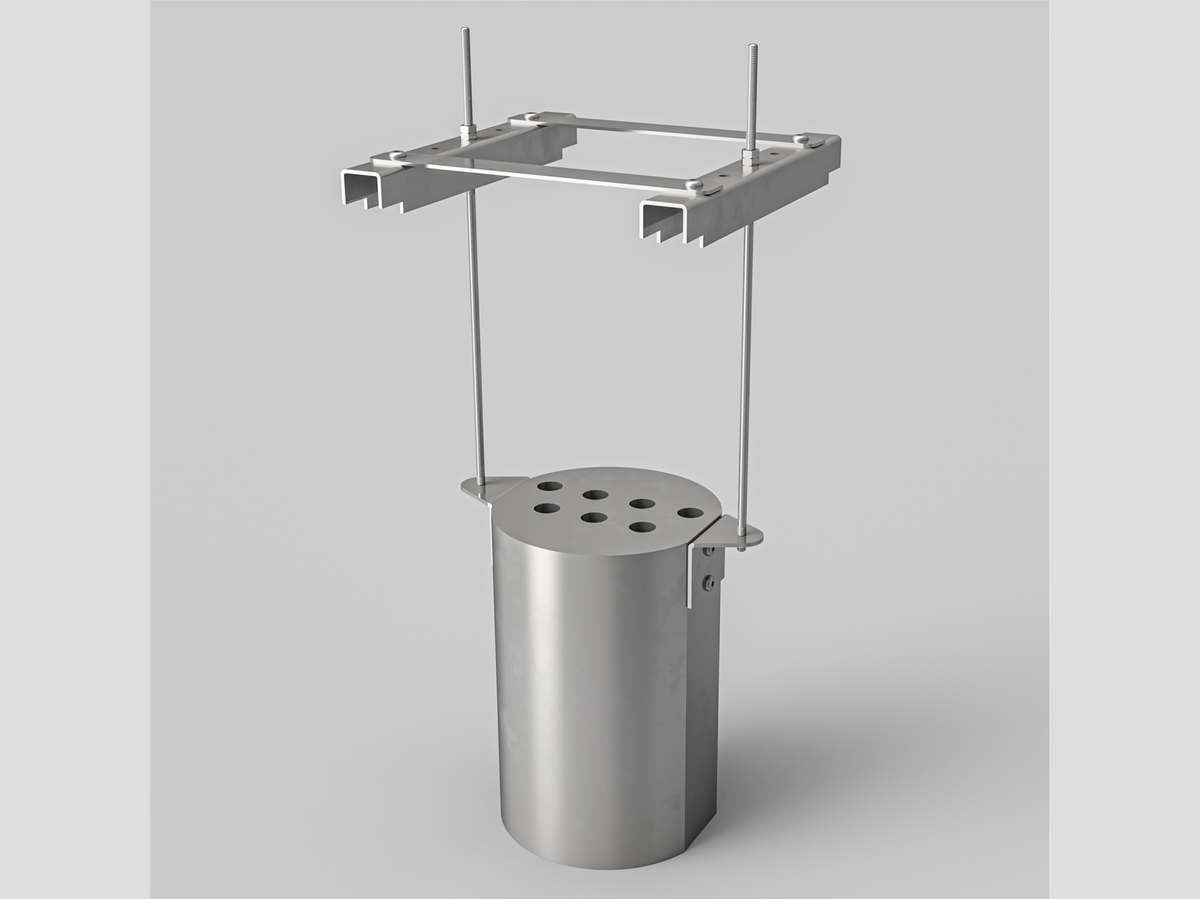

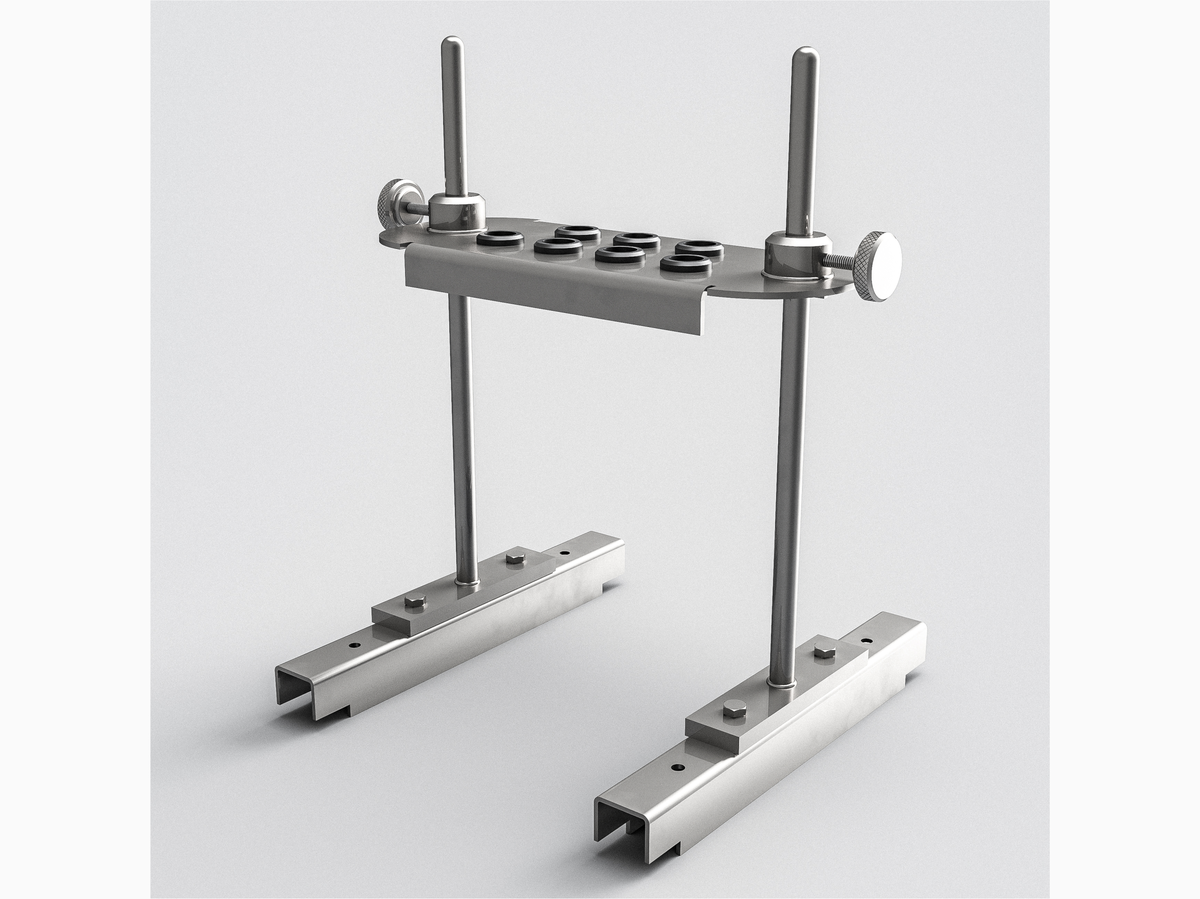

| Accessories | 820/01 Standard Resistor Holder, 820/02 Standard Aluminium Equalising Block, 820/02S Special Drilling Equalising Block, 915/07 Medium Viscosity Oil 40°C to 180°C, 915/09 VH Temperature Oil 50°C to 288°C, 932-19-72 Standard Resistor Oil |
| How to order | 820 Large Volume Liquid Calibration Bath. Please specify voltage required. |
