THB S
THB S Environmental Conditions Sensor
THB sensor is a device measuring ambient conditions, it cooperates with:
Request a quoteDownload the datasheet
Overview
THB sensor
THB sensor is a device measuring ambient conditions, it cooperates with:
- a computer (1 sensor via USB 2.0 port); direct cooperation,
- a weighing device (1 sensor via USB 2.0 port); direct cooperation,
- a THBR Box (up to 4 sensors connected to THBR Box via USB 2.0 port).
The THB sensor is designed to measure parameters such as temperature, humidity, pressure, air density and vibrations level. Sensor registers level of permissible vibrations at the workstation, wherein the values of vibrations level are displayed within 0 - 100% range versus reference values in laboratory conditions. Values exceeding 100% threshold inform about potential occurrence of error greater than permissible error of mass measurement performed using weighing device.
Each sensor has its own identification number that is assigned to measurements saved to the database.
Ambient conditions can be monitored using:
- weighing instrument display
- website
- Windows OS application: THB Singleor THB Multi
- Android application.
On the basis of sent measurements, the THB Single or THB Multi software determines air temperature, humidity, pressure, density and permissible vibrations factor.
Metrological parameters
| Temperature readability [d] | 0,01 °C |
|---|---|
| Temperature measurement accuracy | ± 0,1 °C |
| Measured pressure range | 850 – 1050 hPa |
| Pressure readability [d] | 0,1 hPa |
| Pressure measurement accuracy | 1 hPa |
| Measured humidity range | 0 – 100 % |
| Humidity readability [d] | 0,1 % |
| Humidity measurement accuracy | ± 1,8 % |
| Air density determination | YES |
| Measured temperature range | +5 – +45 °C |
Datasheet
| Communication interface | USB 2.0 |
|---|---|
| Vibrations detection | YES |
Ambient conditions
| Operating temperature | +5 – +45 °C |
|---|
Physical parameters
| Net weight | 0,3 kg |
|---|---|
| Gross weight | 0,44 kg |
Documents
Related instruments
AS 220.5Y Analytical Balance
AS 5Y Analytical Balanceshave a comfortable10-inchtouchscreen display. A large display means more information at the same time. In addition, this…
PS 750.X7 Precision Balance
PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10100 g; both of these parameters vary…
XA 220.5Y Analytical Balance
It tells the user which way he should level the balance. The system guides the user step by step, which minimizes the risk of errors during levelling…

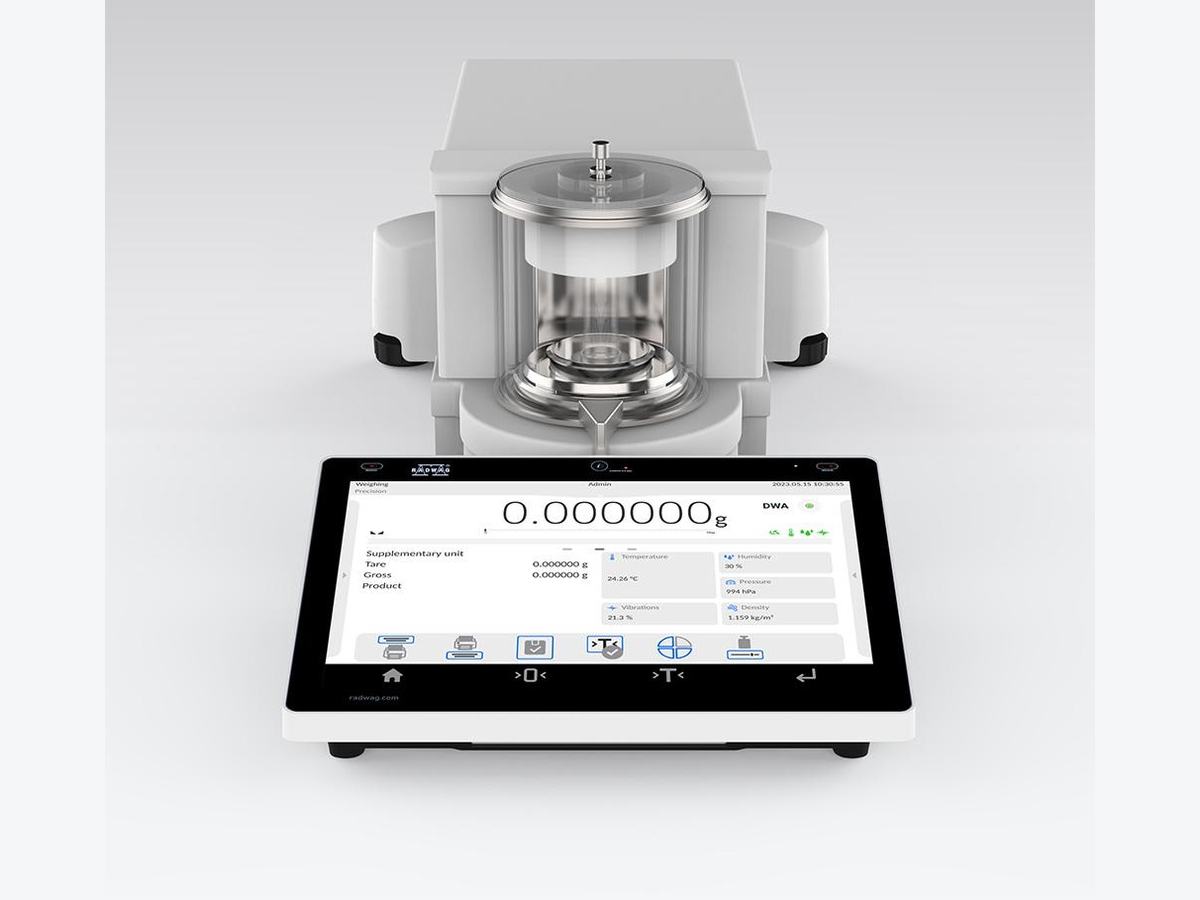

MYA 21.5Y.P Microbalance
Microbalances for pipettes calibration are highly accurate laboratory balances used to check that a pipette is drawing the correct amount of liquid…
MYA 21.5Y Microbalance
MYA Microbalances have the world’s lowest reading unit [d] 1 μg and the lowest minimum weight [USP] 0.82 mg. They are equipped with an automatic…
XA 110.5Y.F Analytical Balance
XA 5Y.F Analytical Balances are used in quality control processes, where accurate weighing of filters is used to assess filtration efficiency or to…

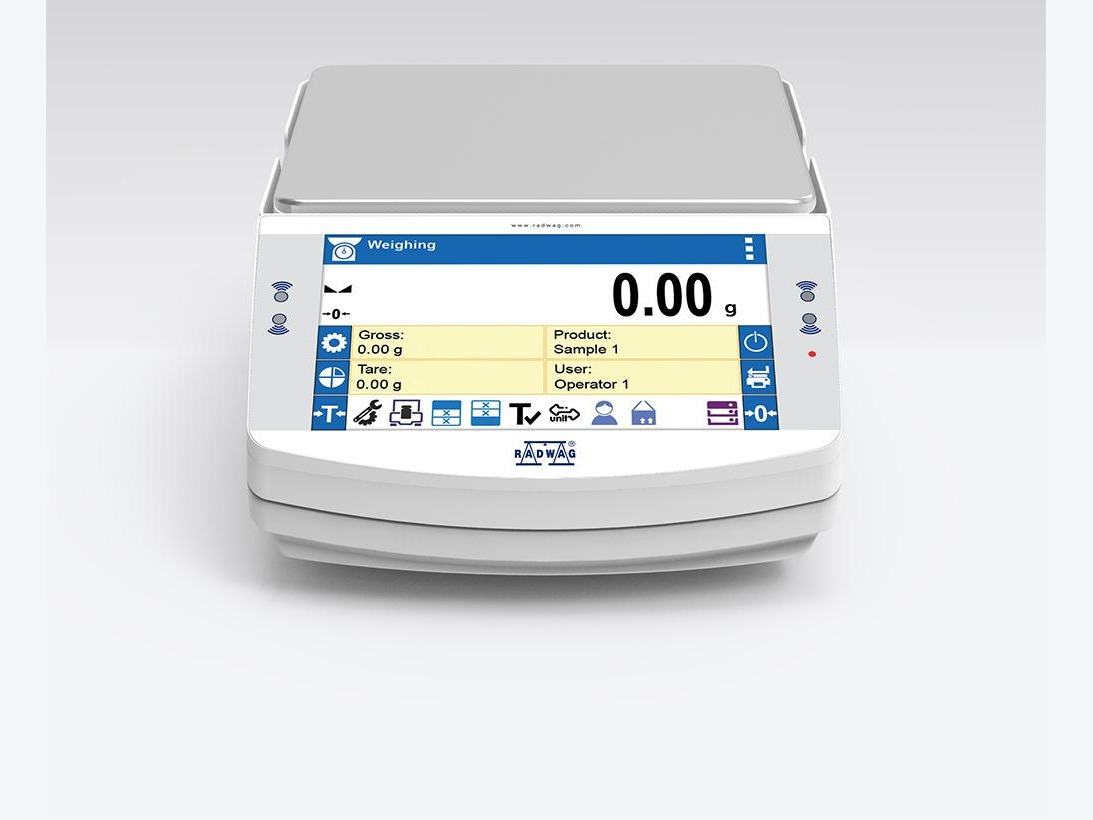

PS 360.X7 Precision Balance
