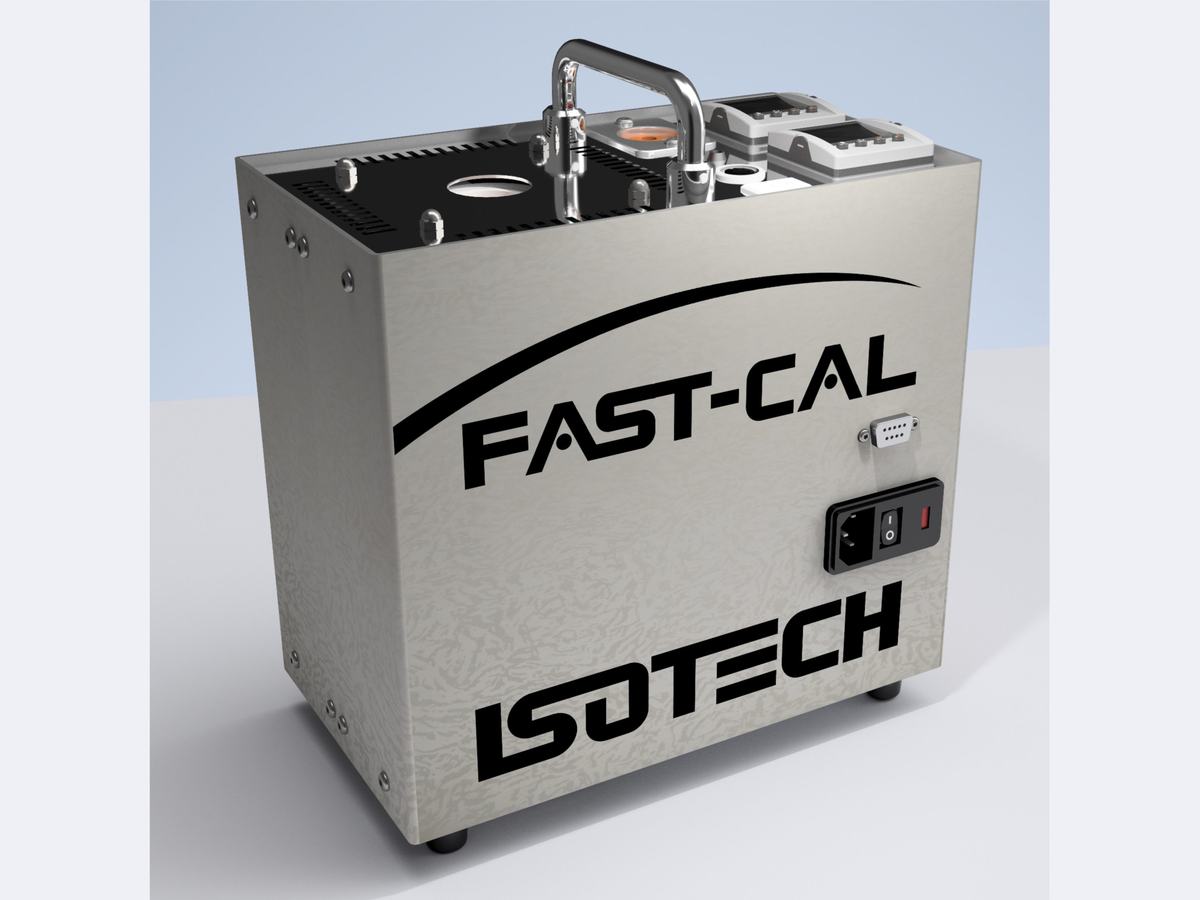

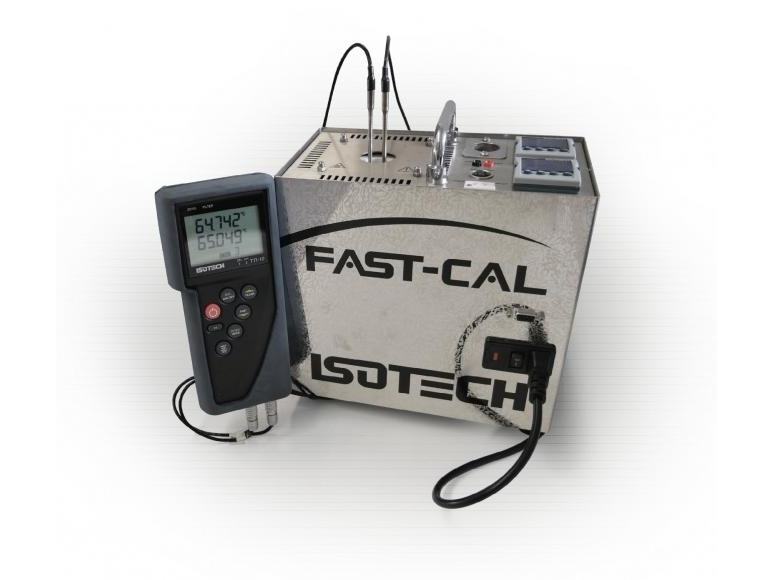

Fast-Cal-Medium
Need advice on which model? Dry Block Selection Guide
Request a quoteDownload the datasheet
Fast-Cal – the product range you designed !
During early 2004 20 experienced engineers from many parts of the world were asked to produce their ideal specification for industrial calibration. Their top ten requirements, in order of priority, are: Rugged, Lightweight, Easy to use on site, Low cost/high benefit ratio, Fast response, high stability, Time saving features, Multiple sensor testing, Software, Modern design, Compliant with the latest regulations.
One model is ideal for the validation of Washer Disinfectors, Steam Sterilisers and Autoclaves. In place of a removable insert it has a fixed block with pockets for a reference probe and the type of test sensor commonly used in validation applications.
| Range at 20°C | 30 to 350°C |
|---|---|
| Stability | 0.03°C |

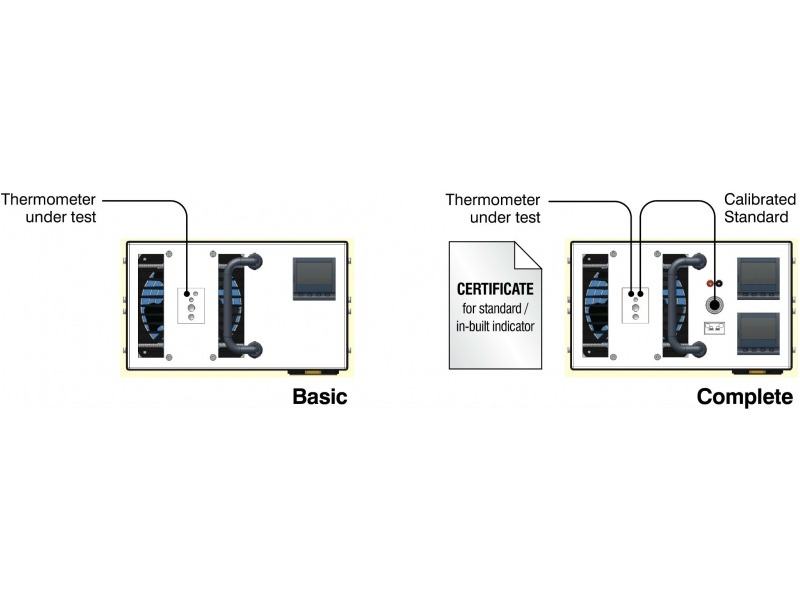

| Accuracy – basic | ±0.3°C |
| Accuracy – complete (2) | ±0.2°C |
| Heating Time | 50 to 350°C in 15 minutes |
| Cooling Time | 350 to 100°C in 40 minutes |
| Calibration Capacity | 148mm depth 25mm Ø |
| Power | 750W |
| Traceable Certificate | Included |
| UKAS Certificate | Extra |
| PC Communications | Included |
| Software | Included |
| 4-20mA Input | Complete Models |
| Ramps and Dwells | Yes with Software |
| Dimensions | 228 x 248 x 143mm |
| Weight | 6.35kg |

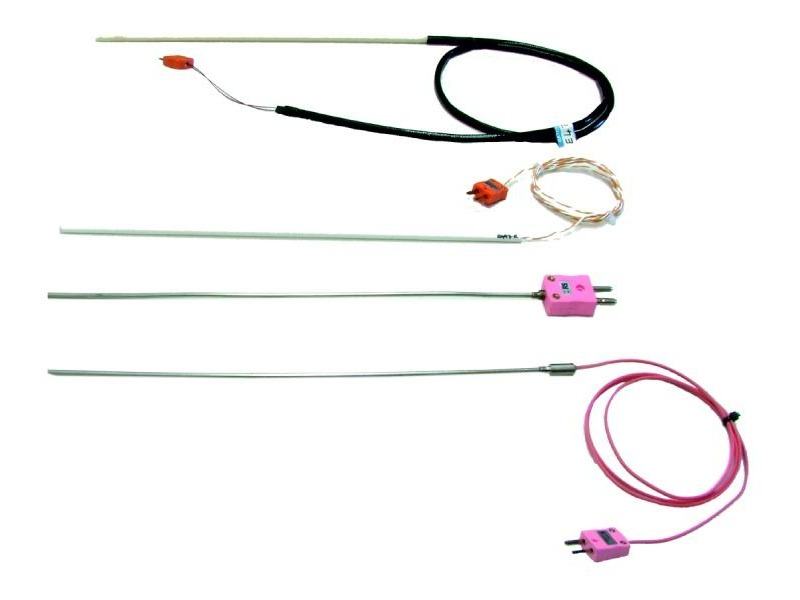

These thermocouples are suitable for use as references in Isotech Dry Blocks and for use with temperature indicators. Details of our laboratory grade…

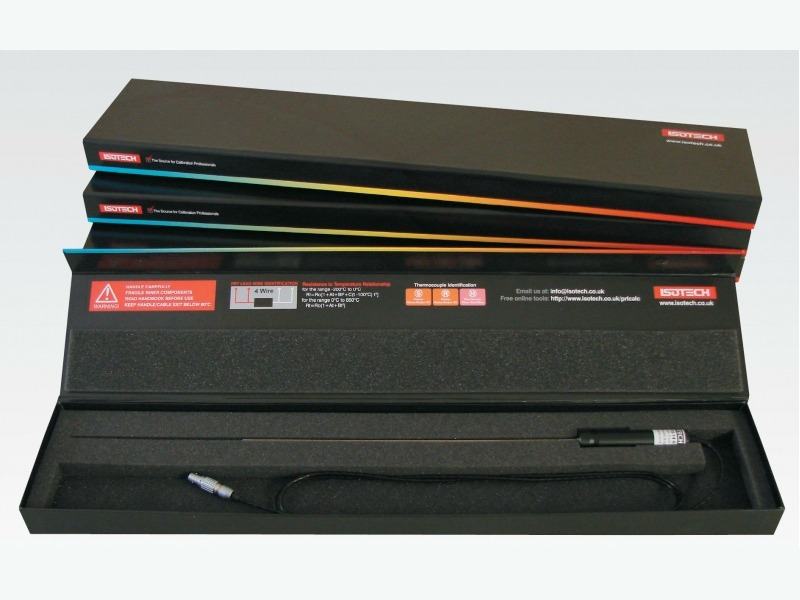

Isotech Semi-Standard Platinum Resistance Thermometers are designed for applications requiring high accuracy, good long-term stability and greater…

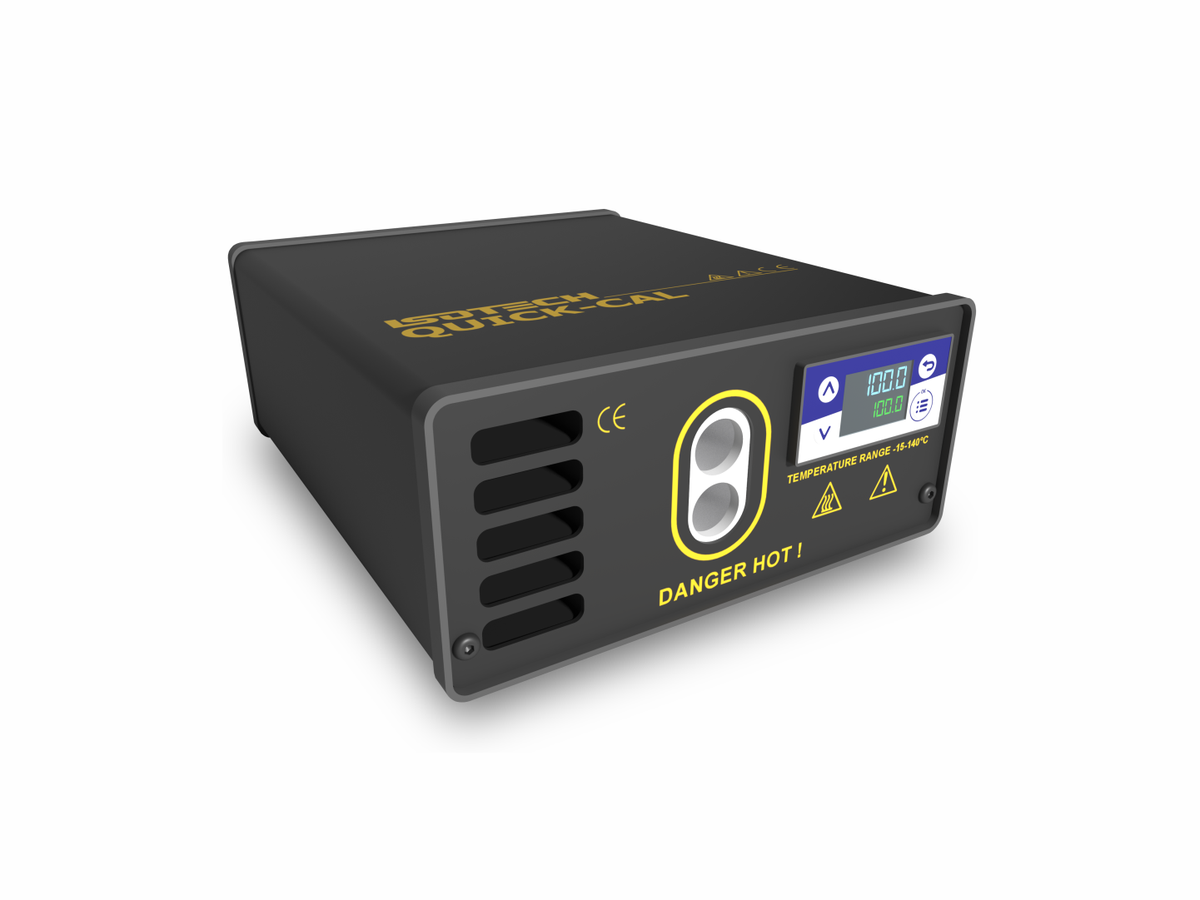

Isotech’s Quick Cal range of testers are ideally suited to the less exacting applications where our larger, better specified baths are unnecessary.

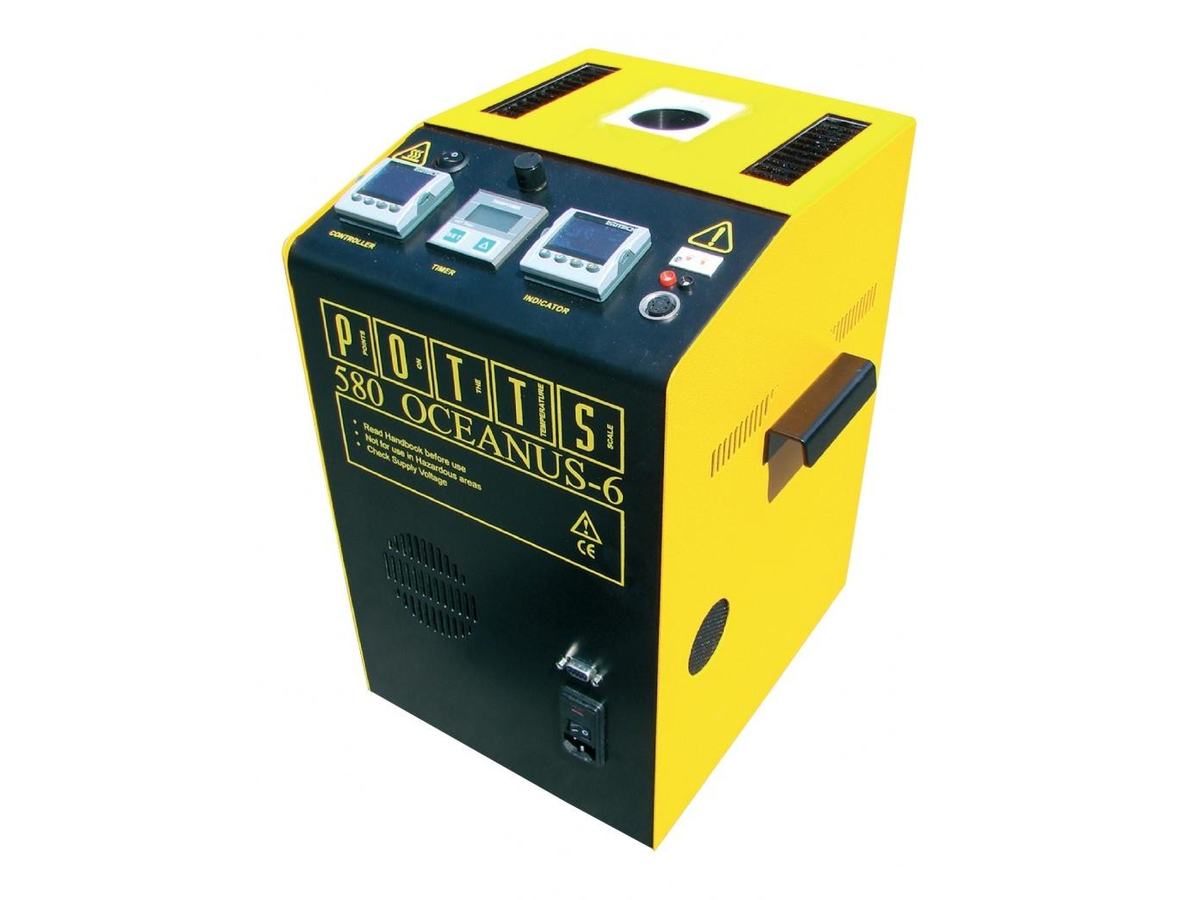

The Oceanus-6 PLUS has all the advantages of the Isocal-6 models but with a substantially larger calibration volume, 50mm diameter by 300mm deep. The…
