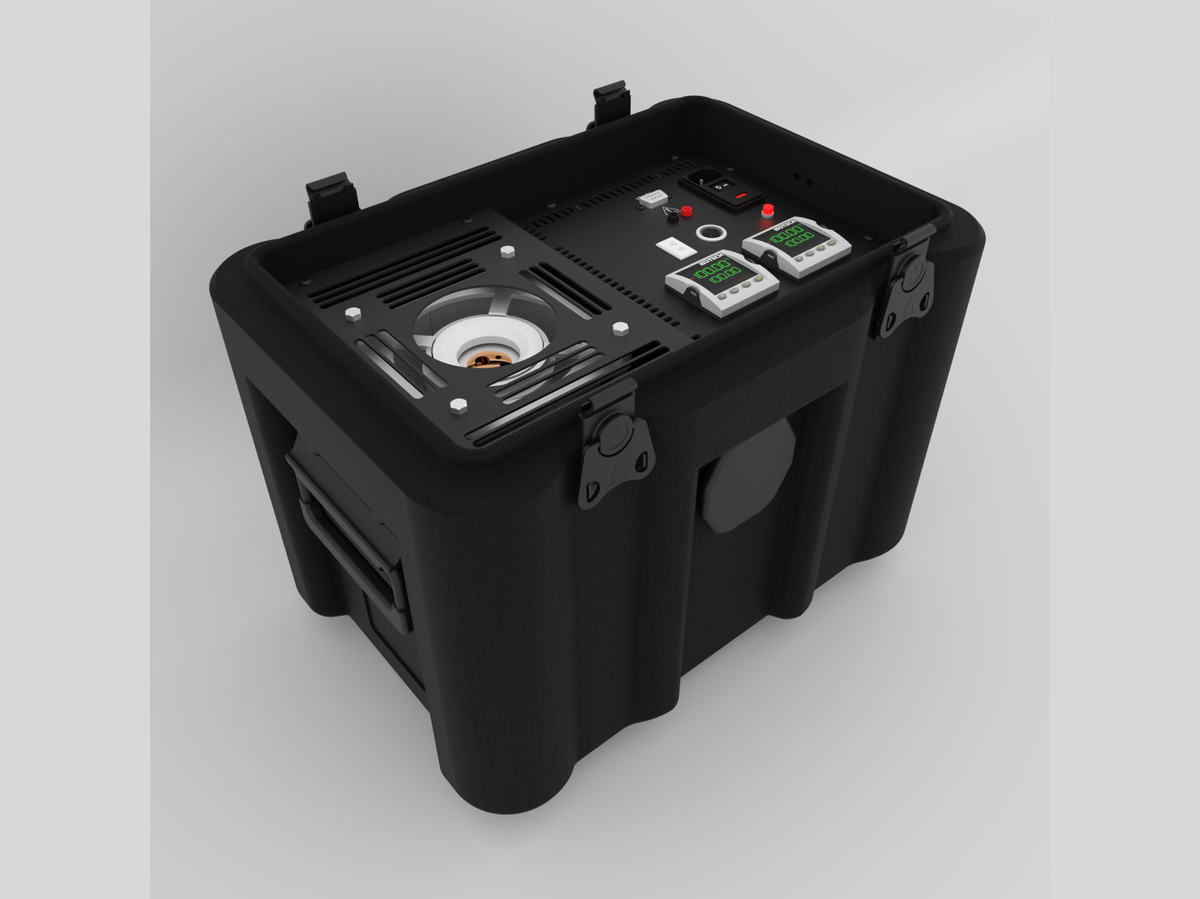

Model-787
The Model 787 calibrator redefines industry standards by blending industry leading performance and speed of operation within a robust design tailored for extreme conditions. The maximum operating temperature is 660°C allowing wide range of senor types to be calibrated to high temperatures.
Request a quoteDownload the datasheet
Like its counterpart, the low-temperature Model 786, this unit was initially crafted for the rigorous demands of the US Navy, it conforms to stringent military standards, undergoing bench, bounce, and altitude testing. Encased in a high-impact resistance shell, its removable lid conveniently houses all the essential accessories. Other calibrators lack
the protection offered, for terrain, transit and storage the Model 787 is unrivalled.
Beyond its robust design, Model 787 is unparalleled in protection and functionality, offering unique reference channel input options, datalogging, and other advanced features.
| Temperature Range* | 35°C to 660°C |
|---|
| Stability | ±0.03°C |
|---|---|
| Display Resolution | 0.01°C over whole range |
| Indicator Units | °C, °F, K |
| Interface | Ethernet, USB Host |
| Accuracy: RTD Input Channel | ±0.05°C ±0.005% RDG |
| Accuracy: Thermocouple Input Channel | E,J,K,N: ±0.2°C @ 660°C R: ±0.6°C S: ±0.7°C @ 660°C T ±0.2°C @ 150°C |
| CJC Accuracy | ±0.35°C |
| Stability | ±0.03°C to ±0.05°C |
|---|---|
| Display Resolution | 0.01°C from -40.00°C to 99.99 0.1°C: 0.01°C over PC Interface |
| Indicator Units | °C, °F, K |
| Interface | Serial |
| Display Accuracy | ±1°C (500°C) ±2°C (650°C) |
|---|---|
| Radial Uniformity | <0.08°C |
| Axial Uniformity | <0.5°C |
| Heating Time | 35°C to 660°C in 30 minutes |
| Cooling Time | 660°C to 100°C in 90 minutes |
| Ingress Protection | IP56 |
| Storage Temperature | -30°C to +71°C |
| Humidity | 0 to 90% (non-condensing) |
| Insert Dimensions | 25.4mm Diameter x 152mm Deep |
| Insert Pockets | 4.50mm, 4.50mm, 6.50mm, 8.00mm, all 148mm deep, M4 tapped hole for supplied extractor tool. |
| Power | 110 or 230 Vac, 50/60Hz, 800 Watts |
| Dimensions | Height 350mm Width 400mm Depth 275mm |
| Weight (nominal) | 18kg |

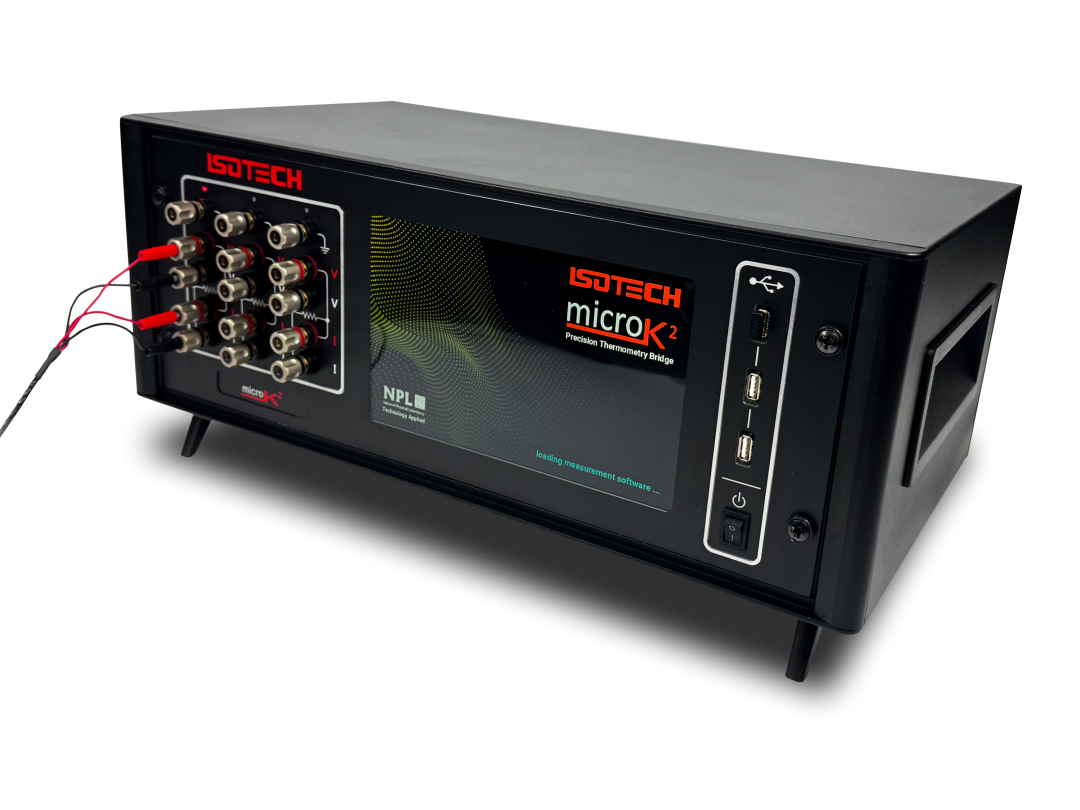

The microK² builds on the success of the original microK models that were quickly adopted by leading National Metrology Institutes and commercial…
