Quick-Cal-High
Quick Cal High
Isotech’s Quick Cal range of testers are ideally suited to the less exacting applications where our larger, better specified baths are unnecessary.
Request a quoteDownload the datasheet
Description
The Low Temperature Quick Cal covers the temperature range of -12°C to +140°C, making it ideal for the medical, sterilisation and food industries.
The High Temperature Quick Cal covers the temperature range from 30°C to 350°C.
Both have interchangeable inserts, so you don’t have to buy another calibrator each time you find a new diameter sensor to calibrate. The Low Temperature Quick Cal is particularly exciting since it can work from a small 12 volt battery, making it truly portable, alternatively a mains supply is available with 100V – 240V, 50/60Hz input.
The Low Temperature Quick Cal comes complete with two inserts, one blank and one drilled 6.8mm diameter 120mm deep. Alternatively we can provide pre-drilled inserts to suit your needs. Each calibration well is 13mm diameter and 120mm deep.
The High Temperature Quick Cal has a single larger well and interchangeable inserts, 25mm in diameter by 120mm deep. Blank and other special drillings are available to order. The High Temperature Quick Cal is supplied 100-130 or 200-250V AC, 50/60Hz.
The manual which accompanies the Quick Cal contains helpful advice on how to get the best from your calibrator.

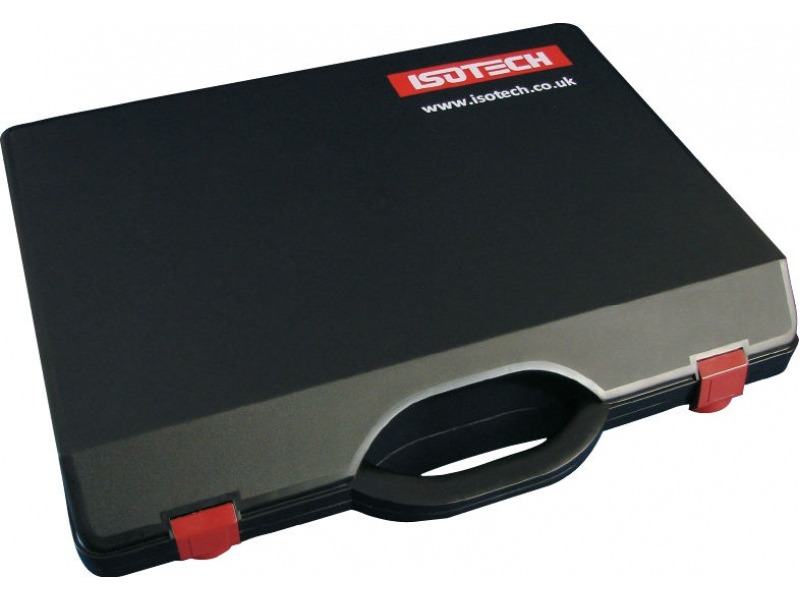

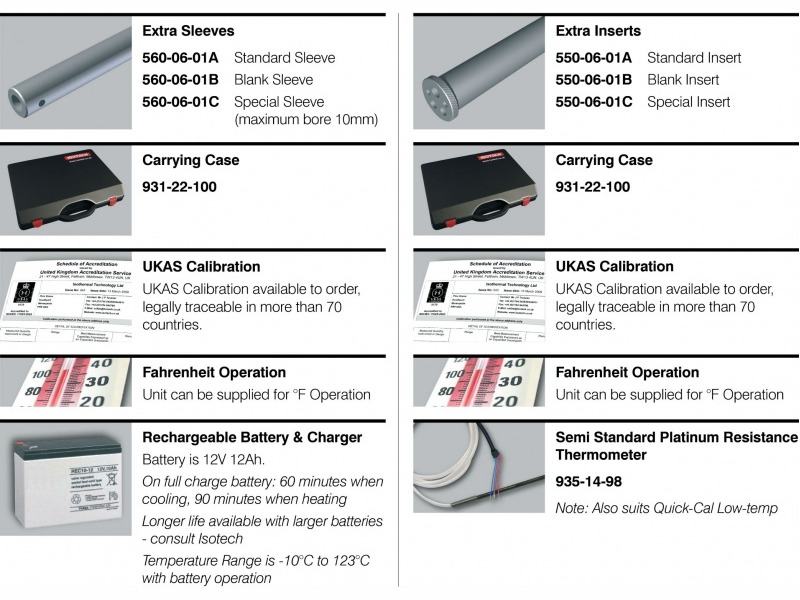

Accessories for the above include a carry case, alternative inserts and a rechargeable battery for the Low Temperature Quick Cal.
Specifications
| Temperature Range | +30°C to 350°C in an ambient of 20°C |
|---|---|
| Set Point Resolution | 0.1°C over range |
| Accuracy | ±0.1°C to ±0.4°C using comparison techniques. <100°C ±0.4°C against display temperature with a single probe in the 4.5mm pocket. >100°C ±1.5°C against display temperature with a single probe in the 4.5mm pocket. |
| Stability | ±0.05°C |
| Time to set point | 9 minutes from ambient to 350°C |
| Additional time for best stability | Typically 5 minutes |
| Calibration Volume | 25mm diameter, 120mm deep. Supplied with insert, 5 pockets, 8mm, 6.5mm, 6.5mm, 4.5mm, 4.5mm, all 115mm deep. |
| Voltage | 100-130V or 200-240V, (50/60Hz) |
| Power | 350W |
| Dimensions | Height 65mm, Width 152mm, Depth 175mm, Weight 1.5kg |
