SPMK212C

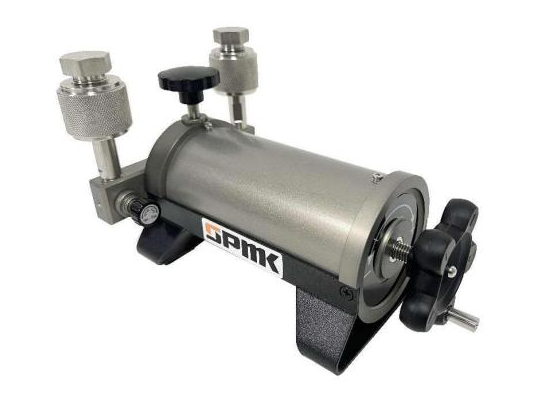

SPMK212C Low Pressure Pump

SPMK212C pressure source is a high precision pneumatic handheld pressure generator. It provides stable micro pressure from -0.5 to 0.5bar (-7-7psi). Its Hard oxidation treatment makes it wear-resistant, and scratch-resistant. The simple structure and easy operation make it a perfect equipment for calibrating differential pressure gauges, pressure transmitters, pressure sensors, and other low pressure (vacuum) instruments.

Request a quote

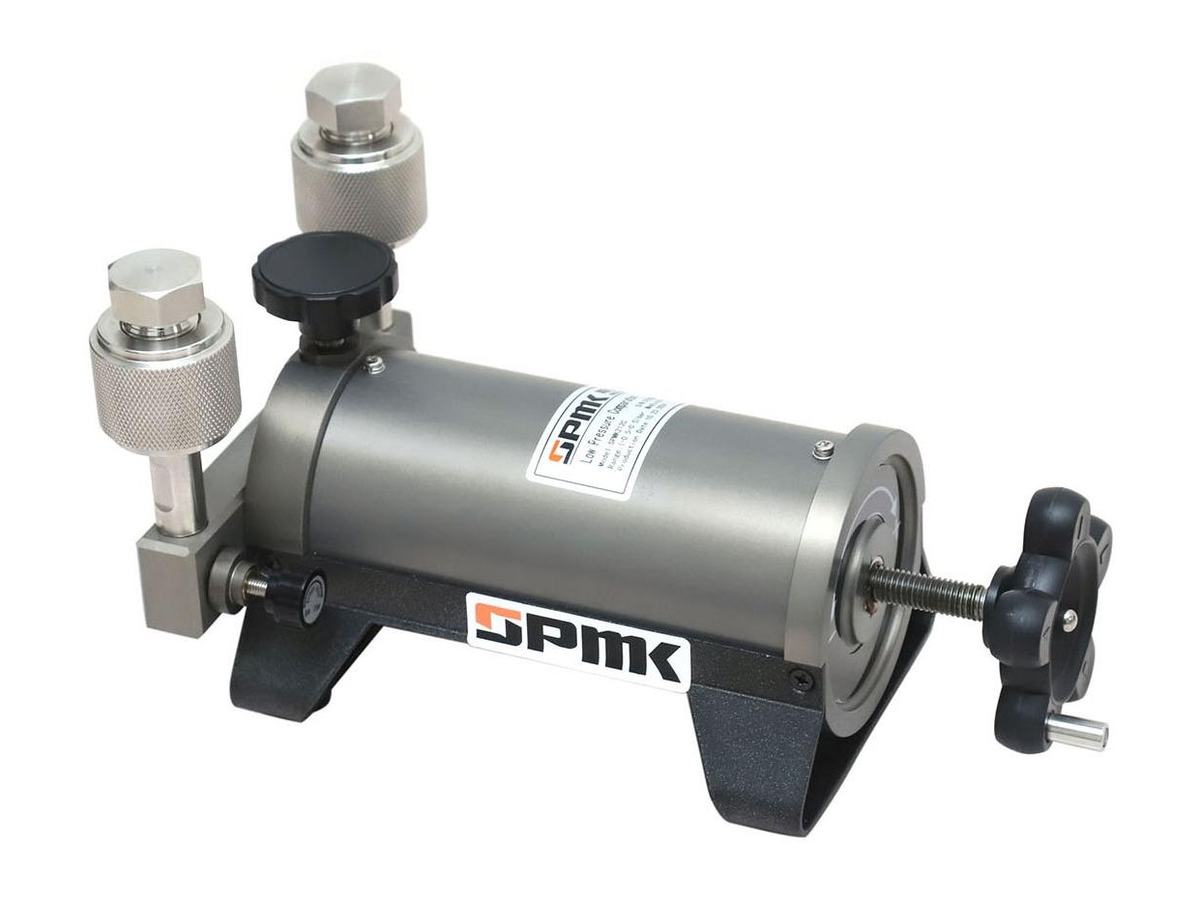

SPMK212C Low Pressure Pump
  • Pneumatic type, Perfect pressure stability
  • Net weight 1.5kg, easy to carry
  • Special Hard oxidation treatment surface

Feature

  • Pressure Range: -0.5-0.5bar, -7-7psi
  • Perfect pressure stability
  • Quick connector makes it easy and fast to connect the under tested device
  • Light weight, easy for filed and lab usage
  • Fine adjustment screw of 0.01Pa
  • Hard oxidation treatment, wear-resistant, scratch-resistant.

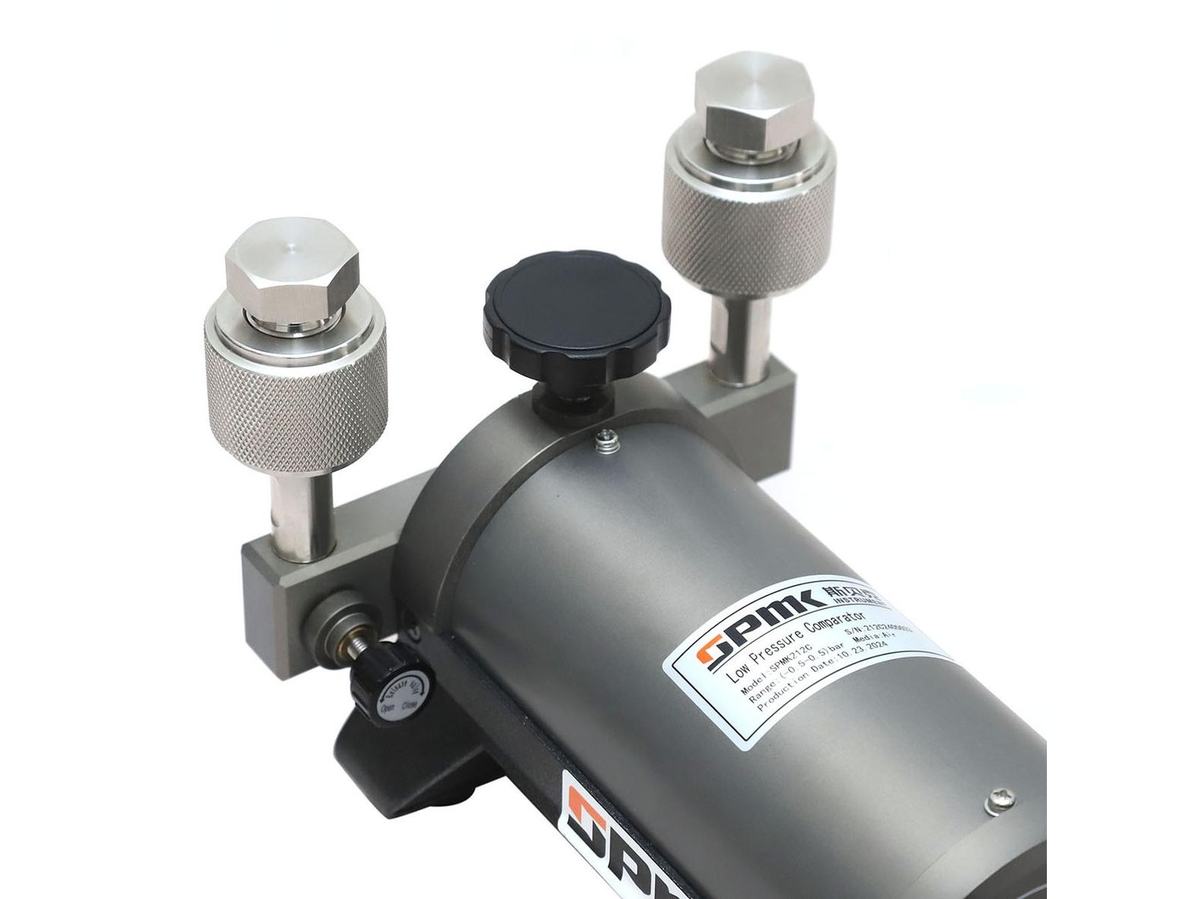

SPMK212C Low Pressure Pump

Specifications

MediaAir
Pressure range-0.5-0.5bar; -7-7psi
ConnectionM20*1.5, 1/4NPT, 1/4BSP, 1/2NPT, 1/2BSP Female. Please confirm 1 or 2 thread type from above.
Dimension240*130*130mm
Weight1.5kg
AccessoriesUser’s manual, Plugs, O rings
PackageCarton box + Thicken foam (Aluminum or Trolley case are optional and cost extra)
ShippingBy air express
