SPMK213E

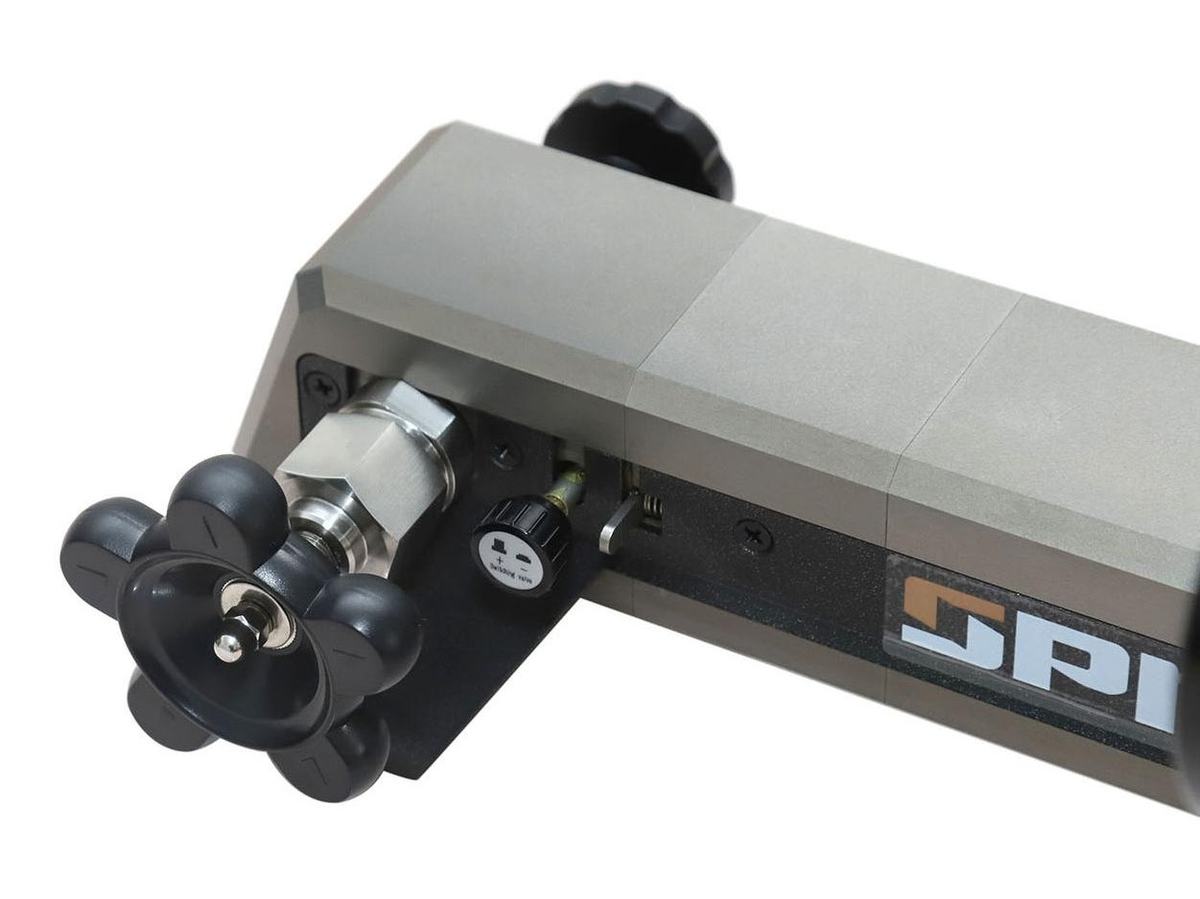

SPMK213E Pneumatic Pressure Pump 100bar ((-0.95-100)bar Air Media 5.5kg)

SPMK213E pressure calibration pump is one high pressure pneumatic type. It provides stable high pressure from -0.95 to 100bar (-14-1500psi). The hard oxidation treatment makes it wear-resistant and scratch-resistant. The special structure makes it easier to generate high pressure. It is a perfect equipment for calibrating pressure gauges, pressure transmitters, pressure sensors, and other pressure (vacuum) instruments.

Request a quote

SPMK213E Pneumatic Pressure Pump 100bar ((-0.95-100)bar Air Media 5.5kg)

Feature

  • Pressure range -0.95 to 100bar (-14-1500psi)
  • Perfect pressure stability
  • Hand tight quick connector, easy to connect the under tested device
  • Light weight, easy for filed and lab usage
  • Fine adjustment screw of 1Pa
  • Hard oxidation treatment, wear-resistant, scratch-resistant.
SPMK213E Pneumatic Pressure Pump 100bar ((-0.95-100)bar Air Media 5.5kg)

Specifications

MediaAir
Pressure range-0.95-100bar; -14-1500psi
ConnectionM20*1.5, 1/4NPT, 1/4BSP, 1/2NPT, 1/2BSP Female.Please confirm 1 or 2 thread type from above.
Dimension400*262*170mm
Weight5.5kg
AccessoriesUser’s manual, Plugs, O rings
PackageCarton box + Thicken foam (Aluminum or Trolley case are optional and cost extra)
ShippingBy air express
