CMS-SIGNALTOWER-DMB
CMS Signal Tower
Visual and audible alarm status for critical monitoring
The signal tower extends the alarm capabilities of the viewLinc Continuous Monitoring System (CMS) by providing clear visual and audible status indicators. Signal towers communicate alarm severity instantly, helping teams respond faster and maintain compliance.
Designed for GxP facilities, cleanrooms, warehouses, and laboratories, and production areas, the towers integrate seamlessly with viewLinc Enterprise Server Software using built-in templates for alarm types, color logic, and sound. All options support easy installation, indoor use, and IP54 protection (IP20 for stationary models).
viewLinc Enterprise Server Software
Ideal For:
GxP cleanrooms
Pharmaceutical, biotech and medical device production
Warehouses and cold storage
Hospitals and healthcare facilities
Critical applications needing wide-area alarm coverage
Key Benefits
Clear, Alarm Threshold Visibility
Multi-color LED indicators for High, Medium, and Low alarm priorities
Configurable placement (upright or inverted) for wall, ceiling, or surface mounting
Color-band positioning supports personnel with color-blindness
Visible from long distances to support fast alarm recognition and response
Configurable Audible Alerts
Select from 11 sound patterns
Optional audible alarms for each priority level
Control sound behavior when alarms are acknowledged (continue or stop)
Adjustable duration: continuous or repeating 5-second bursts
Maximum sound level 85 dB
Easy Integration with viewLinc
Use viewLinc templates for fast tower setup
Select which Zones or Locations trigger tower alarms
Configure for threshold, device, or system alarms
Power Supply Options:
Power over Ethernet (PoE): Simplifies installation by delivering both power and data over a single network cable.
External Power Supply: Where PoE is not available, the signal tower can be powered using a standard external power supply.
Gallery
Mounting options

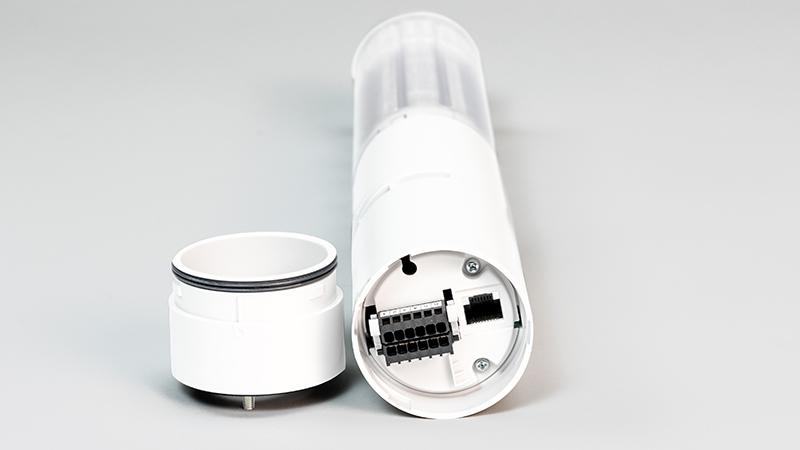

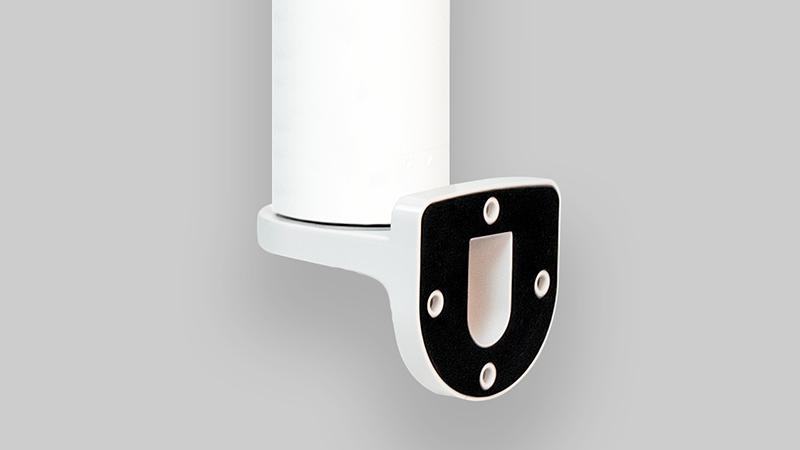

CMS-SIGNALTOWER-DMB (Direct Mount with Bracket)
For ceiling or wall mounting. The wall bracket is perfect for installations where the network cable is routed through a wall into the light tower. This option is recommended for applications where local silencing of alarms is not required.
CMS-SIGNALTOWER-SMB (Stationary Mount with Bracket)
For wall mounting at eye level, making it easy to see status indicators. This configuration is suitable for applications where local silencing of alarms is required.
CMS-SIGNALTOWER-SM (Stationary Mount)
Mounted as a freestanding unit or securely fastened to a table or other surface in an upright position, offering maximum flexibility for desktop or benchtop applications.
