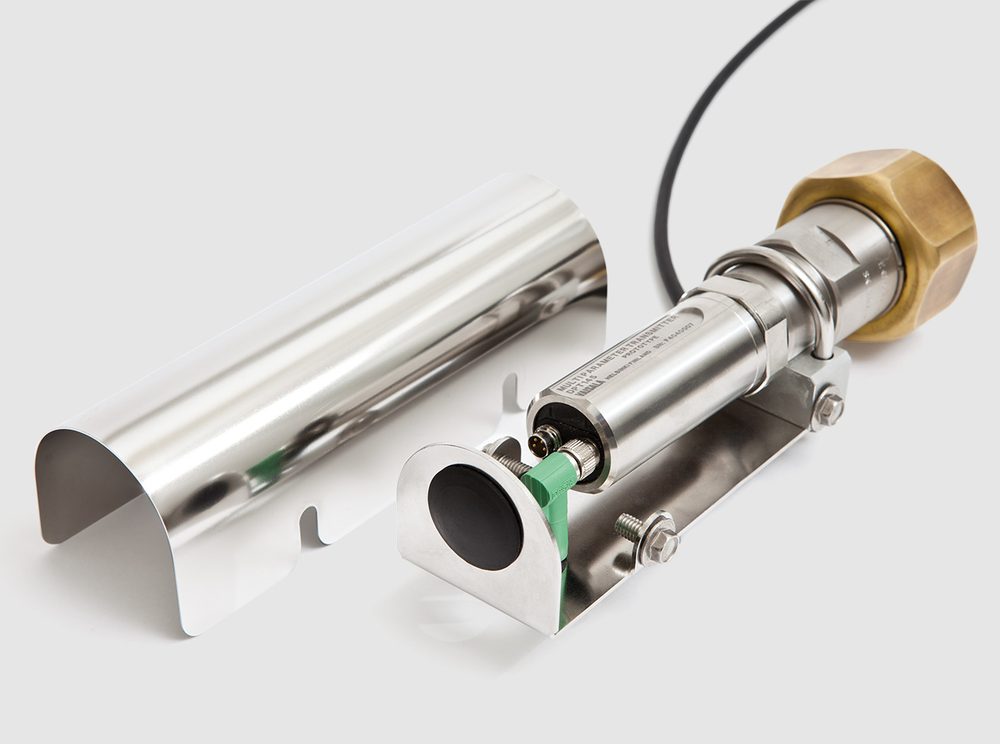

DPT145
Multiparameter transmitter for SF6 gas in switchgear
An online transmitter delivering seven SF6 gas parameters in a single unit: it measures dew point, pressure and temperature, and calculates density, normalized pressure, dew point at atmospheric pressure and ppm. It combines Vaisala's DRYCAP® and BAROCAP® sensors to detect leaks and moisture issues in the insulation without releasing SF6 into the atmosphere. Discontinued by Vaisala — not to be specified for new projects; contact an AKRIBIS specialist for support of existing installations and the recommended replacement.
Technical specifications
- Measured parameters
- Punto de rocío -60…+30 °C; presión absoluta 1–12 bar; temperatura -40…+80 °C
- Calculated parameters
- Densidad de SF6 o SF6/N2 (0–100 kg/m³), presión normalizada a +20 °C, punto de rocío a presión atmosférica, humedad en ppm (40–40.000)
- Stability
- Deriva típica de punto de rocío < 2 °C en 5 años; presión < 1 %FS en 5 años
- Mechanical connection
- DILO DN20, DILO DN8, ABB Malmquist o Alstom G1/2" — cada conexión probada con helio en fábrica
- Outputs
- RS-485 (protocolo Vaisala o Modbus RTU)
- Materials and rating
- AISI 316L; IP66 (con protector de intemperie para instalación exterior continua)
Key features
- Seven SF6 parameters in a single transmitter: fewer mechanical connections and lower leak risk
- Immediate leak detection through temperature-independent normalized pressure
- Early warning of moisture issues that degrade SF6 insulation
- No sampling: continuous monitoring without releasing SF6 into the atmosphere
- DRYCAP® and BAROCAP® technologies combined in the MPS1 multiparameter sensor
- Calibration interval of years, with integrated self-diagnostics
- Suited to redundant solutions and OEM integration
Typical applications
- SF6-insulated switchgear (GIS)
- Insulation condition monitoring in substations
- Online SF6 leak detection
- OEM integration into switchgear monitoring systems
- Support of existing DPT145 installations
