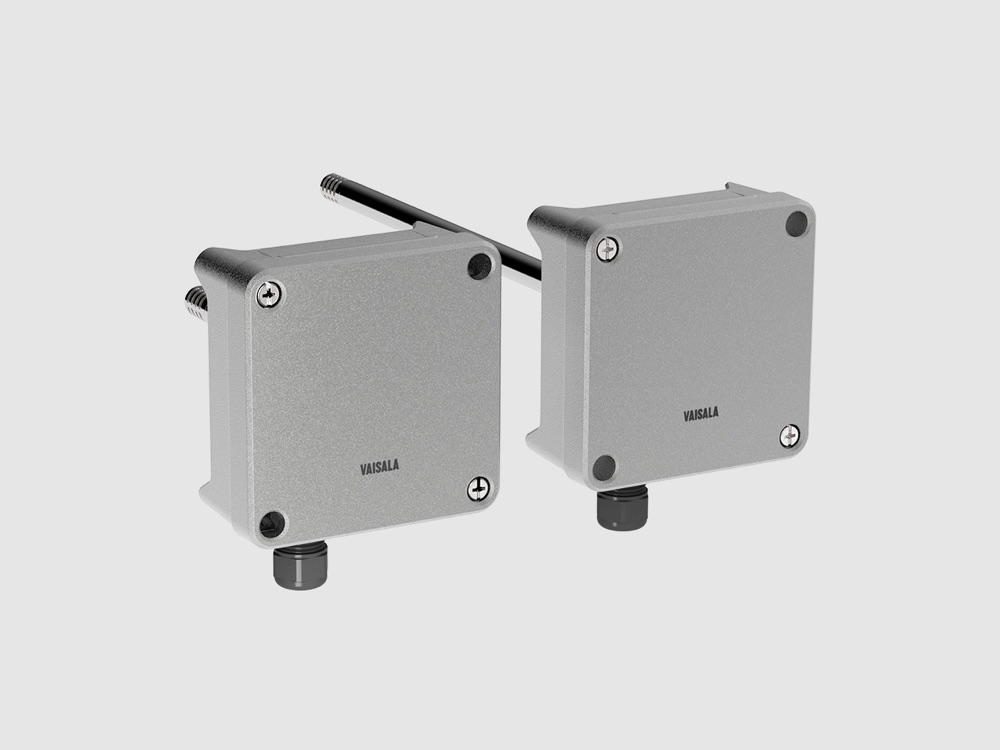

HMD60
Duct humidity and temperature transmitter for HVAC
A duct-mount transmitter for humidity and temperature measurement in demanding HVAC systems and building automation. HUMICAP® R2 sensor and Pt1000 element in an IP66 cast-aluminum housing with a stainless-steel probe. Parameter selection via DIP switches, with models offering analog output (HMD62) or digital BACnet MS/TP and Modbus RTU (HMD65).
Download datasheet (PDF)Technical specifications
- Humidity range
- 0–100 %HR
- Humidity accuracy (0…+40 °C)
- ±1,5 %HR (0–90 %HR); ±2,5 %HR (90–100 %HR)
- Temperature accuracy (+20 °C)
- ±0,1 °C
- Operating temperature (probe)
- -40 °C a +80 °C
- Housing rating
- IP66 (aluminio fundido, sonda de acero inoxidable)
- Outputs
- HMD62: 2× 4–20 mA; HMD65: 0–10 V + BACnet MS/TP + Modbus RTU
Key features
- HUMICAP® R2 sensor with Pt1000 temperature element
- IP66 cast-aluminum housing with stainless-steel probe
- Field-replaceable probe, in standard or short length to suit the duct
- DIP-switch parameter selection (dew point, enthalpy, wet bulb)
- BACnet MS/TP and Modbus RTU digital outputs (HMD65)
- Compatible with Vaisala Insight software via USB; traceable calibration included
Typical applications
- Commercial building HVAC systems
- Data centers
- Airports and metro systems
- Hospitals and life science facilities
- Building automation
