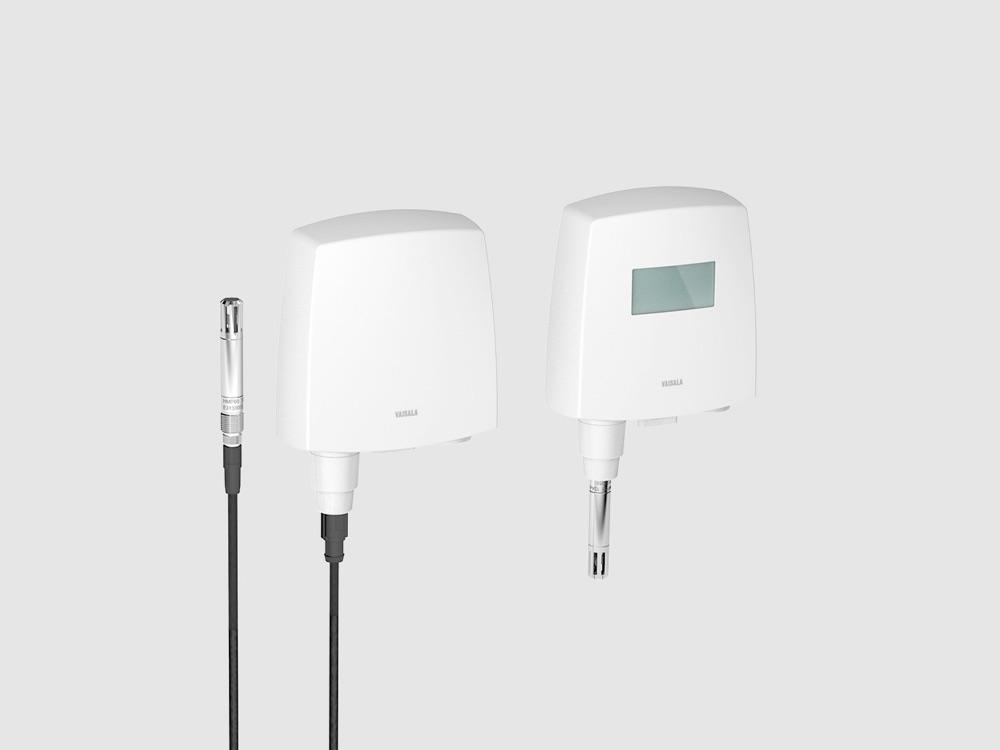

HMT120/130
Humidity and temperature transmitters with exchangeable probe for cleanrooms
Multi-purpose transmitters with an exchangeable measurement probe, designed for cleanrooms, laboratories, data centers and demanding HVAC applications. HUMICAP® 180R sensor with a NEMA4 enclosure suitable for wash-down areas, and a field-replaceable probe that allows recalibration without interrupting operation while maintaining traceability. The HMT120 provides a 4…20 mA output and the HMT130 a 0…10 V output.
Download datasheet (PDF)Technical specifications
- Humidity range
- 0–100 %HR
- Humidity accuracy (0…+40 °C)
- ±1,5 %HR (0–90 %HR); ±2,5 %HR (90–100 %HR)
- Temperature accuracy
- ±0,1 °C (+15…+25 °C)
- Operating temperature
- -40 °C a +60 °C (sin display); sonda remota hasta +80 °C
- Housing rating
- NEMA4 (apta para lavado)
- Outputs
- HMT120: 4–20 mA; HMT130: 0–10 V
Key features
- HUMICAP® 180R sensor resistant to dust and most chemicals
- Exchangeable measurement probe for field recalibration
- NEMA4 enclosure suitable for wash-down areas
- Wall, remote-probe or outdoor mounting (with radiation shield)
- Parameters: relative humidity, dew/frost point, wet bulb, enthalpy, absolute humidity, mixing ratio
- Traceable ISO 9001 calibration certificate included
Typical applications
- Pharmaceutical and life science cleanrooms
- Laboratories and hospitals
- Data centers
- Museums and archives
- HVAC systems in demanding environments
