Vaisala

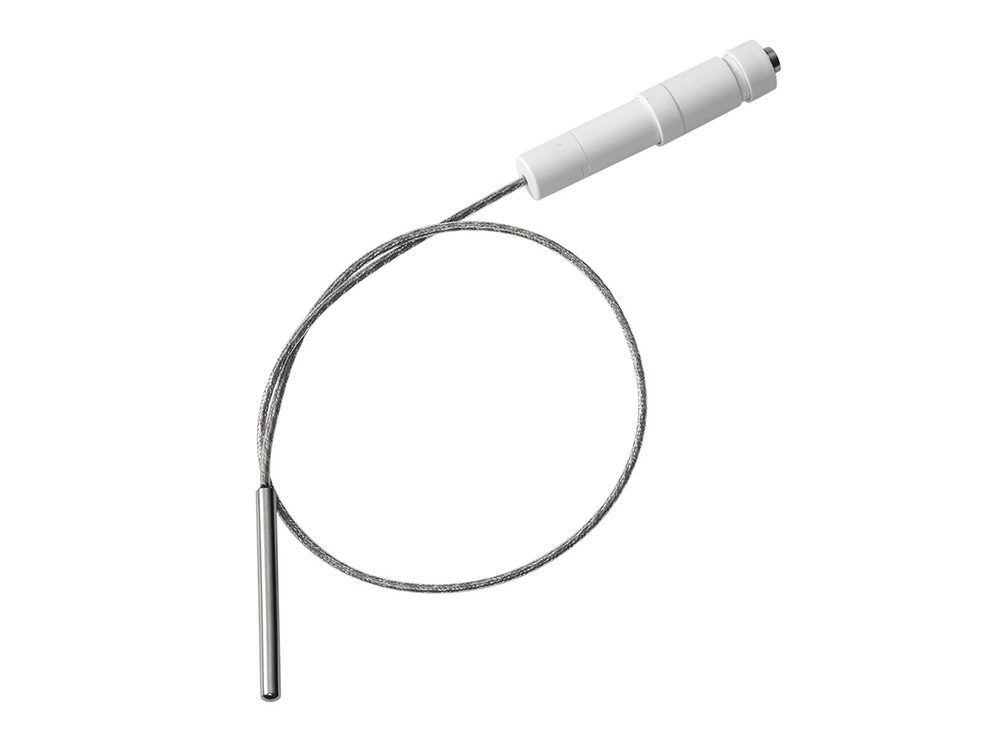

TMP115

Wide-range temperature probe for controlled environments

A wide-range temperature probe for temperature-controlled chambers, cryogenic applications, incubators, LN2 tanks, and blood and tissue banks. The sensor tip withstands immersion in glycol and liquid nitrogen, with a Pt100 RTD element of outstanding stability.

Download datasheet (PDF)

Specifications

Technical specifications

Measurement range: -196 °C a +150 °C
Sensor: Pt100 RTD clase A IEC 751
Accuracy (0 to +50 °C): ±0,25 °C
Housing rating: IP67 (punta del sensor); IP65 (cuerpo de la sonda)
Versions: 0,5 m y 3 m de largo (cuerpo + cable + punta)

Features

Key features

Measurement range from -196 °C to +150 °C
Stainless steel sensor tip that withstands immersion in glycol and liquid nitrogen

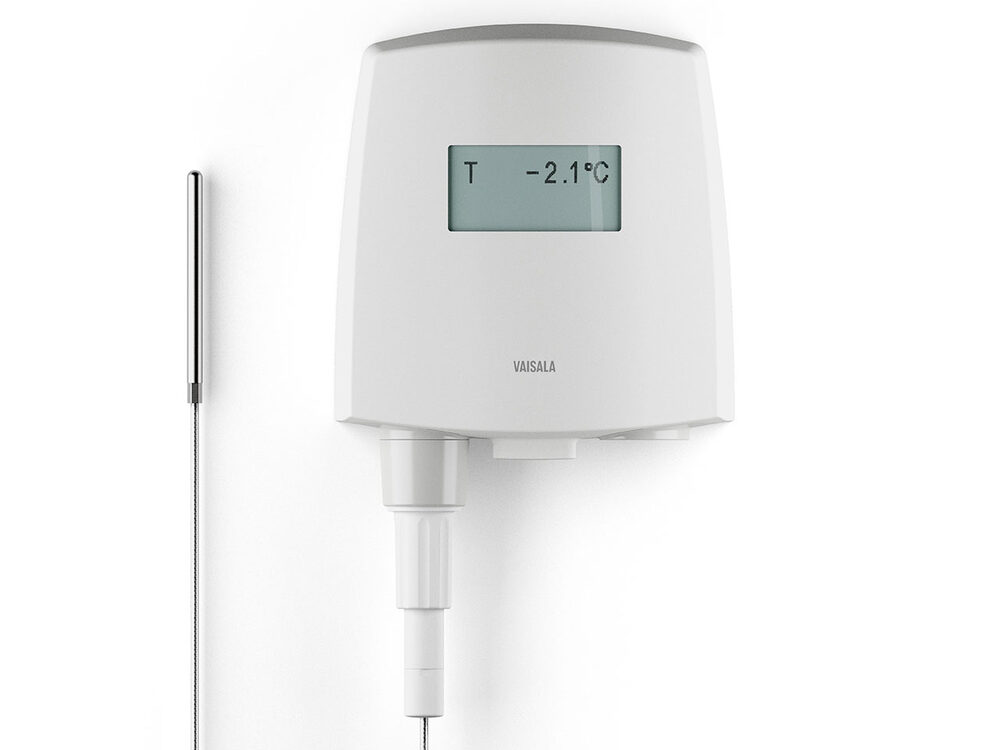

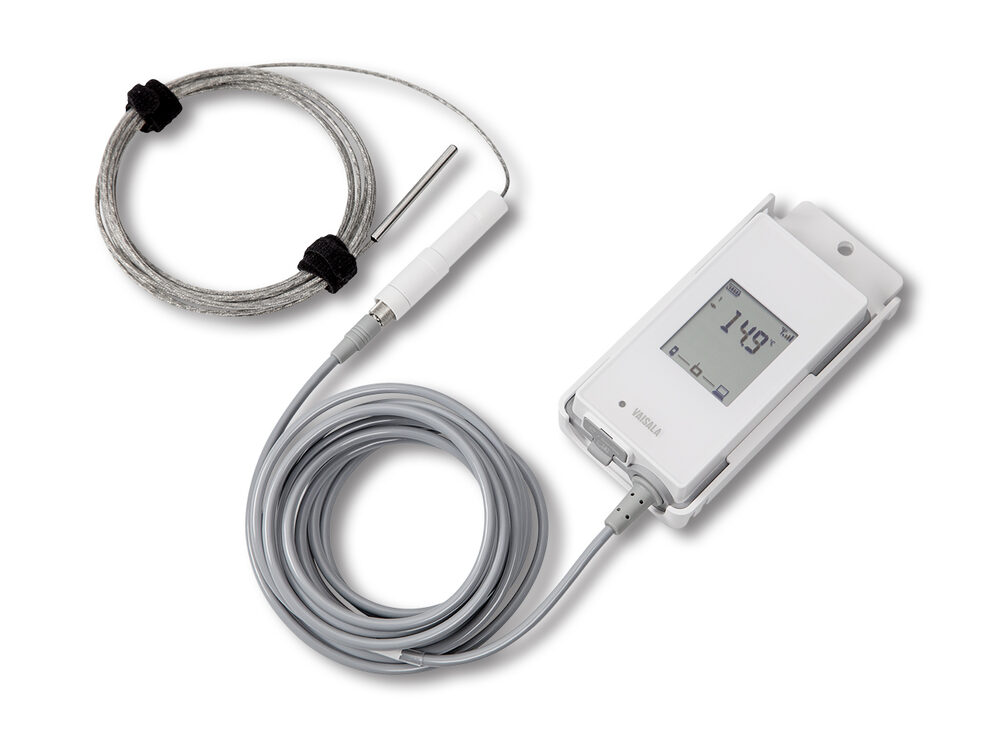

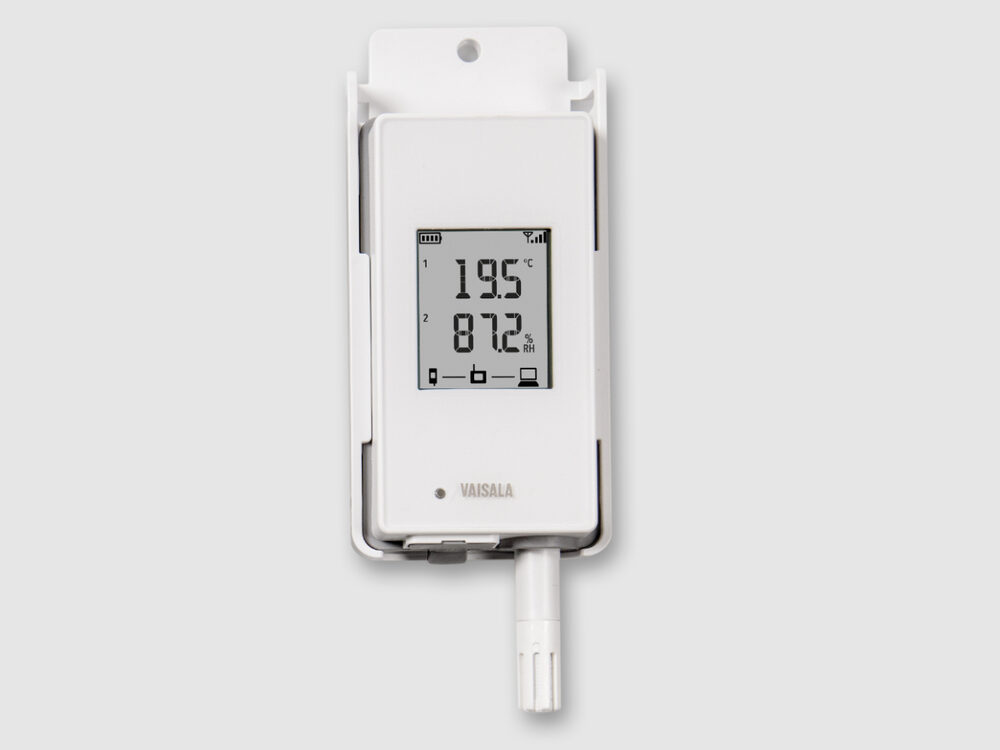

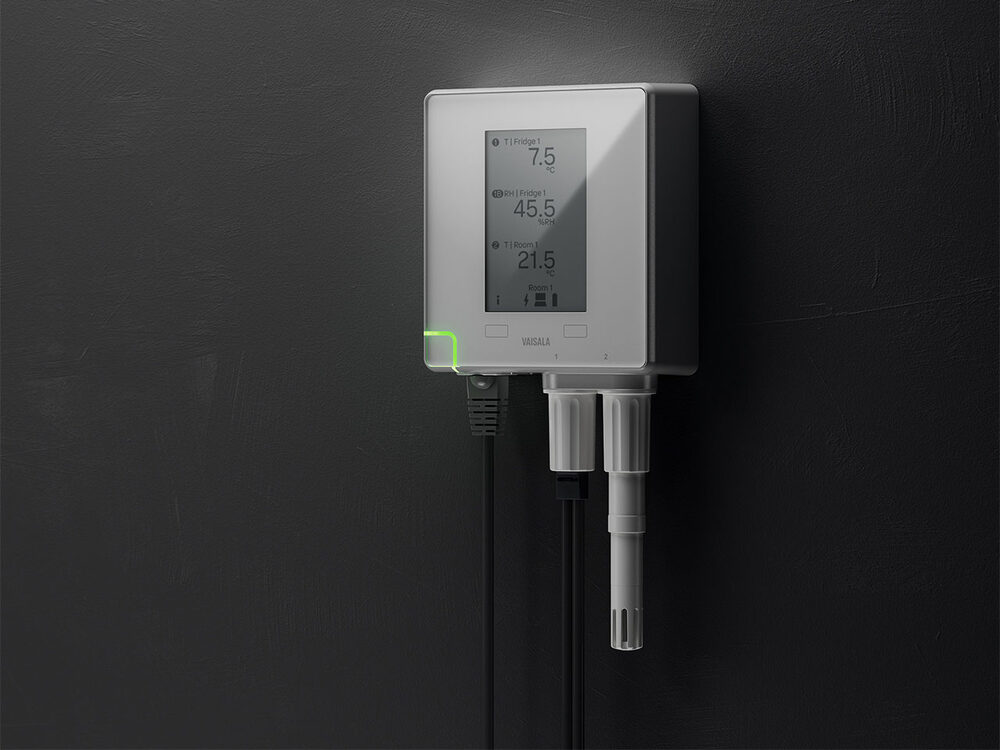

Works with RFL100, CWL100 and VDL200 data loggers and TMT120/130 transmitters
Standalone operation as a digital Modbus RTU transmitter over RS-485
Very low power consumption, suitable for battery-powered applications
Optional thermal dampener block (equivalent to 40 ml of glycol) and flat cables for door-seal routing
Traceable calibration certificate
